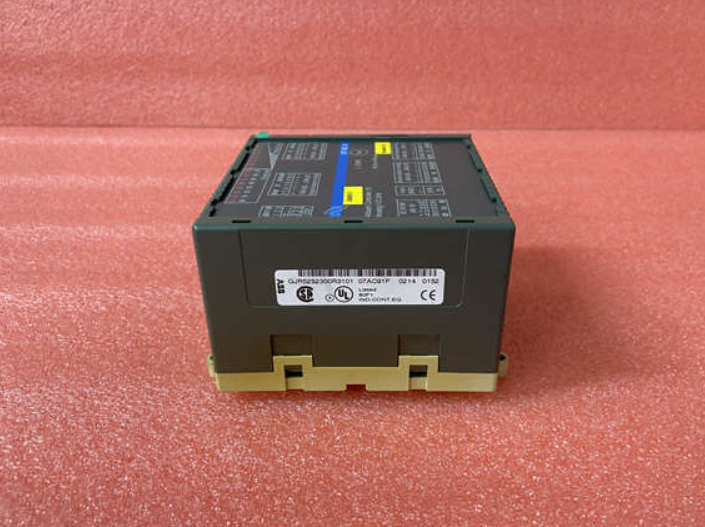

07AC91F 模拟量I/O模块 提供了许多诊断功能
【产品详情】
一般信息
- 扩展产品类型:
- 07AC91系列
- 产品编号:
- GJR5252300R0101
- ABB型号名称:
- 07AC91系列
- EAN:
- 4013614267666
- 目录说明:
- 07AC91:AC31,模拟量I/O模块
- 详细描述:
- 07AC91:AC31,模拟量I/O模块8AC,24VDC,AC:U/I,12bit+Sign,1-wire
模拟输入/输出模块07 AC 91作为一个
CS31系统总线上的远程模块。它包含16个
模拟输入/输出通道,可以配置在两种工作模式:
•工作模式“12位”:
8个输入通道,可单独配置
±10v或0…20ma, 12位分辨率+
8个输出通道,可单独配置
±10v或0…20ma, 12位分辨率
•工作模式“8位”:
16通道,可配置成对输入或输出,0…10V oder 0…20ma, 8位分辨率
•配置为DIL开关。
PLC提供了一个互连元件
ANAI4_20用于测量4…20ma(参考到907pc331,连接元素库)。
模块07 AC 91使用多达八个输入字CS31系统总线加最多8个输出字。在
工作模式“8位”,2个模拟值被装入一个词。机组工作电压为24v DC。的CS31系统总线连接在电气上与模块的其余部分。

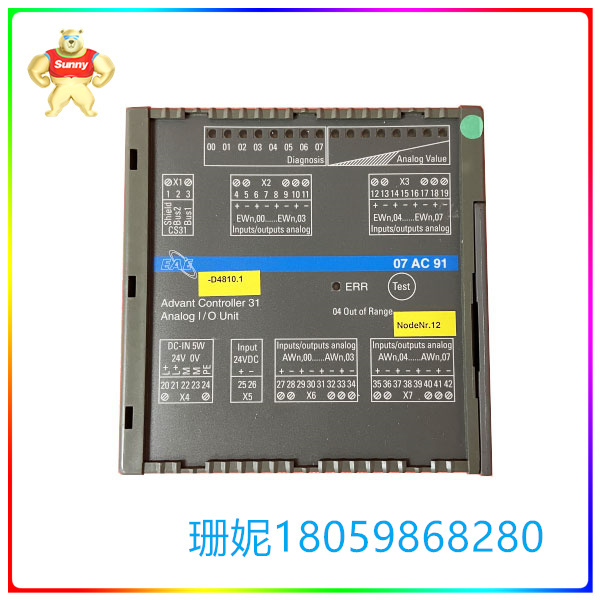

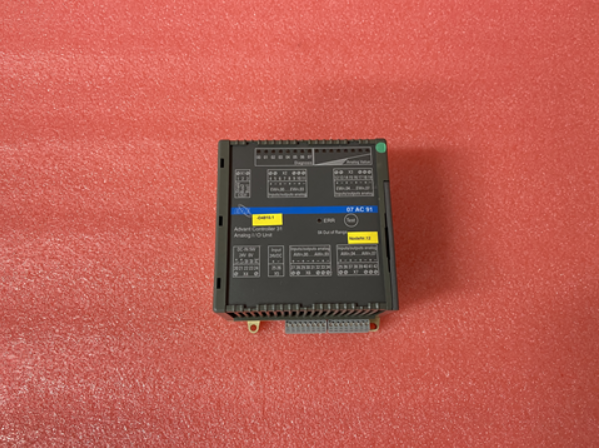

该模块提供了许多诊断功能(参见“诊断和显示”一章)。的显示和操作元素前面板18个绿色led用于通道选择和诊断2个绿色led用于通道模拟值显示
与led相关的诊断信息列表;用于诊断显示时4红色指示灯显示错误信息5测试按钮
07AC91F 模拟量I/O模块 提供了许多诊断功能
【英文介绍】
Analog input/output module 07 AC 91 as one
CS31 Remote module on the system bus. It contains 16
Analog input/output channels can be configured to work in two modes:
• Working mode "12 bits" :
8 input channels, configurable individually
±10v or 0... 20ma, 12 bit resolution +
8 output channels, can be configured separately
±10v or 0... 20ma, 12-bit resolution
• Working mode "8-bit" :
16 channels, configurable as input or output,0... 10V oder 0… 20ma, 8-bit resolution
• Configure the DIL switch.
The PLC provides an interconnect element
ANAI4_20 is used to measure 4... 20ma(refer to 907pc331, Connect Element Library).
Module 07 AC 91 uses up to eight input words CS31 system bus plus up to eight output words. in
Working mode "8-bit", 2 analog values are loaded into one word. Unit operating voltage is 24v DC. The CS31 system bus is electrically connected to the rest of the module.
This module provides a number of diagnostic capabilities (see the "Diagnostics and Displays" chapter). Front panel 18 green leds for channel selection and diagnosis 2 green leds for channel analog value display
A list of diagnostic information related to leds; Used for diagnostic display. 4 Red indicator displays error information. 5 Test button
07AC91F 模拟量I/O模块 提供了许多诊断功能
