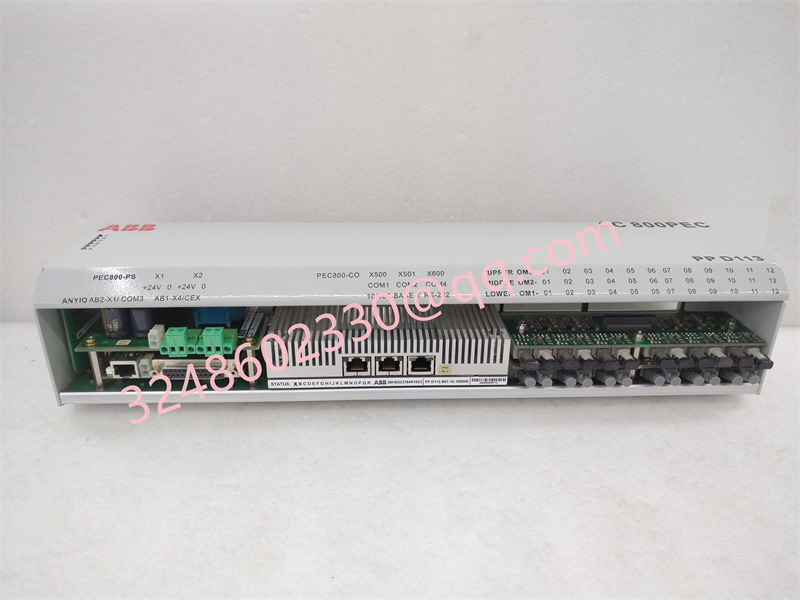

3BHE023784R2530 ABB 的 AC800PEC 控制器模块

 硬件架构与插槽配置

• 物理规格：采用紧凑设计，重量约为 4.2 千克，适用于各类工业控制系统的集成。
• 扩展能力：配备 6 个扩展插槽，具备高度的模块化扩展能力。具体出厂配置如下：
  • ANYIO-1 (U4)：支持 CEX2 总线 RS422 通信接口。
  • ANYIO-2 (U5)：支持 Anybus / Modbus TCP 和 RS422 通信接口。
  • Mod 1~3 (U7-U9)：预装 3 个 UFD128 模块。
  • Mod 4~6 (U10-U12)：预留 3 个空置插槽，供用户后续按需扩展。

 核心功能与应用场景

• 数据处理与控制：具备强大的处理能力，主要用于数据采集、协议转换和外围设备连接，能够执行复杂的实时过程控制任务。
• 典型应用领域：广泛应用于电力（如变电站自动化、发电机组）、石化、冶金等行业的自动化控制系统与安全控制系统中，保障生产过程的连续性和安全性。

 通讯与系统集成

• 多协议兼容：支持多种主流工业通信协议（包括 Ethernet、Profibus、Modbus TCP/IP 等），可与现场设备和其他控制系统进行无缝数据交换。
• 安全与冗余：支持安全转矩停止（STO）以及过流/过压保护功能；同时支持冗余设计，确保在系统发生故障时仍能继续稳定运行。
• 软件适配：需确保 Control Builder M 或 System 800xA 平台版本与控制器固件之间的兼容性。

 环境适应性

• 高可靠性：专为苛刻的工业环境设计，耐受宽温度范围（-40°C 至 +85°C），能够有效抵抗高温、振动和电磁干扰，确保长期稳定运行。

A AC800PEC controller module produced by ABB (complete model PPD113B01-25-111000). This device is a multifunctional industrial automation component mainly used in static excitation systems (such as UNITOL 6000 X-power) and various industrial control systems.

Hardware architecture and slot configuration

Physical specifications: Adopting a compact design, weighing approximately 4.2 kilograms, suitable for integration of various industrial control systems.

Expansion capability: Equipped with 6 expansion slots, it has a high degree of modular expansion capability. The specific factory configuration is as follows:

ANYIO-1 (U4): Supports CEX2 bus RS422 communication interface.

ANYIO-2 (U5): Supports Anybus/Modbus TCP and RS422 communication interfaces.

Mod 1-3 (U7-U9): Pre installed with 3 UFD128 modules.

Mod 4-6 (U10-U12): Reserve 3 vacant slots for users to expand as needed in the future.

Core functions and application scenarios

Data processing and control: With powerful processing capabilities, it is mainly used for data acquisition, protocol conversion, and peripheral device connection, and can perform complex real-time process control tasks.

Typical application areas: Widely used in automation control systems and safety control systems in industries such as power (such as substation automation, generator sets), petrochemicals, metallurgy, etc., to ensure the continuity and safety of the production process.

Communication and System Integration

Multi protocol compatibility: Supports multiple mainstream industrial communication protocols (including Ethernet, Profibus, Modbus TCP/IP, etc.), allowing seamless data exchange with field devices and other control systems.

Safety and redundancy: Supports safe torque stop (STO) and overcurrent/overvoltage protection functions; Simultaneously supporting redundant design to ensure stable operation in the event of system failure.

Software adaptation: It is necessary to ensure compatibility between the Control Builder M or System 800xA platform version and the controller firmware.

environmental adaptability

High reliability: Designed specifically for harsh industrial environments, it can withstand a wide temperature range (-40 ° C to+85 ° C), effectively resist high temperatures, vibrations, and electromagnetic interference, ensuring long-term stable operation.
