8440-1860 有十几个不同的参数设置

【产品详情】

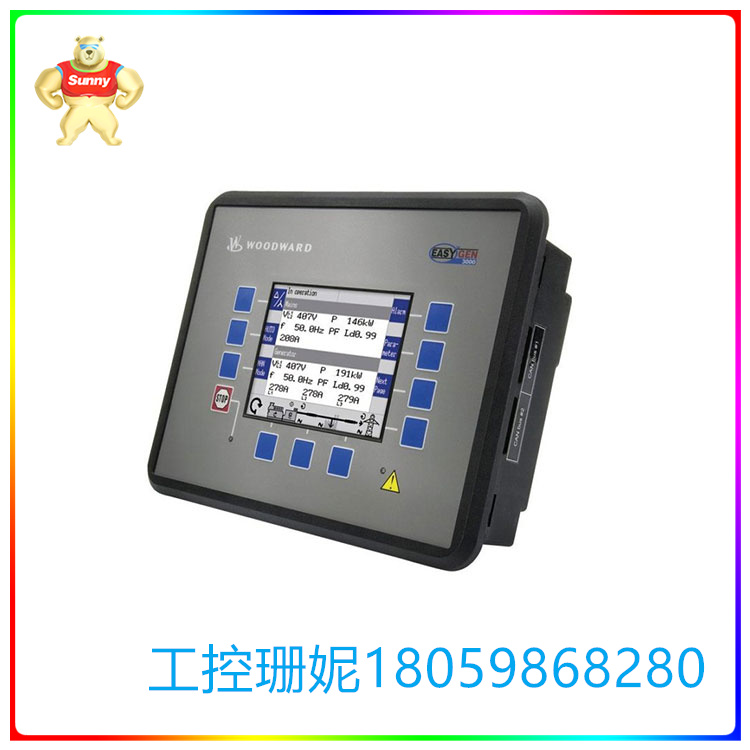

由伍德沃德制造的EasyGen 2000系列。控制型号8440-1860可以通过螺钉组件安装，当使用螺钉组件安装时，必须在单元上钻孔，以便将其插入面板开孔。

当连接控制有十几种电线尺寸可以使用，如果使用21 AWG电线的平方毫米的电线将等于。38。使用的电线只是一个例子，因为许多不同的电线可以用于所有不同的控件。

控制上有十几个不同的参数设置，三相，四线制参数(3Ph 4W)有发电机绕组应分配的特定端子。有些相也属于终端。端子14、16、18和20分别与L1、L2、L3和n相排列，这些端子接线时的额定电压范围为50- 130v，但具体为120v。将在3Ph 4W读取的最大测量范围位于0-150 Vac的范围内。请注意，当使用不同的电压系统时，系统上的接线端子可能必须更改为当前测量电压。

如果您想询问此型号的可用性和价格，请通过电话或电子邮件与我们的销售部门联系。

8440-1860 有十几个不同的参数设置

【英文介绍】

EasyGen 2000 series manufactured by Woodward. Control models 8440-1860 can be installed by screw assembly, when mounting with screw assembly, the unit must be drilled in order to ｉｎｓｅｒｔ it into the panel opening.

When the connection control has more than a dozen wire sizes available, if using 21 AWG wire the square millimeter of wire will equal. Thirty-eight. The wires used are just one example, as many different wires can be used for all the different controls.

There are more than a dozen different parameter Settings on the control, three-phase, four-wire system parameters (3Ph 4W) have specific terminals that the generator windings should be assigned. Some phases are also terminal. Terminals 14, 16, 18, and 20 are arranged with L1, L2, L3, and n respectively, and the rated voltage range for these terminals is 50-130v, but specifically 120v. The maximum measurement range that will be read at 3Ph 4W is in the range of 0-150 Vac. Note that when using a different voltage system, the terminal on the system may have to be changed to the current measured voltage.

If you would like to inquire about the availability and pricing of this model, please contact our sales department by phone or email.

8440-1860 有十几个不同的参数设置
