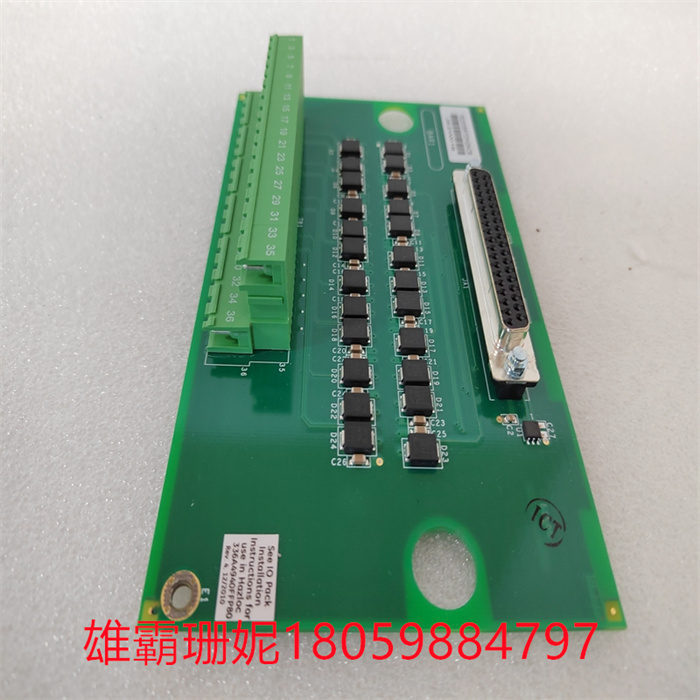

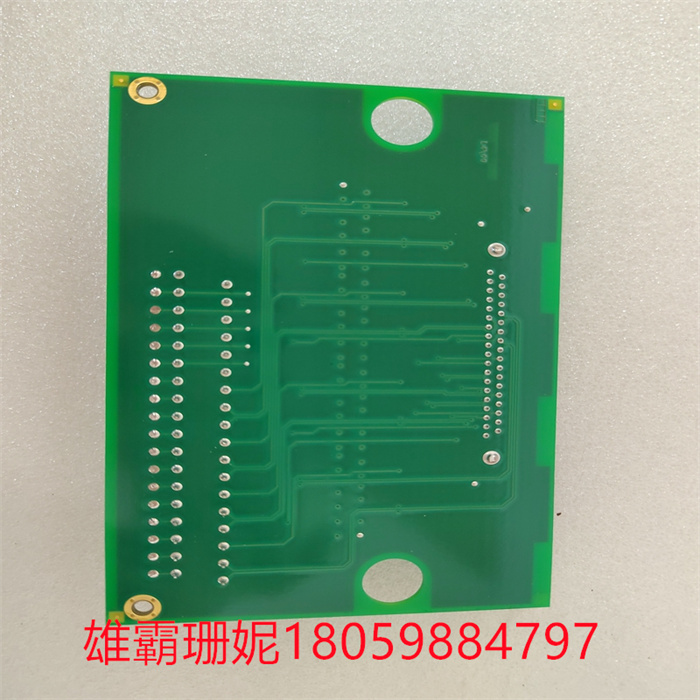

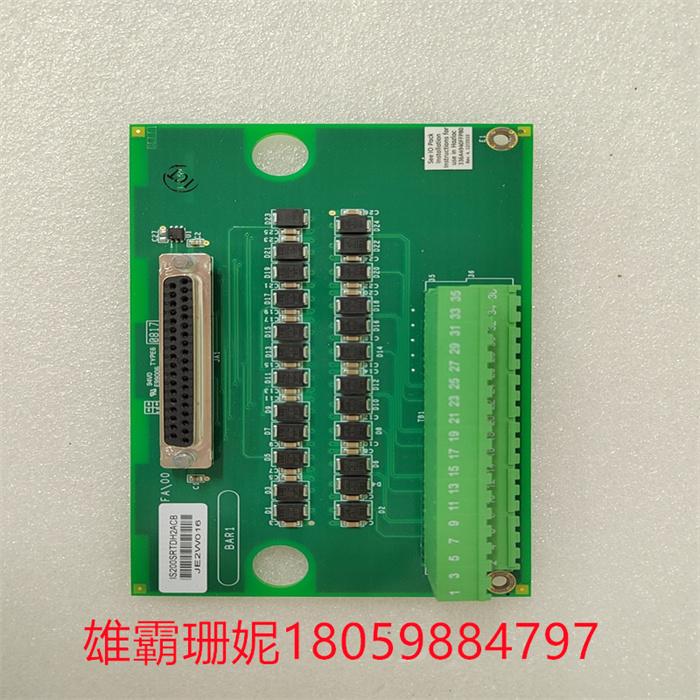

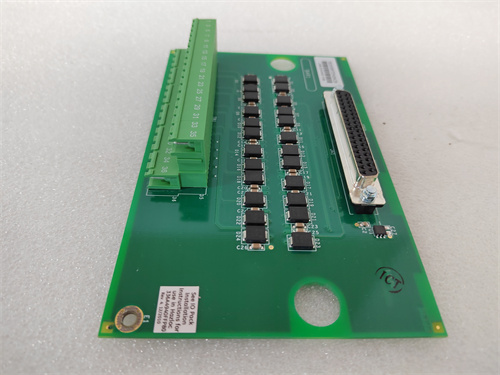

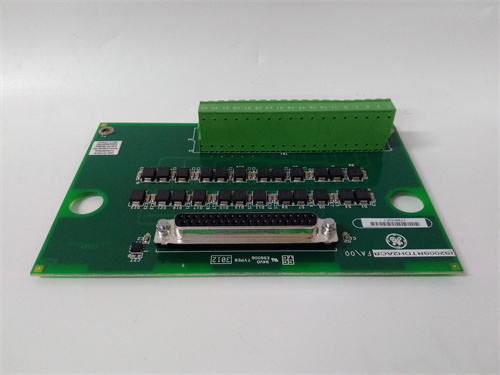

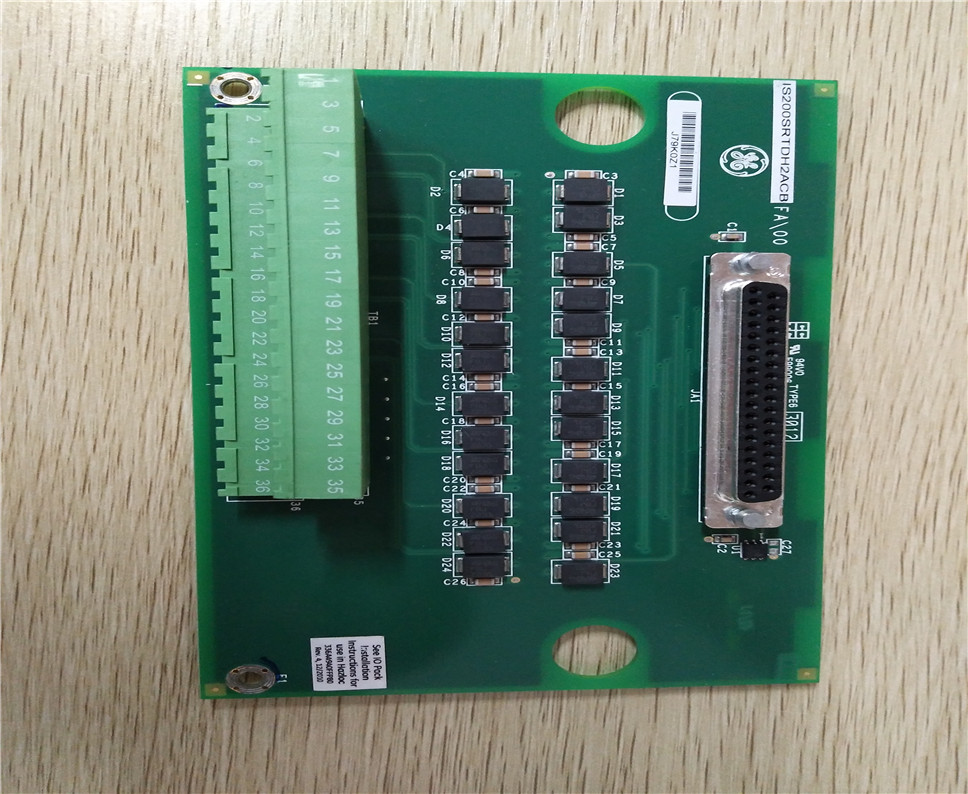

IS200SRTDH2ACB是一种印刷电路板或PCB，由通用电气或GE创建，属于Mark VI系列。Mark VI是通用电气Mark系列的最新版本。Mark VI和Mark系列中的其他系列开发用于管理和自动化燃气和蒸汽轮机系统的过程。这些被用于全球许多不同的行业。 IS200SRTDH2ACB是一块相对较小的印刷电路板，其电子元件的尺寸各不相同。两(2)个大型接线端子位于IS200SRTDH2A的底部边缘，一个在另一个的顶部。每个端子块包含十八(18)个端子，总共三十六(3)个端子。这些包含在接线端子内的银色金属端子用白色字体从一(1)到三十六(36)编号。一(1)个大连接器端口连接到IS200SRTDH2ACB的上边框。此连接器端口用于将额外组件或其他板连接到IS200SRTDH2ACB。IS200SRTDH2ACB的中心被一组二极管和电容器占据。二极管的形状像黑色矩形。有二十四个二极管，它们被分成两(2)水平行，每行十二(12)个二极管。坐在这些二极管中的每一个旁边的是一(1)个或两(2)个矩形的小电容器。器件的完整部件名称IS200SRTDH2ACB已印在IS200SRTDH2ACB的左上角。GE的符号已印在此零件号下方的电路板上。

 GE IS200SRTDH2ACB 通用电气模块

IS200SRTDH2ACB is a printed circuit board or PCB, which was founded by General Electric or GE and belongs to Mark VI series. Mark VI is the latest version of GE's Mark series. Mark VI and other series in the Mark series develop processes for managing and automating gas and steam turbine systems. These are used in many different industries around the world. IS200SRTDH2ACB is a relatively small printed circuit board with different electronic components. Two (2) large terminals are located at the bottom edge of IS200SRTDH2A, one at the top of the other. Each terminal block contains eighteen (18) terminals, totaling thirty-six (3) terminals. These silver metal terminals contained in the terminal are numbered from one (1) to thirty-six (36) in white font. One (1) large connector port is connected to the top frame of IS200SRTDH2ACB. This connector port is used to connect additional components or other boards to IS200SRTDH2ACB. The center of IS200SRTDH2ACB is occupied by a set of diodes and capacitors. The diode is shaped like a black rectangle. There are twenty-four diodes, which are divided into two (2) horizontal rows with twelve (12) diodes in each row. Sitting next to each of these diodes is one (1) or two (2) small rectangular capacitors. The complete part name of the device is200srttdh2acb has been printed in the upper left corner of is200srttdh2acb. The symbol of GE has been printed on the circuit board under this part number.
