GE 850-E-P5-NN-S5 电动机保护继电器

核心定位与应用

 硬件与接口配置

• 前面板：配备全彩色 GCP（图形控制面板），方便用户读取关键测量值；面板下方设有导航键、LED 状态指示灯以及前置 USB 端口，便于轻松连接。
• 后面板：提供丰富的接口访问，包括数字 I/O、模拟 I/O、CT 和 VT 输入、光纤端口、电源模块，以及串行和 RJ45 以太网模块。
• 系统规格：通常为 5A 系统，设计有 5 安培三相电流输入和接地输入；额定电源电压为 110-250 VDC 或 110-230 VAC。

 通信与控制功能

• 通信协议：支持 Modbus RTU、TCP/IP 通信，以及 IEC 61850 和 IEC 62439/PRP 标准。
• 控制逻辑：内置冷负载拾取、自动转换方案和自动重合闸等高级控制功能。
• 诊断与维护：具备先进的诊断能力、状态监测和预防性维护报告功能。

 制造与环境标准

• 采用标准严酷保形涂层，符合 IPC A-610-E 3 级制造标准。
• 防护等级达到 IP54。
• 采用无电解电容器电源设计，且支持现场可插拔，便于维护。

Core positioning and application

The Multilin 850 is designed for primary or backup protection of overhead or underground medium voltage feeders. Although you mentioned 'motor protection', this series usually covers multiple medium voltage protection functions, and the specific details need to be based on the actual equipment manual.

Hardware and interface configuration

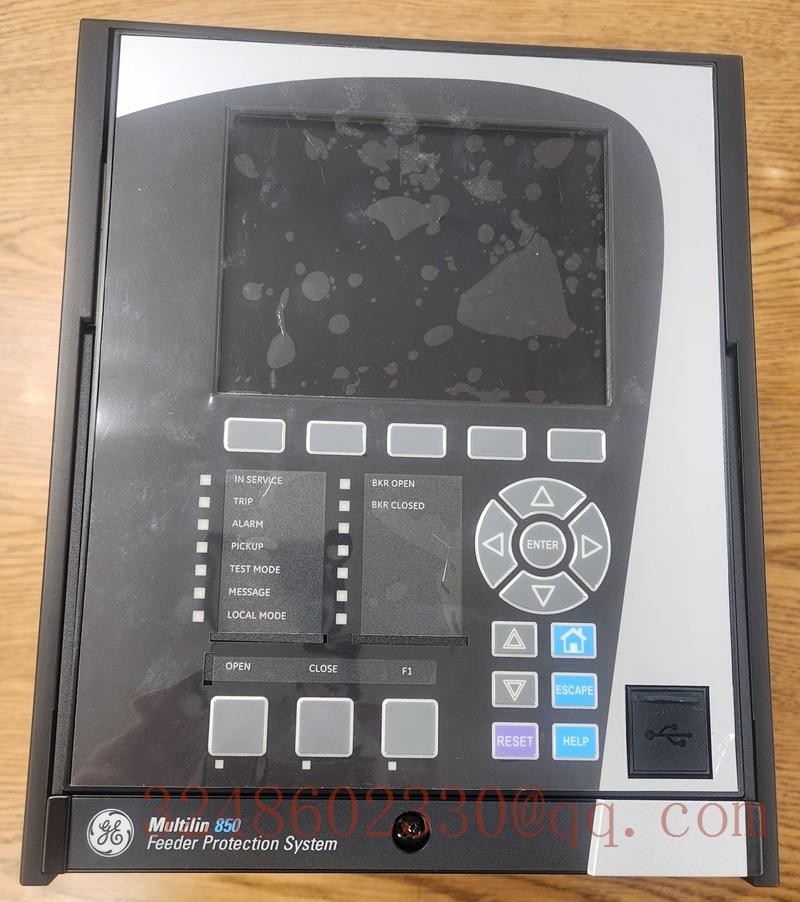

Front panel: equipped with full-color GCP (graphical control panel), convenient for users to read key measurement values; There are navigation keys, LED status indicators, and a front USB port located below the panel for easy connection.

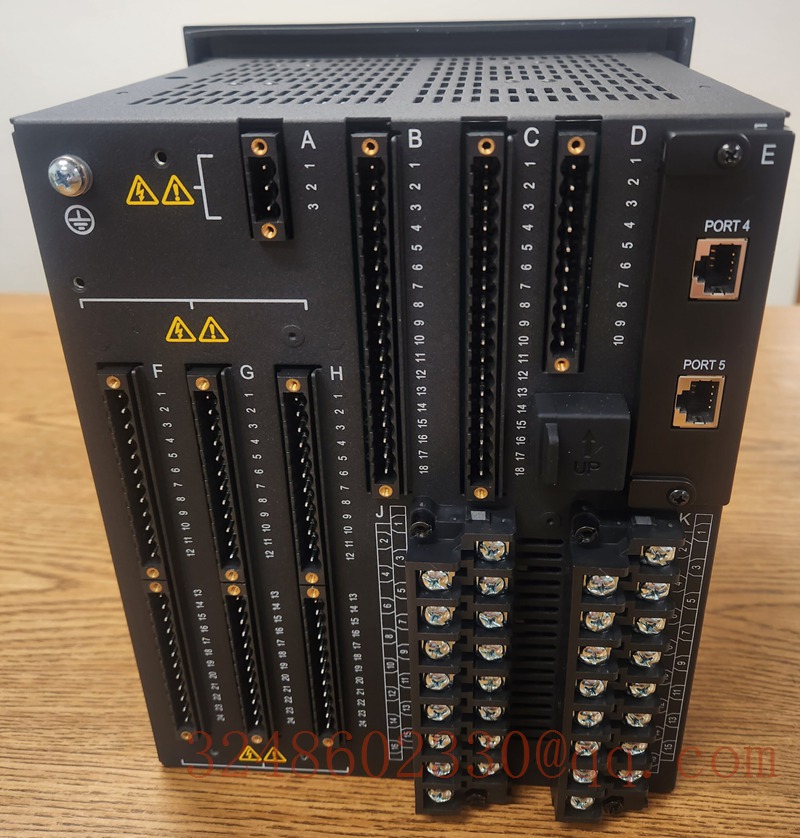

Rear panel: Provides rich interface access, including digital I/O, analog I/O, CT and VT inputs, fiber ports, power modules, as well as serial and RJ45 Ethernet modules.

System specifications: Typically a 5A system, designed with a 5A three-phase current input and a ground input; The rated power supply voltage is 110-250 VDC or 110-230 VAC.

Communication and control functions

Communication protocol: Supports Modbus RTU, TCP/IP communication, as well as IEC 61850 and IEC 62439/PRP standards.

Control logic: Built in advanced control functions such as cold load picking, automatic conversion scheme, and automatic reclosing.

Diagnosis and maintenance: Equipped with advanced diagnostic capabilities, status monitoring, and preventive maintenance reporting functions.

Manufacturing and Environmental Standards

Adopting a standard strict conformal coating that complies with IPC A-610-E Level 3 manufacturing standards.

The protection level reaches IP54.

Adopting an electrolytic capacitor power supply design and supporting on-site plug and play for easy maintenance.
