一、基本信息
- 型号：IS420ESWBH1A（ESWx 系列）
- 品牌：GE（通用电气）
- 所属系统：Speedtronic Mark VIe / VIeS 燃机 / 汽机控制系统
- 类型：工业以太网交换机（IONet Switch）
功能定位：Mark VIe 系统核心网络枢纽，连接控制器、I/O 站、HMI、上位系统
二、硬件规格
- 端口：
- 16×10/100Base‑TX RJ45 电口（10/100Mbps 自适应）
- 1×100Base‑FX 多模光纤口（LC 接头），用于长距 / 抗干扰上联
- 电源：24VDC 冗余双输入，背板供电
- 安装：DIN 导轨 / 面板安装，支持平行或垂直安装
- 环境：
- 工作：0°C ~ +60°C
- 存储：‑40°C ~ +85°C
- 缓冲：256KB，支持 4K MAC 地址
协议：IEEE 802.3/802.3u/802.3x，自动协商、全 / 半双工
三、核心作用（在 Mark VIe 里）
- IONet 实时网络交换：连接 UCS 控制器（如 IS420UCSDH1A）、I/O 模块、保护板卡。
- 冗余与容错：支持双网 / TMR 三模冗余，匹配 Mark VIe 控制器冗余架构。
- 高速实时通信：保证燃机 / 汽机毫秒级控制数据、保护信号、状态信息可靠传输。
系统扩展：通过光纤口上联中控 / 数据中心，电口下联现场 I/O 与 HMI。
四、对比
- IS420ESWBH1A（GE）：网络交换机，Mark VIe 系统专用，负责控制器‑I/O‑上位机数据交换，不做逻辑控制。
- 8440‑1831（WOODWARD）：发电机并机控制器，独立完成同步、负载分配、保护。
- HC800 / PCD230（ABB）：DCS / 励磁控制器，负责过程控制、励磁调节、闭环运算。
1、 Basic Information
Model: IS420ESWBH1A (ESWx series)
Brand: GE (General Electric)
System: Speedtronic Mark VIe/VIeS Gas/Steam Turbine Control System
Type: Industrial Ethernet Switch (IONet Switch)
Functional positioning: Mark VIe system core network hub, connecting controllers, I/O stations HMI、 upper-level system

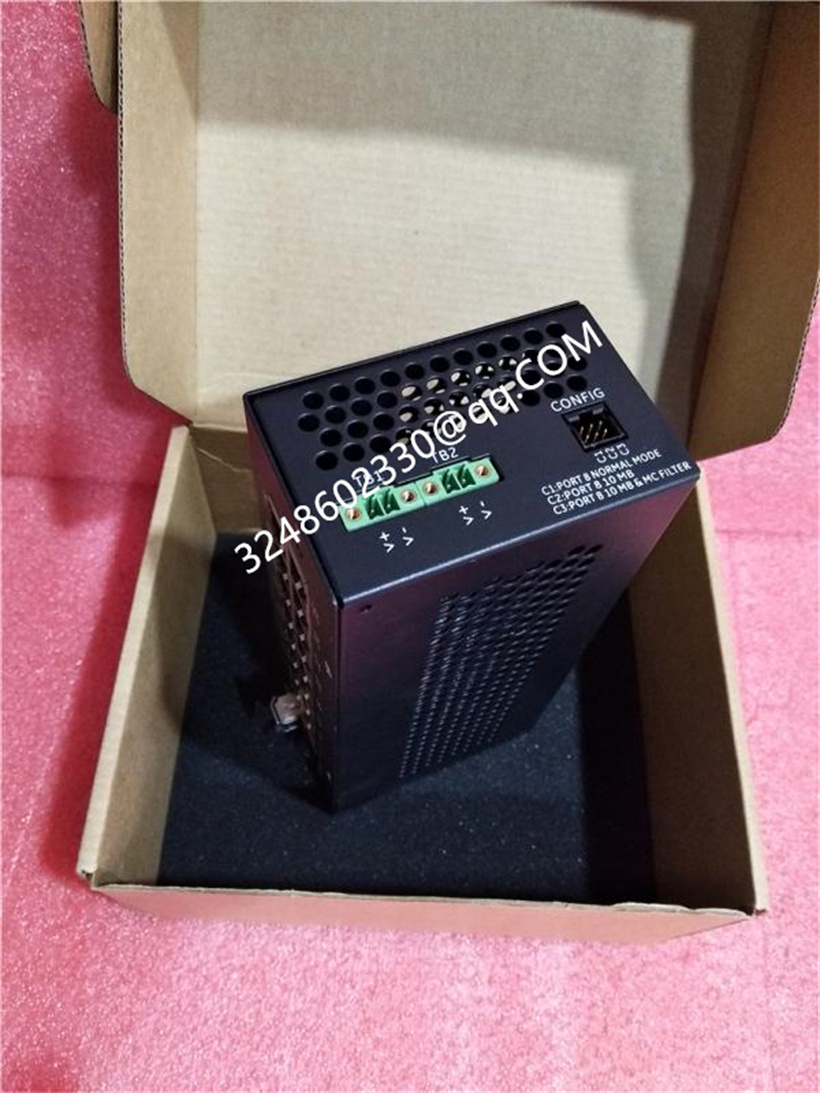

IS420ESWBH1A.2_ Copy. jpg
2、 Hardware specifications
port
16 × 10/100Base TX RJ45 electrical port (10/100Mbps adaptive)
1 × 100Base FX multimode fiber port (LC connector), used for long-distance/anti-interference uplink connection
Power supply: 24VDC redundant dual input, backplane power supply
Installation: DIN rail/panel installation, supports parallel or vertical installation
environment
Work: 0 ° C~+60 ° C
Storage: -40 ° C~+85 ° C
Buffer: 256KB, supports 4K MAC addresses
Protocol: IEEE 802.3/802.3u/802.3x, auto negotiation, full/half duplex
3、 Core role (in Mark VIe)
IONet real-time network exchange: connects UCS controllers (such as IS420UCSDH1A), I/O modules, and protection boards.
Redundancy and fault tolerance: support dual network/TMR the third mock examination redundancy and match Mark VIe controller redundancy architecture.
High speed real-time communication: ensuring reliable transmission of millisecond level control data, protection signals, and status information for gas turbines/steam turbines.
System expansion: Connect to the central control/data center through fiber optic ports, and connect to on-site I/O and HMI through electrical ports.
4、 Comparison
IS420ESWBH1A (GE): Network switch, Mark VIe system specific, responsible for controller I/O upper computer data exchange, not logic control.
8440-1831 (WOODWARD): Generator parallel controller, independently completes synchronization, load distribution, and protection.
HC800/PCD230 (ABB): DCS/excitation controller, responsible for process control, excitation regulation, and closed-loop operation.
