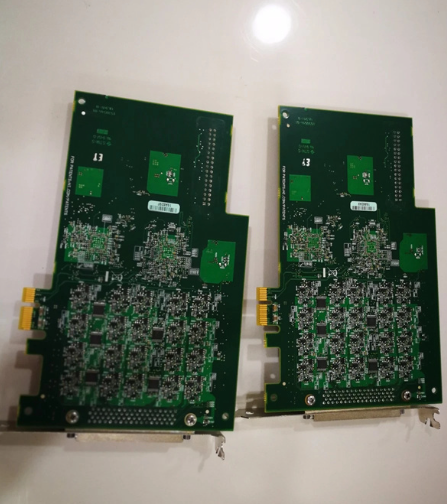

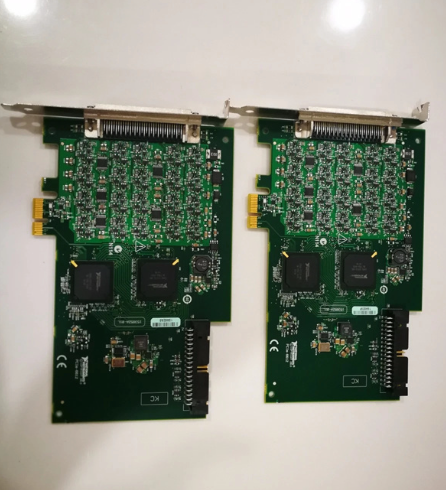

PCIE-6612 高速数据采集卡 能够在复杂的测试系统中实现精确的数据采集和同步

☆型号：PCIE-6612 高速数据采集卡 能够在复杂的测试系统中实现精确的数据采集和同步

【产品详情】

PCIE-6612是一款由National Instruments（美国国家仪器）生产的PCIe-based高速数据采集卡。这款采集卡专为要求严苛的测试和测量应用而设计，如国防、航空航天、通信和半导体测试等。

PCIE-6612具有12个模拟输入通道，采样率高达250 MS/s，并且每个通道都支持高达100 MHz的带宽。这使得它能够捕获高速、高精度的信号，为工程师和科研人员提供了准确的数据采集和分析能力。

此外，PCIE-6612还具有灵活的触发和同步功能，可以与其他National Instruments的PCIe数据采集设备或NI-DAQmx兼容的硬件进行同步。这使得它能够在复杂的测试系统中实现精确的数据采集和同步。

PCIE-6612还提供了丰富的I/O接口，包括PCIe x8接口、两个64-bit DDR3 SO-DIMM插槽（支持高达16 GB的板载内存）、一个USB 3.0接口和一个千兆以太网接口。这些接口为用户提供了灵活的数据传输和存储选项。

总的来说，PCIE-6612是一款高性能、高精度的数据采集卡，适用于各种要求严苛的测试和测量应用。它的高速采样率、宽带宽和灵活的触发同步功能使其成为工程师和科研人员的理想选择。

【英文介绍】

The PCI-6612 is a PCI-based high-speed data acquisition card manufactured by National Instruments. The capture card is designed for demanding test and measurement applications such as defense, aerospace, communications and semiconductor testing.

The PCI-6612 has 12 analog input channels with sampling rates up to 250 MS/s, and each channel supports bandwidth up to 100 MHz. This enables it to capture high-speed, high-precision signals, providing engineers and researchers with accurate data acquisition and analysis capabilities.

In addition, the PCI-6612 has flexible triggering and synchronization capabilities that can be synchronized with other National Instruments' PCIe data acquisition devices or Ni-DAQMX-compatible hardware. This makes it possible to achieve accurate data acquisition and synchronization in complex test systems.

The PCI-6612 also offers a wealth of I/O ports, including PCIe x8 ports, two 64-bit DDR3 SODIMM slots (supporting up to 16 GB of on-board memory), a USB 3.0 port, and a Gigabit Ethernet port. These interfaces provide users with flexible data transfer and storage options.

Overall, the PCI-6612 is a high-performance, high-precision data acquisition card for a variety of demanding test and measurement applications. Its high sampling rate, wide bandwidth and flexible trigger synchronization make it an ideal choice for engineers and researchers.
