PCI-6025E 多功能DAQ 带有两个内置的24位计数器

☆型号：PCI-6025E 多功能DAQ 带有两个内置的24位计数器

【产品详情】

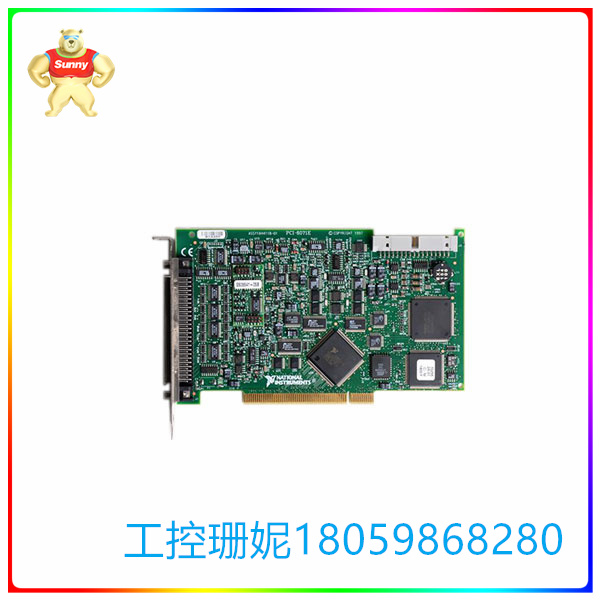

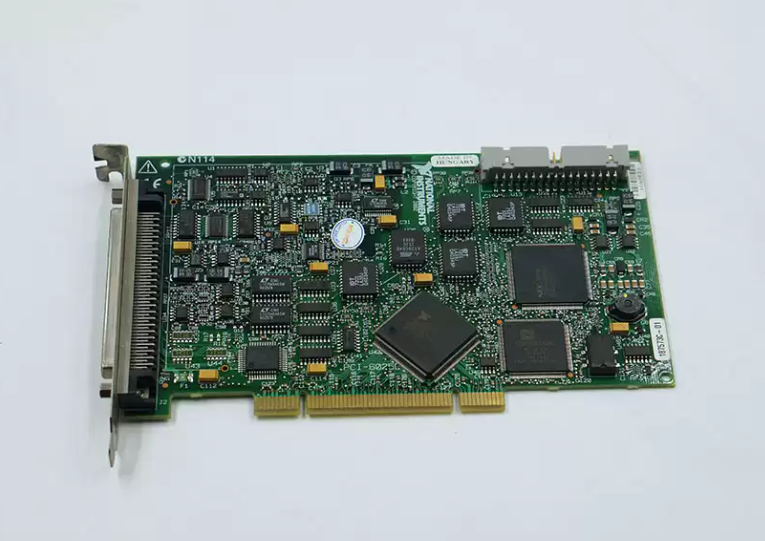

National Instruments PCI-6025E 多功能 DAQ

PCI-6025E（部件号：777744-01）是美国国家仪器公司E系列的一款高品质、经济实惠的多功能DAQ。该 DAQ 提供 每 秒 200 kS 的 采样 率。National Instruments PCI-6025E 多功能 DAQ 提供 12 位 的 分辨率。该仪器包含 16 个单端或 8 个差分模拟通道来输入数据，使用户能够以高性能功能完成快速数据采集。它还拥有 2 个模拟输出通道。NI PCI-6025E 可 用于 多种 应用， 包括 高速 数据 记录 和 传感器 测量。用户还可以选择利用RTSI BUS和PXI触发总线来同步不同设备的操作.

National Instruments PCI-6025E多功能DAQ还带有两个内置的24位计数器。NI PCI-6025E 可 与 信号 调理 配合 使用 ， 用于 高 电压 信号 或 传感器 测量、 持续 高速 数据 记录 等 应用。该仪器提供有用的传输、放大器和动态特性。该设备带有内置的 DMA 通道。该多功能数据采集系统具有多种操作模式，例如单次传输和按需传输模式。配置大小为 512 字，最大工作电压为距地 11 伏±，适用于单一和通用工作模式。NI PCI-6025E 还提供 10 kHz 的 更新 率， 这 取决于 系统。

PCI-6025E 多功能 DAQ 带有 一个 内置 DAC， 它 是 一个 倍 加 双 缓冲 DAC。该仪器还提供数字触发功能，例如触发要求的上升沿或下降沿。它的脉冲宽度最小值为 10 ns。PCI 6025E 的建议预热时间为 15 分钟，需要每年校准一次。该设备的重量为 4.1 盎司，尺寸为：6.9 x 4.2 英寸。此外，PCI 6025E 还具有 100 针 I/O 连接器。该仪器使用NI-DAQ驱动软件与LabVIEW、Measurement Studio和VirtualBench等应用程序编程环境进行操作。

☆型号：PCI-6025E 多功能DAQ 带有两个内置的24位计数器

【英文介绍】

National Instruments PCI-6025E Multi-function DAQ

The PCI-6025E (Part number: 777744-01) is a high-quality, affordable, versatile DAQ from National Instruments' E series. The DAQ provides a sampling rate of 200 kS per second. National Instruments PCI-6025E Multi-function DAQ provides 12-bit resolution. The instrument consists of 16 single-ended or 8 differential analog channels to input data, enabling users to complete fast data acquisition with high performance. It also has 2 analog output channels. The NI PCI-6025E can be used for a variety of applications, including high-speed data recording and sensor measurement. Users can also choose to utilize the RTSI BUS and PXI trigger bus to synchronize the operations of different devices.

The National Instruments PCI-6025E versatile DAQ also comes with two built-in 24-bit counters. The NI PCI-6025E can be used in conjunction with signal conditioning for applications such as high voltage signal or sensor measurement and continuous high-speed data recording. The instrument provides useful transmission, amplifier and dynamic characteristics. The device comes with a built-in DMA channel. The multifunctional data acquisition system has multiple operating modes, such as single transfer and on-demand transfer modes. The configuration size is 512 words and the maximum operating voltage is 11 volts ± ground, suitable for single and universal operating modes. The NI PCI-6025E also offers an update rate of 10 kHz, depending on the system.

The PCI-6025E Multifunction DAQ comes with a built-in DAC, which is a double plus double buffer DAC. The instrument also provides a digital trigger function, such as triggering the required rising or falling edge. It has a minimum pulse width of 10 ns. The PCI 6025E has a recommended warm-up time of 15 minutes and requires yearly calibration. The device weighs 4.1 ounces and measures: 6.9 x 4.2 inches. In addition, the PCI 6025E also features a 100-pin I/O connector. The instrument uses NI-DAQ driver software to operate with application programming environments such as LabVIEW, Measurement Studio, and VirtualBench.
