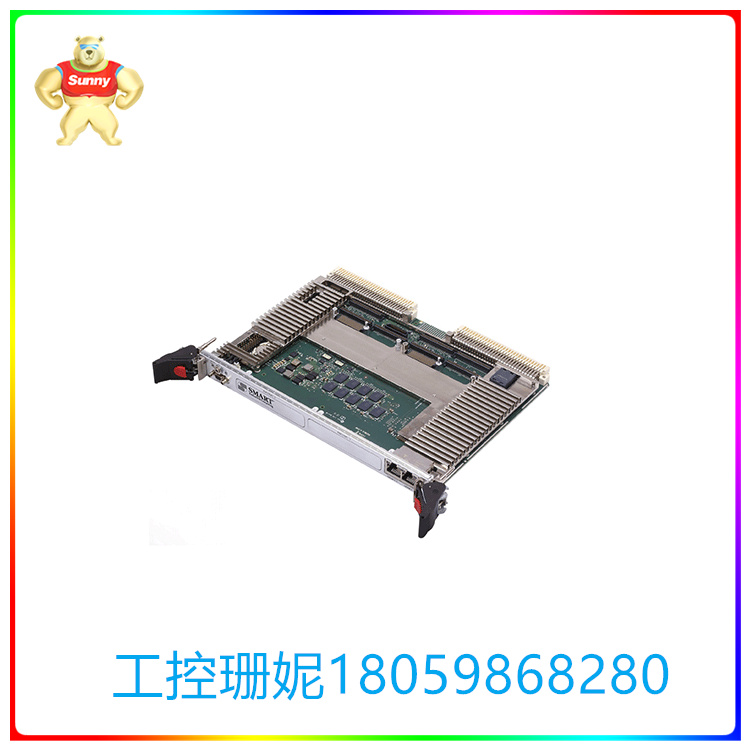

MVME8105 VMEbus CPU板，配备QorIQ P5020处理器
【产品详情】
P5020 QorIQ处理器，时钟速度为2.0 GHz。提供 512 KB MRAM、8 GB eMMC NAND 闪存、16 MB SPI ROM 和 4 GB ECC DDR3-1333 RAM。
MVME8105 提供 2 个 PMC/XMC 插槽、3 个千兆以太网端口、1 个 Micro DB9 端口、2 个 USB 2.0 端口、2 个 GPIO 端口和 4 个 RS-232/422/485 端口。该MVME8105提供 IEEE 1101 夹具和 VMEbus 梯形夹具，板级支持包可用于
WindRiver VxWorks、Linux 和 Green Hills Integrity。
该MVME8105可与 MVME8110-RTM 转换模块结合使用，允许添加两个额外的 USB 2.0 端口、两个 Micro DB9 RS-232/422/485、两个 RS-232/422/485、两个千兆以太网、两个 GPIO 端口和一个 PIM 模块插槽。
6U/4HP VMEbus 板卡，兼容 VME64x
2.0 GHz 飞思卡尔P5020 QorIQ处理器
4 GB DDR3-1333 ECC RAM，焊接
16 MB SPI罗姆
512 KB 磁共振成像
8 GB eMMC NAND 闪存
2 个 PMC/XMC 插槽
选项 2.5“ SATA HDD/SSD 占用 PMC 插槽 2
3 个千兆以太网端口，1 个位于 P2 上，2 个位于前面板
前面板上有一个 Micro DB9 RS-232/422/485 端口
P2 上的两个 USB 2.0 端口
2 个 GPIO 端口
4 个 RS232/422/485 端口，通过 P2
看门狗和实时时钟
UBoot 固件
WindRiver VxWorks、Linux 和 Green Hills Integrity 支持
MVME8105 VMEbus CPU板，配备QorIQ P5020处理器
【英文介绍】
P5020 QorIQ processor with a clock speed of 2.0 GHz. It offers 512 KB MRAM, 8 GB eMMC NAND flash memory, 16 MB SPI ROM, and 4 GB ECC DDR3-1333 RAM.
The MVME8105 offers two PMC/XMC slots, three Gigabit Ethernet ports, one Micro DB9 port, two USB 2.0 ports, two GPIO ports, and four RS-232/422/485 ports. The MVME8105 offers IEEE 1101 fixtures and VMEbus ladder fixtures for which board level support packages are available
WindRiver VxWorks, Linux and Green Hills Integrity.
The MVME8105 can be used in combination with the MVME8110-RTM conversion module. Allows the addition of two additional USB 2.0 ports, two Micro DB9 RS-232/422/485, two RS-232/422/485, two Gigabit Ethernet, two GPIO ports, and one PIM module slot.
6U/4HP VMEbus board, compatible with VME64x
2.0 GHz Freescale P5020 QorIQ processor
4 GB DDR3-1333 ECC RAM, welded
16 MB SPI ROM
512 KB magnetic resonance imaging
8 GB eMMC NAND flash memory
Two PMC/XMC slots
Option 2.5 "SATA HDD/SSD occupies PMC slot 2
Three Gigabit Ethernet ports, one on the P2 and two on the front panel
There is a Micro DB9 RS-232/422/485 port on the front panel
Two USB 2.0 ports on P2
2 GPIO ports
4 RS232/422/485 ports via P2
Watchdog and real-time clock
UBoot firmware
WindRiver Supports VxWorks, Linux, and Green Hills Integrity
