HIMA F6705 模拟输入模块

HIMAF6705  模拟输入模块

HIMAF6705  模拟输入模块

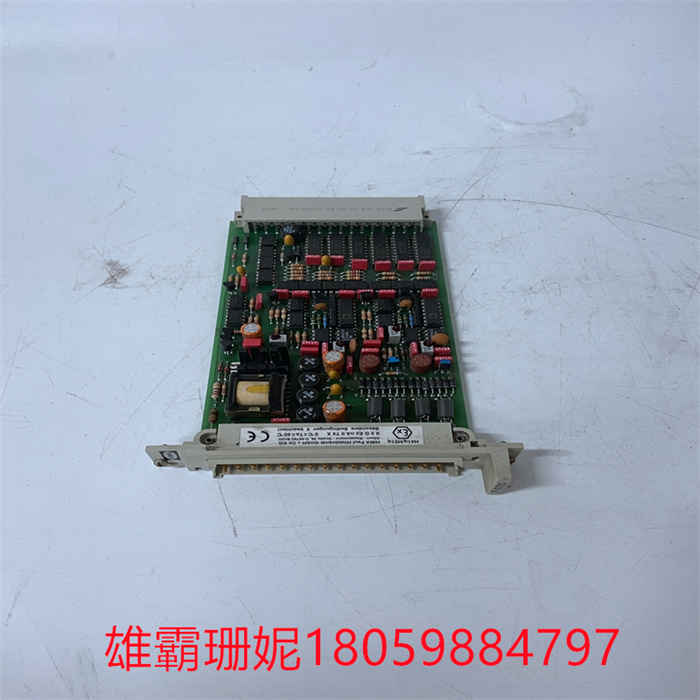

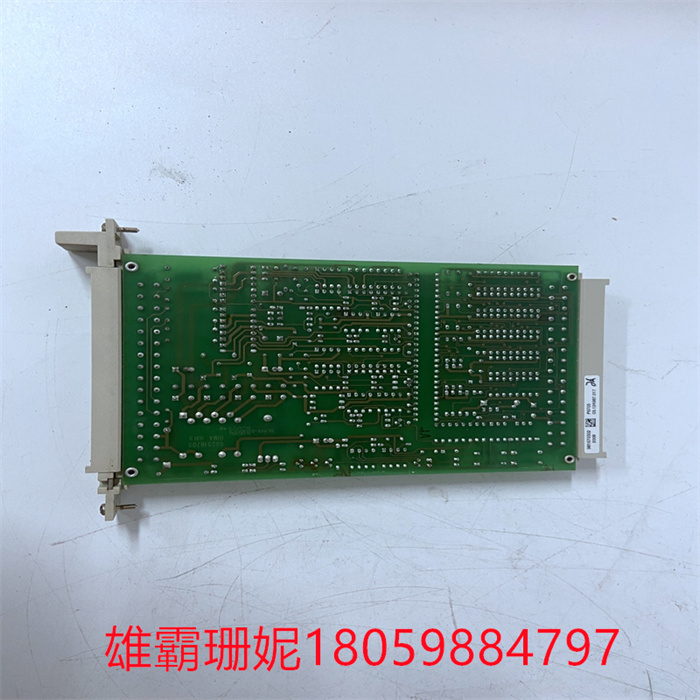

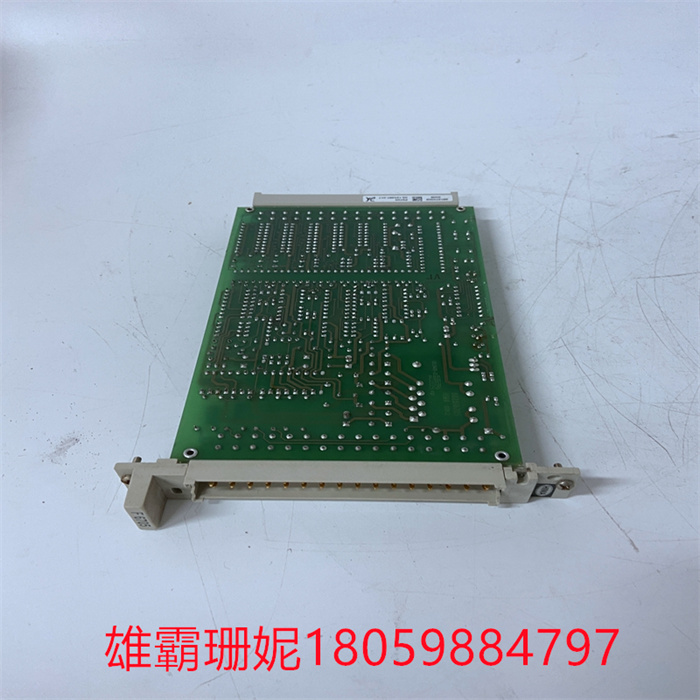

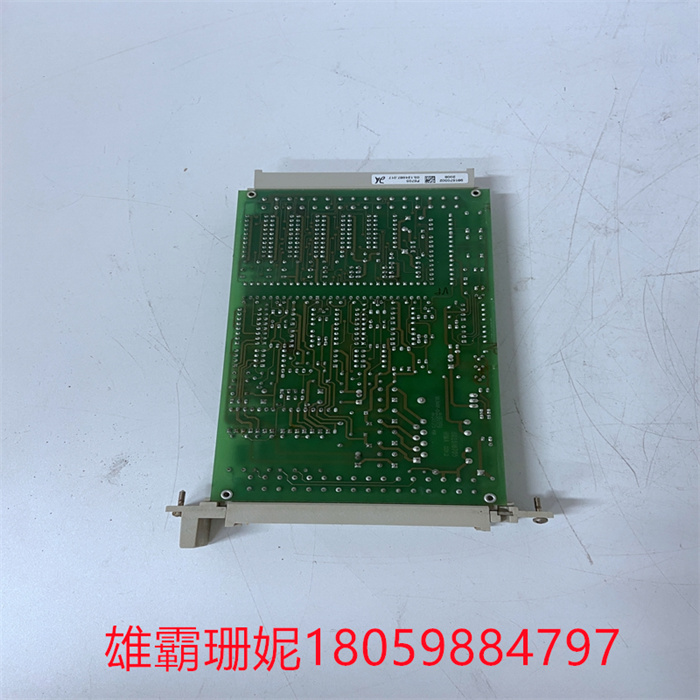

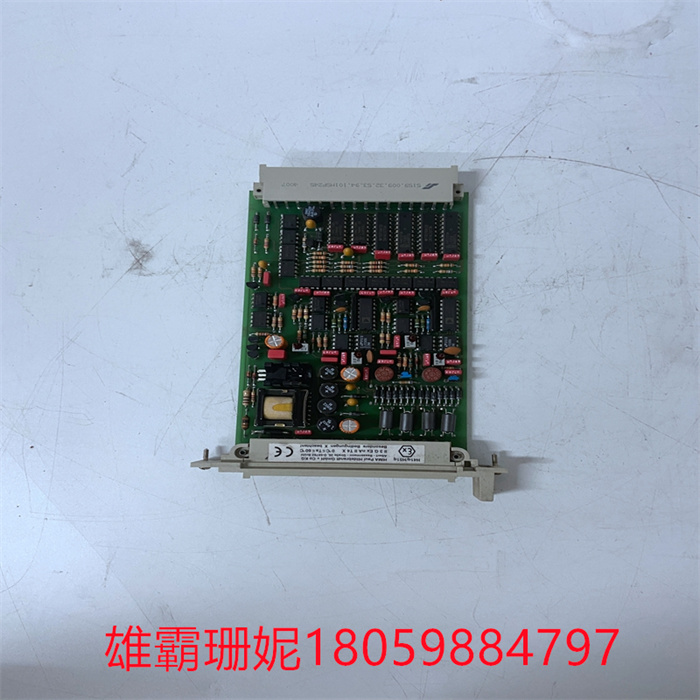

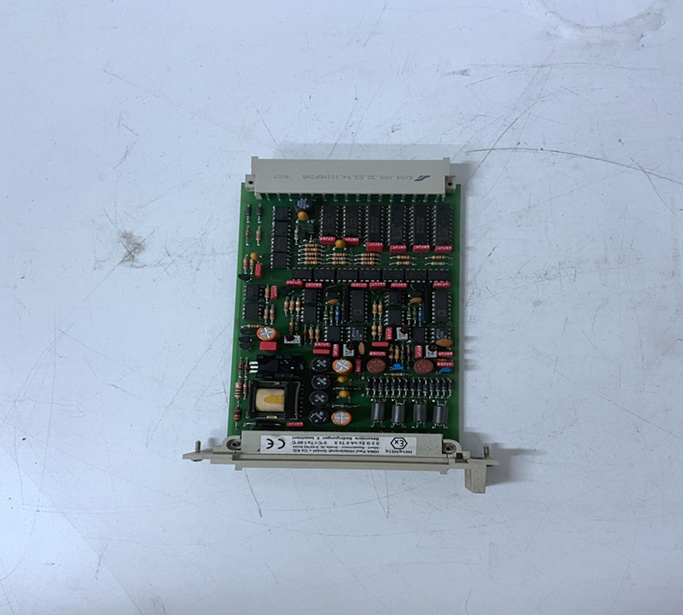

HIMA F6705 |模拟输出模块| F 6705。HIMA F6705模拟输出模块是一个双重转换器数字/模拟安全相关模块，具有冗余电流连接。它用于在HIMA安全系统中产生模拟输出信号。以下是关于HIMA F6705模块的一些要点:该模块有两个输出通道，可以产生模拟输出信号。取决于配置，负载RB的总电流IG1或IG2是单个电流I11和I21或I12和I22的总和。容许的负载电阻是总电流的一半。并行通道必须在同一模式下使用，要么是源模式，要么是吸模式。出于温度误差和负载平衡的考虑，每个输出通道应产生一半的负载电流IG。

HIMAF6705  模拟输入模块

HIMA F6705 | Analog output module | F6705. The HIMA F6705 analog output module is a dual converter digital/analog safety-related module with redundant current connections. It is used to generate analog output signals in HIMA safety systems. Here are some key points about the HIMA F6705 module: The module has two output channels that can produce analog output signals. Depending on the configuration, the total current IG1 or IG2 of load RB is the sum of the individual currents I11 and I21 or I12 and I22. The allowable load resistance is half of the total current. Parallel channels must be used in the same mode, either source mode or suck mode. For temperature error and load balancing considerations, each output channel should generate half of the load current IG.

HIMAF6705  模拟输入模块
