1394C-SJT22-A/C 具有模拟模块功能 伺服控制器

>>>>>型号:1394C-SJT22-A/C 具有模拟模块功能  伺服控制器

【功能描述】

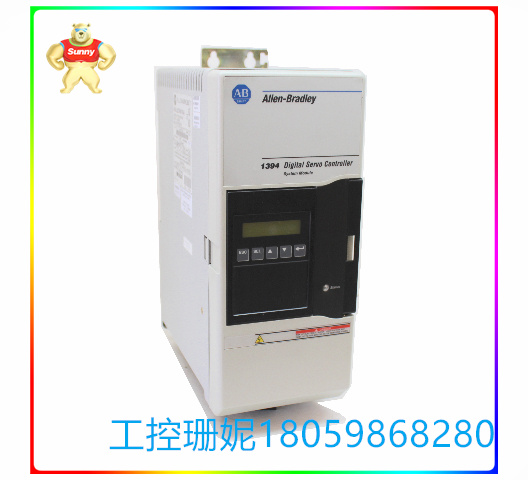

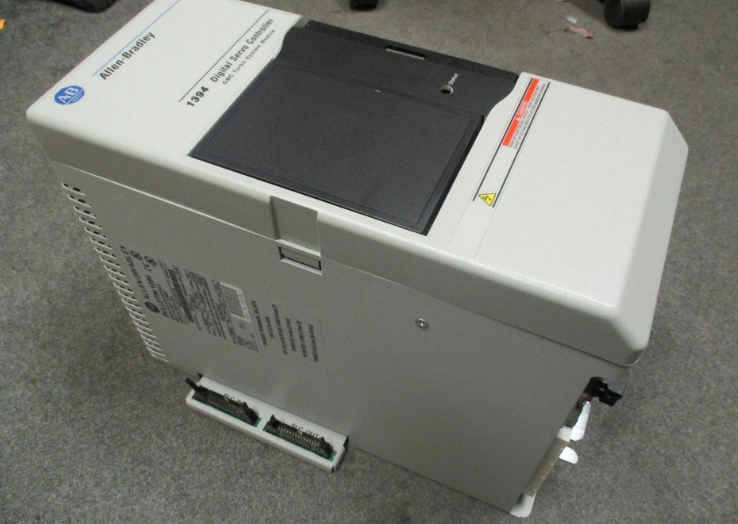

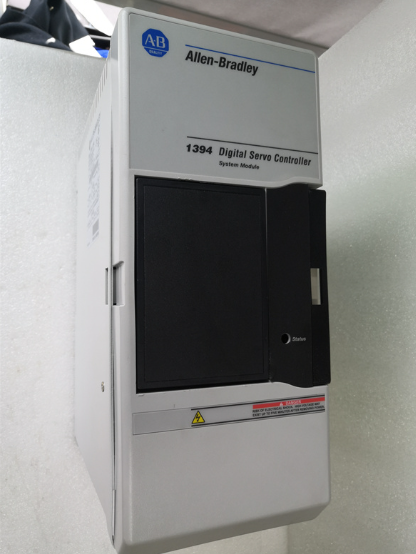

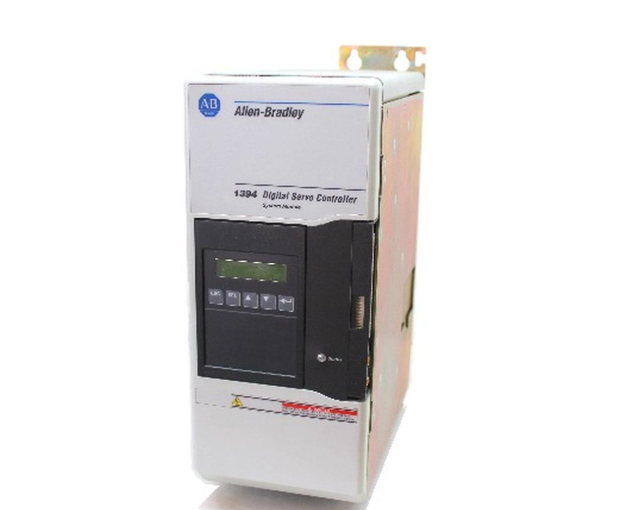

1394C-SJT22-A 是一款具有模拟模块功能和 ±10 伏直流模拟接口的 Allen-Bradley 伺服控制器。它是一款 C 系列系统模块，具有智能电源、EMI 滤波和改进的端接等功能。 1394C-SJT22-A 系统最多可支持四个轴，并可用作速度或扭矩控制器。它配有 Bulletin 1201 人机界面模块，可实现自动调谐和快速启动。这款 1394C-SJT22-A 还具有 SCANport 接口、33.8 安培的直流电压连续输出电流、22 kW 的连续输出功率和三相电源。1394C-SJT22-A 具有电源输入，例如 24 伏交流电源、断开功能、保险丝盒以及用于电机制动器和热触点的 24 伏直流电源。

1394C-SJT22-A 可在 324 至 528 伏交流电、50 至 60 赫兹的电压下工作，效率为 98%。1394C-SJT22-A 的电容为 660 μF，电感为 500 μH，需要外部分流模块。1394C-SJT22-A 具有诊断功能，包括电流监控器、热过载检测和反馈信号监控器。此外，它还具有系统和轴模块的状态 LED。还包括电气噪声保护和改进的接地端子。

 >>>>>型号:1394C-SJT22-A/C 具有模拟模块功能  伺服控制器

【英文介绍】

The 1394C-SJT22-A is an Allen-Bradley servo controller with analog module functionality and a ±10 volt DC analog interface. It is a C Series system module with features such as smart power supply, EMI filtering and improved terminating. The 1394C-SJT22-A system supports up to four axes and can be used as a speed or torque controller. It comes with a Bulletin 1201 HMI module for automatic tuning and quick start. The 1394C-SJT22-A also features a SCANport interface, 33.8 amps continuous output current at DC voltage, 22 kW continuous output power, and a three-phase power supply. The 1394C-SJT22-A has power inputs such as 24 volt AC power, disconnect function, fuse box, and 24 volt DC power for motor brakes and hot contacts.

The 1394C-SJT22-A operates at 324 to 528 volts AC and 50 to 60 Hertz with an efficiency of 98%. The 1394C-SJT22-A has a capacitance of 660 μF and an inductance of 500 μH, requiring an external shunt module. The 1394C-SJT22-A has diagnostic functions including current monitor, thermal overload detection and feedback signal monitor. In addition, it also has status leds for the system and shaft modules. Also included are electrical noise protection and improved ground terminals.
