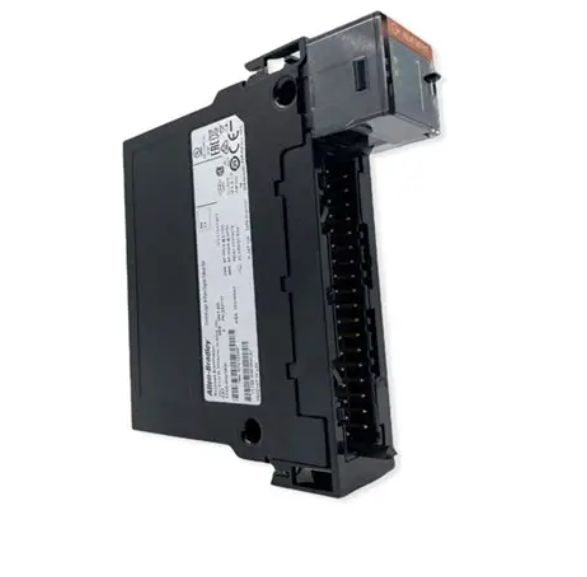

1756-ON8 输入和输出模块 提供开/关检测和激活
【产品详情】
1756-ON8 的技术参数
制造者 罗克韦尔自动化
品牌 艾伦-布拉德利
零件号/目录号 1756-ON8型
系列 ControlLogix
模块类型 输出模块
输出 8 点
电压 240 伏交流电
工作电压范围 10-30 伏交流电
最大输出电流额定点 2 摄氏度时为 60 安培
最大输出电流额定值-模块 30 摄氏度时为 5 安培,60 摄氏度时为 4 安培
功耗(最大值) 5.1 摄氏度时为 60 瓦
5 V 时的背板电流 200毫安
可拆卸接线端子 1756-TBNH,1756-TBSH
隔离电压 50 伏连续电压
外壳 没有
刚果爱国者联盟 10612598171450
关于1756-ON8
Allen-Bradley 1756-ON8 ControlLogix® 数字 I/O 模块是一个输入和输出模块,提供开/关检测和激活。1756-ON8 使用生产者和消费者模型网络,它可以在需要时生成信息,同时提供额外的系统功能。Allen-Bradley 1756-ON8 有 8 个输出,每组 4 个点。卷tage 该模块的类别为 24V AC,工作频率为 50-60 Hz。该模块的工作电压范围为 10-30V AC,电流为 > 50 mA 47-63Hz。该模块的总背板功率为 1.07 W,在 60 °C (140 °F) 时的最大功耗为 5.1 W。该模块的散热为 17.39 BTU/hr。除非电源已关闭,否则请勿断开此设备。使用螺钉、剪切钩、螺纹连接器或本产品随附的任何其他方式固定与 1756-ON8 的配对外部连接。
Allen-Bradley 1756-ON8 的相对湿度为 5-95%,无冷凝。该模块的工作温度和非工作温度范围分别为 0-60 °C (32-140 °F) 和 -40-85 °C (-40-185 °F),该模块的工作冲击和非工作冲击分别为 30 g 和 50 g。该模块具有开放式外壳。它应该安装在为某些环境条件设计的外壳中。
1756-ON8 输入和输出模块 提供开/关检测和激活
【英文介绍】
Technical parameters of 1756-ON8
Manufacturer Rockwell Automation
Brand Allen Bradley
Part number/Catalog number Model 1756-ON8
Series ControlLogix
Module Type Indicates the output module
Output 8 point
Voltage 240 volts AC
Operating voltage range 10-30 volts AC
The maximum output current is 60 amps at the rated point of 2 degrees Celsius
Maximum output current ratings - 5 amps at 30 degrees Celsius for the module and 4 amps at 60 degrees Celsius
Power consumption (Max.) 60 watts at 5.1 degrees Celsius
Backplane current 200 mA at 5 V
Detachable terminal 1756-TBNH, 1756-TBSH
Isolation voltage 50 V continuous voltage
Shell no
Union of Congolese Patriots 10612598171450
About 1756-ON8
The Allen-Bradley 1756-ON8 ControlLogix® digital I/O module is an input and output module that provides on/off detection and activation. 1756-ON8 uses a network of producer and consumer models, which can generate information when needed while providing additional system functionality. The Allen-Bradley 1756-ON8 has eight outputs with four points in each set. This module has a class of 24V AC and operates at a frequency of 50-60 Hz. The operating voltage range of the module is 10-30V AC and the current is > 50 mA 47-63Hz. The module has a total backplane power of 1.07 W and a maximum power consumption of 5.1 W at 60 °C (140 °F). The module has a heat dissipation of 17.39 BTU/hr. Do not disconnect this device unless the power is turned off. Secure the paired external connection to the 1756-ON8 using screws, shear hooks, threaded connectors, or any other means included with this product.
Allen-Bradley 1756-ON8 has a relative humidity of 5-95% with no condensation. The module has an operating and non-operating temperature range of 0-60 °C (32-140 °F) and -40-85 °C (-40-185 °F), and the module has an operating and non-operating shock of 30 g and 50 g, respectively. The module has an open housing. It should be installed in a housing designed for certain environmental conditions.
