Allen-Bradley 1756-L55M16 串行电缆用于将控制器连接到工作站

【产品详情】

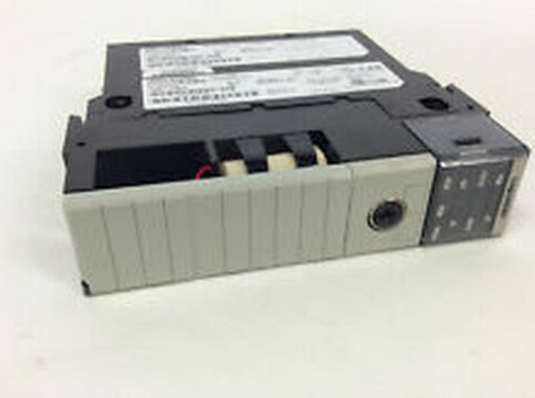

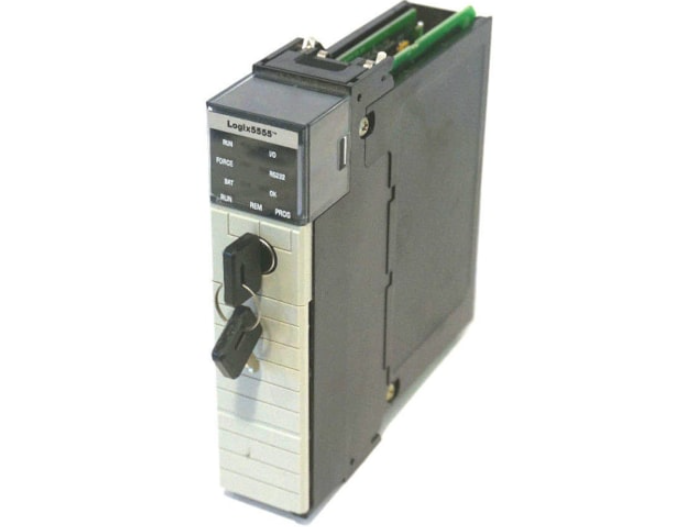

Allen-Bradley 1756-L55M16 是一款 ControlLogix 控制器，是 Logix5000 系列控制器的一部分。它具有 7.5 MB 的数据和逻辑存储器以及 208 KB 的 I/O 存储器。它有一个 Logix 和一个背板 CPU，用于在它们之间分配资源。应用程序代码和消息由 Logix CPU 执行，背板 CPU 从背板发送和接收数据，并与 I/O 通信。1756-L55M16 控制器通过串行端口连接到工作站或其他控制器。

1756-CP3 串行电缆用于将控制器连接到工作站。为了与其他设备进行通信，它使用各种网络，如以太网/IP、ControlNet、DeviceNet 等。1756-L55M16 可以通过 EtherNet/IP 或 ControlNet 网络广播和接收系统共享标签。生产者和使用者各需要一个连接。

1756-L55M16 控制器具有多任务处理功能，可将处理时间分配给应用中的不同操作。它还包含用于组数据和逻辑的程序。它提供了用一种编程语言封装可执行代码的例程。它支持在线和离线的 Logix5000 编程语言。如果发生任何 I/O 通信故障，它有一个闪烁绿色的 I/O LED。1756-L55M16 还包含用于诊断的故障处理程序。

Allen-Bradley 1756-L55M16 串行电缆用于将控制器连接到工作站

【英文介绍】

The Allen-Bradley 1756-L55M16 is a ControlLogix controller that is part of the Logix5000 family of controllers. It has 7.5 MB of data and logic memory and 208 KB of I/O memory. It has a Logix and a backplane CPU for allocating resources between them. Application code and messages are executed by the Logix CPU, and the backplane CPU sends and receives data from the backplane and communicates with I/O. The 1756-L55M16 controller is connected to a workstation or other controller via a serial port.

The 1756-CP3 serial cable is used to connect the controller to the workstation. In order to communicate with other devices, it uses various networks such as Ethernet /IP, ControlNet, DeviceNet, etc. The 1756-L55M16 can broadcast and receive system share tags over EtherNet/IP or ControlNet networks. The producer and the consumer each require a connection.

The 1756-L55M16 controller has multi-tasking capabilities to allocate processing time to different operations in the application. It also contains programs for grouping data and logic. It provides routines that encapsulate executable code in a programming language. It supports both online and offline Logix5000 programming language. If any I/O communication failure occurs, it has a blinking green I/O LED. The 1756-L55M16 also contains a fault handler for diagnosis.

Allen-Bradley 1756-L55M16 串行电缆用于将控制器连接到工作站

【其他型号推荐】

The Allen-Bradley 1756-L55M16 is a ControlLogix controller that is part of the Logix5000 family of controllers. It has 7.5 MB of data and logic memory and 208 KB of I/O memory. It has a Logix and a backplane CPU for allocating resources between them. Application code and messages are executed by the Logix CPU, and the backplane CPU sends and receives data from the backplane and communicates with I/O. The 1756-L55M16 controller is connected to a workstation or other controller via a serial port.

The 1756-CP3 serial cable is used to connect the controller to the workstation. In order to communicate with other devices, it uses various networks such as Ethernet /IP, ControlNet, DeviceNet, etc. The 1756-L55M16 can broadcast and receive system share tags over EtherNet/IP or ControlNet networks. The producer and the consumer each require a connection.

The 1756-L55M16 controller has multi-tasking capabilities to allocate processing time to different operations in the application. It also contains programs for grouping data and logic. It provides routines that encapsulate executable code in a programming language. It supports both online and offline Logix5000 programming language. If any I/O communication failure occurs, it has a blinking green I/O LED. The 1756-L55M16 also contains a fault handler for diagnosis.
