☆型号：1762-L40AWA 可编程逻辑控制器 通信和编程端口
【产品详情】

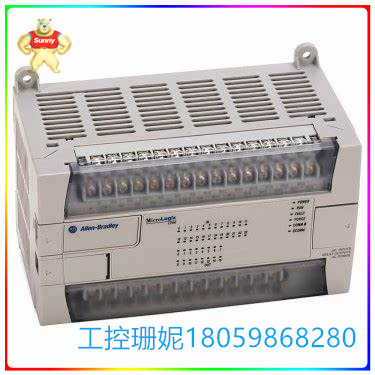

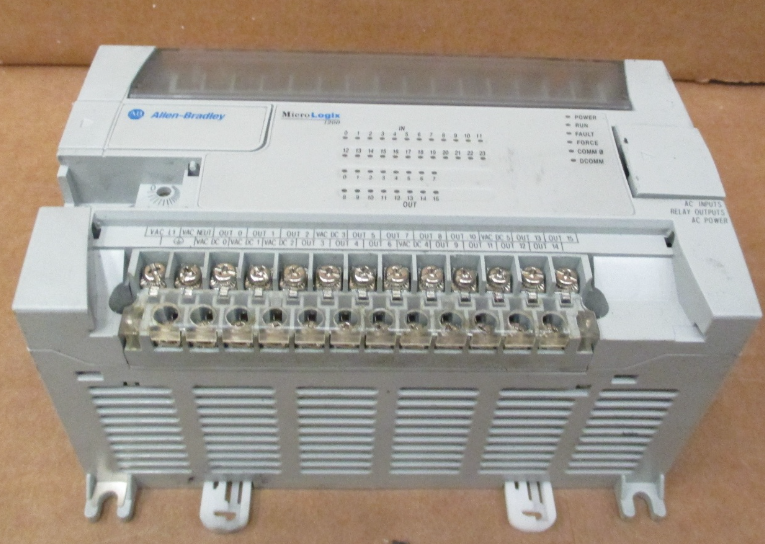

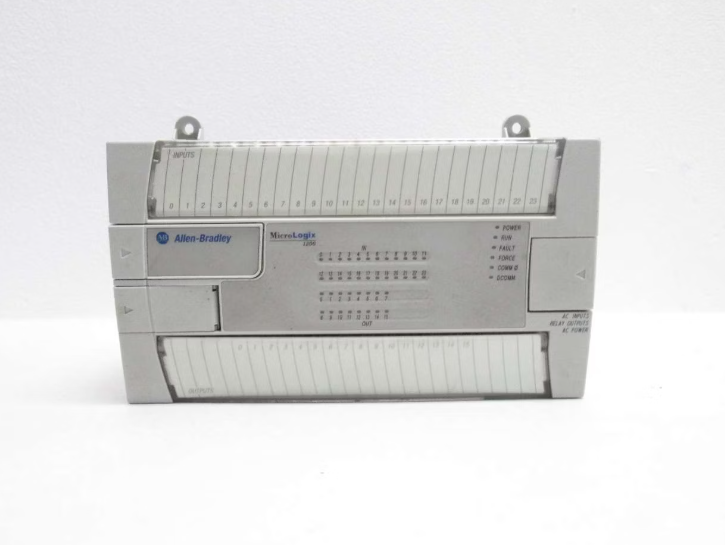

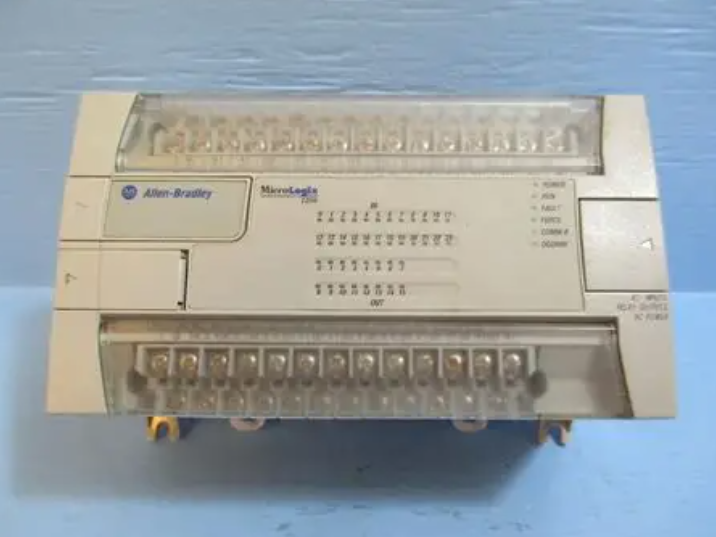

1762-L40AWA 是一款 MicroLogix 1200 控制器。这是一款 Allen-Bradly 可编程逻辑控制器 （PLC），设计有嵌入式输入和输出通道以及通信和编程端口。
1762-L40AWA 还配有两 （2） 个微调电位器，可用于模拟内部寄存器或作为过程变量的本地控制。这些微调电位器位于控制器的前面板上，可以使用精密螺丝刀进行调整。
1762-L40AWA 具有一 （1） 个 8 针 mini-DIN 物理接口形式的通信端口。该通信端口支持DF1、串行DH485、ASCII和MODBUS主/从协议。该端口可用于下载和上传用户程序、与人机界面 （HMI） 以及监督控制和数据采集 （SCADA） 系统的接口。
1762-L40AWA 通过提供外部 100-240VAC 电源电压供电，频率为 47-63 Hz。它可以承受 25 A 的浪涌电流（8 ms @ 120 VAC）和 40 A 的浪涌电流（4 ms @ 240 VAC）。它的电源使用量为 80 VA。
☆型号：1762-L40AWA 可编程逻辑控制器 通信和编程端口
【英文介绍】
The 1762-L40AWA is a MicroLogix 1200 controller. This is an Allen-Bradly programmable logic controller (PLC) designed with embedded input and output channels as well as communication and programming ports.
The 1762-L40AWA is also equipped with two (2) fine tuning potentiometers that can be used to simulate internal registers or for local control as a process variable. These trimmer potentiometers are located on the front panel of the controller and can be adjusted using a precision screwdriver.
The 1762-L40AWA has one (1) communication port in the form of an 8-pin mini-DIN physical interface. The communication port supports DF1, serial DH485, ASCII, and MODBUS master/slave protocols. This port can be used to download and upload user programs, interface with Human machine interface (HMI), and supervisory control and data acquisition (SCADA) systems.
The 1762-L40AWA is powered by providing an external 100-240VAC supply voltage at a frequency of 47-63 Hz. It can withstand 25 A surge current (8 ms @ 120 VAC) and 40 A surge current (4 ms @ 240 VAC). Its power usage is 80 VA.
☆型号：1762-L40AWA 可编程逻辑控制器 通信和编程端口
