2711PC-T6C20D8
2711PC-T6C20D8

2711PC-T6C20D8 触摸屏 显示应用程序状态信息

型号:2711PC-T6C20D8触摸屏显示应用程序状态信息【产品详情】Allen-Bradley2711PC-T6C20D8是一款PanelViewPlus6

联系人:Sunny

手机:18059884797

QQ:3095989363

邮箱:xiongbagk@gmail.com

产品详情

型号:2711PC-T6C20D8 触摸屏 显示应用程序状态信息







【产品详情】

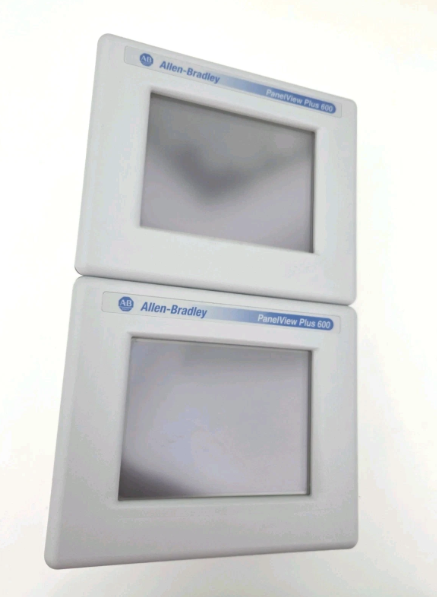

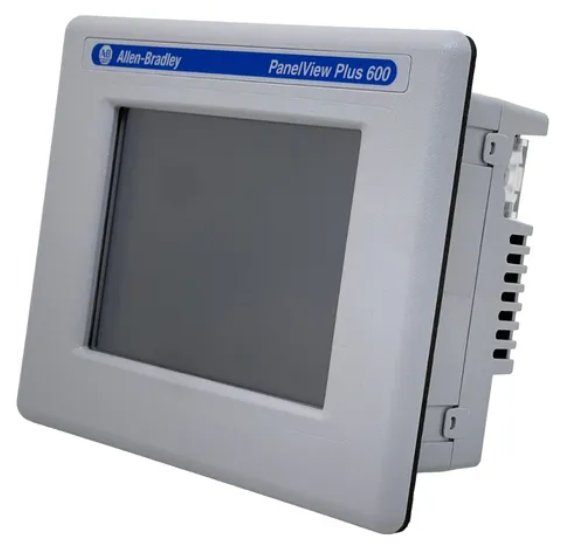

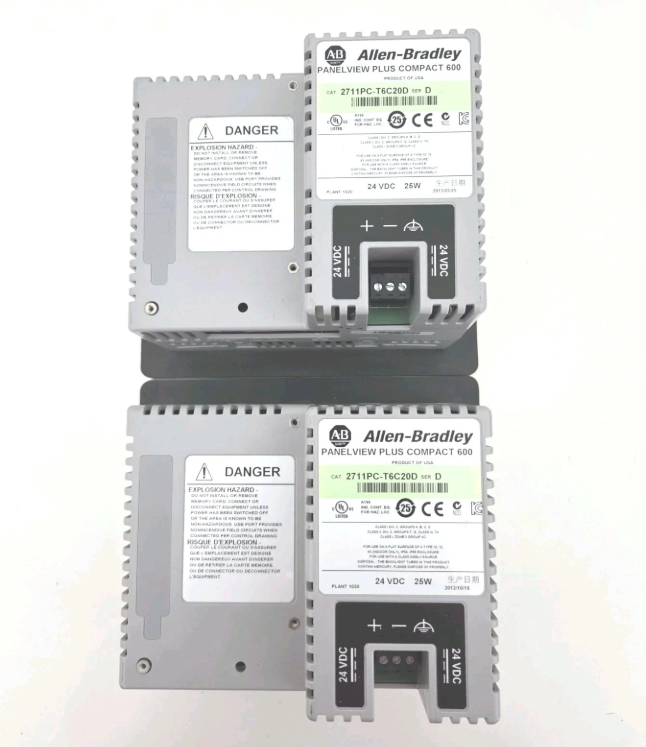

Allen-Bradley 2711PC-T6C20D8是一款PanelView Plus 6 Compact 600图形终端。它以图形方式显示应用程序状态信息,并允许用户通过其人机界面 (HMI) 控制和监控数据。它是 PanelView Plus 6 终端的一个子集,具有选择性功能,需要多达 25 个显示器和多达 200 条报警消息。2711PC-T6C20D8 配备 5.7 英寸 TFT 彩色显示屏,触摸屏分辨率为 320 x 240,具有 18 位图形。它的尺寸为 6 x 7.28 x 2.86 英寸,重量为 1.31 磅,具有 18 至 30 伏直流输入电源和 256 MB RAM 内存。


对于通信,它支持以太网端口和 RS-232 串行端口。2711PC-T6C20D8 提高了处理器速度、系统内存和照明,使其比其他 PanelView Plus 紧凑型终端领先一步。可以连接键盘等外部外围设备。2711PC-T6C20D8 还支持远程连接和 ActiveX 控件。安装方面,它支持使用 NEMA、UL 或 IP 级外壳进行面板安装。为了阅读文档,2711PC-T6C20D8 有一个内置的 PDF 查看器。如果系统出现故障,它会创建备份以进行数据恢复。它使用基于矢量的图形和CSV文件进行数据管理。2711PC-T6C20D8 还通过其登录功能方便数据存储和修改。


2711PC-T6C20D8 配备 5.7 英寸 18 位彩色显示屏,显示区域为 115 x 86 毫米(4.5 x 3.4 英寸),分辨率为 320 x 240 像素。它的背光在 25 °C (77 °F) 下的工作寿命为 25,000 小时。除了嵌入式背光外,该显示屏还安装了模拟电阻式触摸屏,可用作操作界面。该触摸屏界面设计用于在 10-110g 的力下操作多达 100 万次。


2711PC- T6C20D8 安装有电池供电的时钟,该时钟还为关键数据添加时间戳。在 25 °C (77 °F) 下运行时,预期电池寿命为 4 年。该电池可更换为 2711P-RY2032 或等效的 CR2032 纽扣锂电池的适当更换部件号




型号:2711PC-T6C20D8 触摸屏 显示应用程序状态信息





英文介绍





The Allen-Bradley 2711PC-T6C20D8 is a PanelView Plus 6 Compact 600 graphics terminal. It graphically displays application status information and allows users to control and monitor data through its human machine interface (HMI). It is a subset of the PanelView Plus 6 terminal with selective capabilities that require up to 25 displays and up to 200 alarm messages. The 2711PC-T6C20D8 features a 5.7-inch TFT color display with a touchscreen resolution of 320 x 240 and 18-bit graphics. It measures 6 x 7.28 x 2.86 inches, weighs 1.31 pounds and has an 18 to 30 volt DC input power supply and 256 MB RAM memory.


For communication, it supports Ethernet ports and RS-232 serial ports. The 2711PC-T6C20D8 improves processor speed, system memory, and lighting, putting it one step ahead of other PanelView Plus compact terminals. External peripherals such as keyboards can be connected. The 2711PC-T6C20D8 also supports remote connectivity and ActiveX controls. In terms of installation, it supports panel mounting using NEMA, UL or IP grade housings. To read documents, the 2711PC-T6C20D8 has a built-in PDF viewer. If the system fails, it creates a backup for data recovery. It uses vector-based graphics and CSV files for data management. The 2711PC-T6C20D8 also facilitates data storage and modification through its login function.


The 2711PC-T6C20D8 features a 5.7-inch 18-bit color display with a display area of 115 x 86 mm (4.5 x 3.4 inches) and a resolution of 320 x 240 pixels. Its backlight has an operating life of 25,000 hours at 25 °C (77 °F). In addition to the embedded backlight, the display is equipped with an analog resistive touch screen that can be used as an operating interface. The touchscreen interface is designed to operate up to 1 million times at 10-110g forces.


The 2711PC-T6C20D8 is equipped with a battery-powered clock that also adds time stamps for critical data. Battery life is expected to be 4 years when operating at 25 °C (77 °F). The battery can be replaced with the appropriate replacement part number for 2711P-RY2032 or the equivalent CR2032 button lithium battery




型号:2711PC-T6C20D8 触摸屏 显示应用程序状态信息
