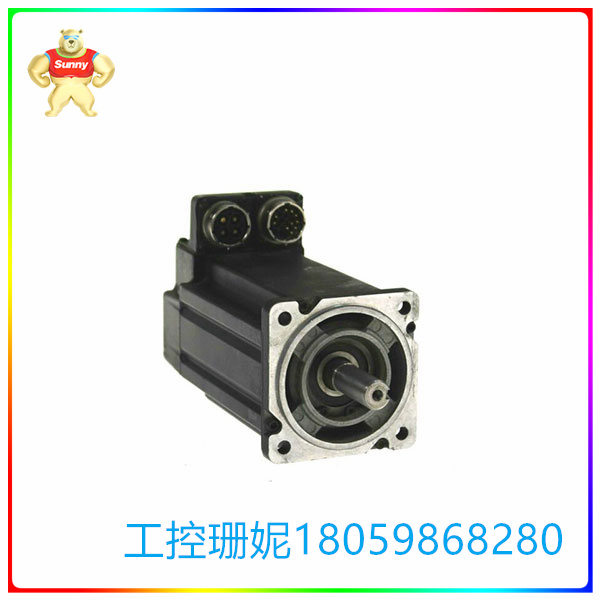

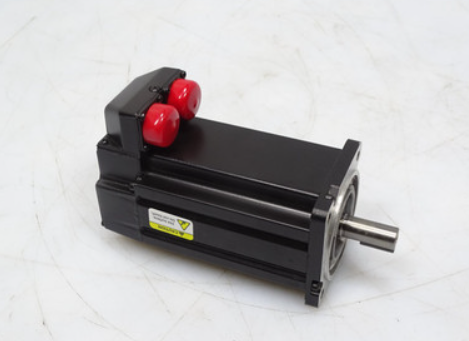

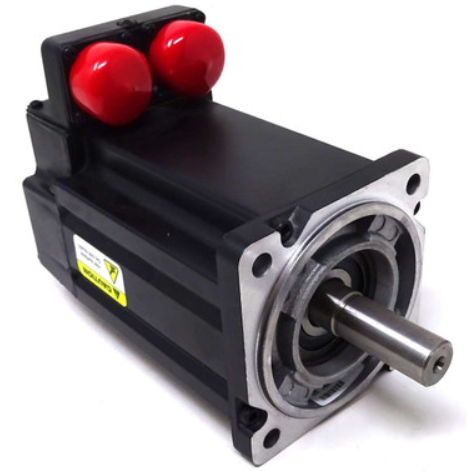

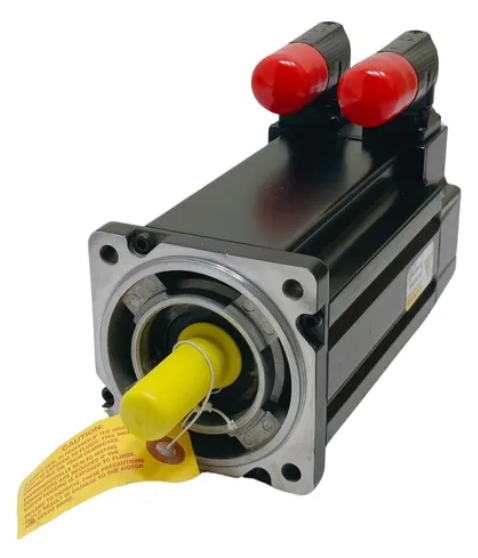

MPL-A330P-MK22AA 伺服电机 具有低惯量输出

☆型号：MPL-A330P-MK22AA 伺服电机 具有低惯量输出

【产品详情】

Allen-Bradley MPL-A330P-MK22AA 是 Kinetix MPL 系列伺服电机的一部分。该伺服电机具有低惯量输出，专为包装、加工、物料搬运、电子装配和自动化等应用而设计。该伺服电机根据其物理尺寸设计为高扭矩输出，并配备了智能电机技术，其中驱动器身份可以在网络中轻松识别。该伺服电机默认不带轴封，符合 IP50 防护等级。安装适当的轴封，特别是 MPL-SSN-A3B3，只要与环境密封电缆和连接器一起使用，即可满足 IP66 的防护等级。

轴封在保持电机运行方面发挥着重要作用，因为它可以防止工艺液体或材料进入电机的核心。这种轴封会受到磨损，并随着时间的推移而降低保护。需要每 3 个月更换一次，最短每 12 个月更换一次。

此外，该伺服电机还安装了支持 Hiperface 协议的 1024 正余弦多圈编码器，允许电机和伺服驱动器之间更快地通信和交换位置数据，从而实现更快的响应和更准确和精确的运动和位置控制。

该伺服电机是 200V 级电机，在 230 VAC 的电源输入电压下运行，三相，频率范围为 0-233 Hz。它提供 1.8 kW 的输出功率和 6.0 A （0-pk） 的连续电流以及 3.05 Nm 或 27 lb-in 的连续失速扭矩。

☆型号：MPL-A330P-MK22AA 伺服电机 具有低惯量输出

【英文介绍】

The Allen-Bradley MPL-A330P-MK22AA is part of the Kinetix MPL family of servo motors. The servo motor has a low inertia output and is designed for applications such as packaging, processing, material handling, electronic assembly and automation. The servo motor is designed for high torque output according to its physical size and is equipped with smart motor technology where the driver identity can be easily identified in the network. The servo motor has no shaft seal by default and meets the IP50 protection level. Install the appropriate shaft seals, especially MPL-SSN-A3B3, to meet the IP66 protection class as long as they are used with environmentally sealed cables and connectors.

The shaft seal plays an important role in keeping the motor running because it prevents process liquids or materials from entering the core of the motor. This shaft seal is subject to wear and loss of protection over time. It needs to be replaced every 3 months, with a minimum of every 12 months.

In addition, the servo motor is equipped with a 1024 sine-cosine multi-turn encoder that supports the Hiperface protocol, allowing faster communication and exchange of position data between the motor and the servo drive, resulting in faster response and more accurate and precise motion and position control.

The servo motor is a 200V class motor that operates at a power input voltage of 230 VAC, three phases, with a frequency range of 0-233 Hz. It delivers 1.8 kW of output power and 6.0 A (0-pk) continuous current with 3.05 Nm or 27 lb-in continuous stall torque.

☆型号：MPL-A330P-MK22AA 伺服电机 具有低惯量输出
