TSXP572634M Unity 处理器的功能 处理器的离散容量

【产品详情】

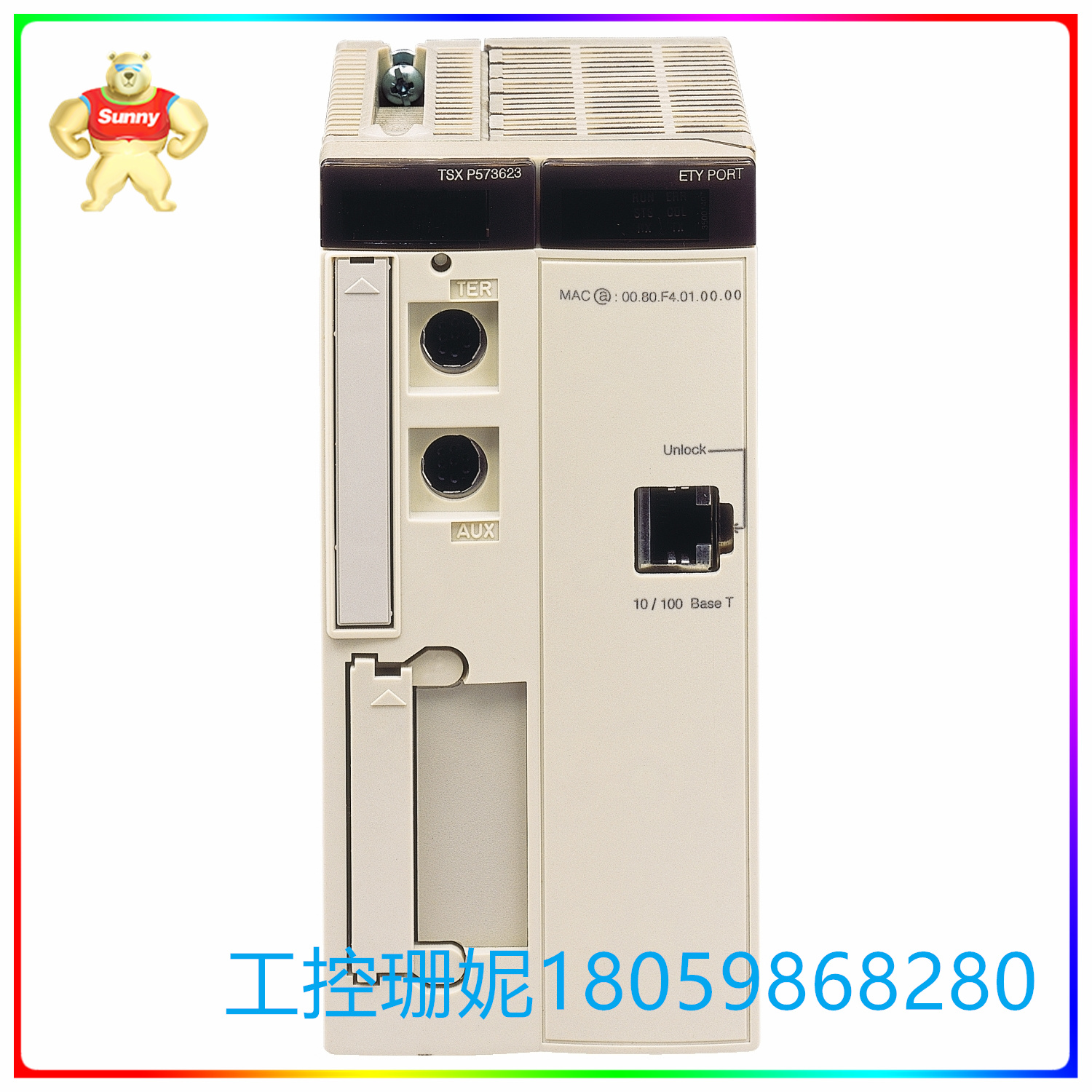

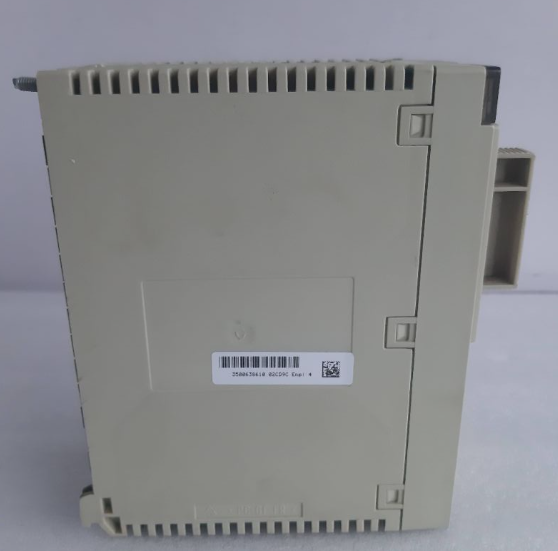

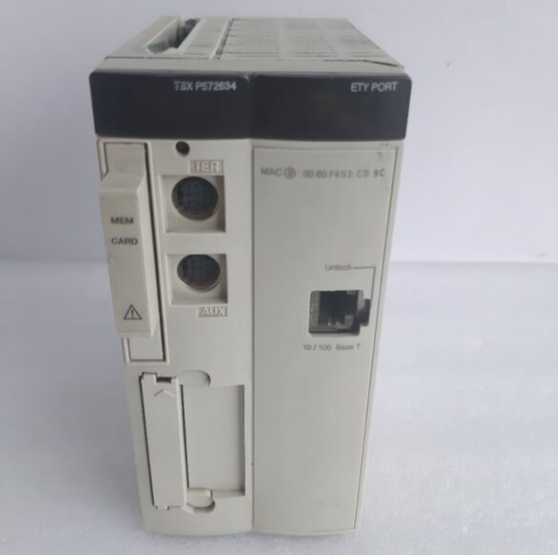

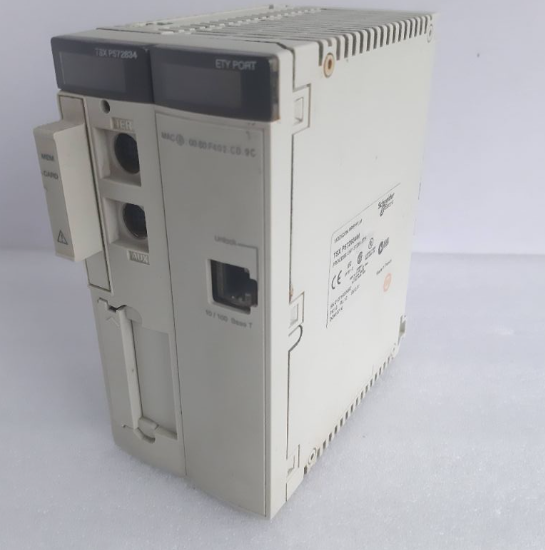

Modicon TSXP572634M Unity 处理器的功能

TSXP572634M Unity Pro 处理器模块可用于 16 个机架、4/6/8 插槽或 8 个机架和 12 个插槽。处理器的离散容量为 1024 I/O。模拟 I/O 处理器容量为 80 个 I/O，具有 24 个特定于应用的通道。TSXP572634M模拟 I/O 可控制 10 个和多达 30 个简单回路。

施耐德电气处理器TSXP572634M的集成连接类型是什么？TSXP572634M处理器是非隔离串行链路 2 母 mini-DIN 连接器 （RS485） （19.2 kbit/s） 和以太网 TCP/IP RJ45 连接器。

Modicon TSXP572634M的以太网端口是 10BASE-T/100BASE-TX。

每条指令的执行时间是多少？0.19 μs 布尔值（不带 PCMCIA 卡）、0.25 μs 字或定点运算（不带 PCMCIA 卡）、1.75 - 2.6 μs 浮点（带 PCMCIA 卡

）、0.21 μs 浮点（带 PCMCIA 卡）和 0.42 μs 字或定点运算（带 PCMCIA 卡）。

Schneider Electric TSXP572634M的内存说明

内部RAM（带PCMCIA卡）承载160 kB数据，内部RAM（带PCMCIA卡）承载768 kB程序存储器。没有PCMCIA卡，内部RAM为160 KB程序和数据。额外的 PCMCIA 卡可用于应用 16384 kB 的额外数据存储。

适当的相对湿度为 10% 至 95%，运行期间无冷凝，储存期间为 5% 至 95%，无冷凝。工作高度必须在 0 到 2000 m 之间。

在运行期间，可接受的环境空气温度为 0 – 60°C。施耐德电气TSXP572634M的可接受环境空气温度为 -25 至 70°C。

TSXP572634M Unity 处理器的功能 处理器的离散容量

【英文介绍】

Modicon TSXP572634M Unity processor features

The TSXP572634M Unity Pro processor module can be used in 16 racks, 4/6/8 slots or 8 racks and 12 slots. The discrete capacity of the processor is 1024 I/O. The analog I/O processor has a capacity of 80 I/ OS with 24 application-specific channels. The TSXP572634M analog I/O can control 10 and up to 30 simple loops.

What is the type of integrated connection for the Schneider Electric processor TSXP572634M? The TSXP572634M processor is a non-isolated serial link 2 female mini-DIN connector (RS485) (19.2 kbit/s) and Ethernet TCP/IP RJ45 connector.

The Ethernet port of the Modicon TSXP572634M is 10BASE-T/100BASE-TX.

What is the execution time of each instruction? 0.19μs Boolean (without PCMCIA card), 0.25μs word or fixed-point arithmetic (without PCMCIA card), 1.75-2.6μs floating point (with PCMCIA card)

), 0.21μs floating point (with PCMCIA card), and 0.42μs word or fixed-point arithmetic (with PCMCIA card).

Memory description of the Schneider Electric TSXP572634M

Internal RAM (with PCMCIA card) holds 160 kB of data, and internal RAM (with PCMCIA card) holds 768 kB of program memory. There is no PCMCIA card, and internal RAM is 160 KB of programs and data. Additional PCMCIA cards can be used to apply 16,384 kB of additional data storage.

Appropriate relative humidity is 10% to 95%, no condensation during operation, and 5% to 95%, no condensation during storage. The working height must be between 0 and 2000 m.

During operation, the acceptable ambient air temperature is 0-60 °C. Acceptable ambient air temperatures for the Schneider Electric TSXP572634M range from -25 to 70°C.
