PCD230（常写作 PCD230A，备件号 3BHE022291R0101）是 ABB 电力 / 励磁与 DCS 系统里的一款高性能控制 / 通信处理模块 ，俗称 CCM（Communication Control Module），主要用在 UNITROL 6800/6000 励磁系统和 AC 800M/800xA DCS 中。
一、身份与系列
型号：PCD230A（PCD230）
物料号：3BHE022291R0101
别名：CCM 模块、励磁控制模块、通信控制模块
归属：
UNITROL 6800/6000 励磁系统（核心测量与通信板）
AC 800M / 800xA DCS（作为控制 / 通信处理器）
二、核心硬件参数（工业版）
处理器：PowerPC / 32 位 RISC，主频约 500MHz
内存：16MB RAM / 16MB Flash（不同资料有 256MB/512MB 配置，取决于版本）
电源：24VDC ±10%，背板供电
工作温度：0°C ~ +60°C（励磁版可到 -40°C~+75°C）
采样速率：10kHz（励磁系统高速采样）
响应时间：<5ms
冗余：支持双电源、1:1 冗余、热插拔
三、接口与通信
以太网：2×10/100Mbps 电口（冗余）
现场总线：Profibus‑DP、Modbus RTU/TCP、CAN
串口：RS‑232/RS‑485
前面板：LED 状态灯、小显示屏、按键、调试口
四、主要功能
励磁系统（UNITROL 6800/6000）
发电机励磁调节、测量与闭环控制
高速采集电压 / 电流，10kHz 采样
与上位 DCS、SCADA 通信，上传数据、接收指令
DCS 控制站（AC 800M/800xA）
作为控制器 / 通信处理器
下联 I/O 站（S800、SD 系列）
上联操作站、服务器、MES
执行连续控制、顺控、联锁、批量
五、典型应用
电力：火电、水电、核电发电机励磁系统
流程工业：化工、冶金、造纸、水处理 DCS 控制站
特点：高可靠、高速、冗余、适合关键控制回路
六、PCD230 vs HC800
PCD230A：
偏电力励磁 + DCS 通信 / 控制
体积小、嵌入式、10kHz 采样
多用于 UNITROL 励磁、AC 800M 局部控制 / 通信
HC800：
大型 DCS 过程控制器（CPU）
更强 CPU、更大内存、≥5000 I/O 点
用于 电厂 / 化工厂主控制站、整套 DCS 核心
PCD230 (commonly written as PCD230A, spare part number 3BHE022291R0101) is a high-performance control/communication processing module in ABB power/excitation and DCS systems, commonly known as CCM (Communication Control Module), mainly used in UNITOL 6800/6000 excitation systems and AC 800M/800xA DCS.

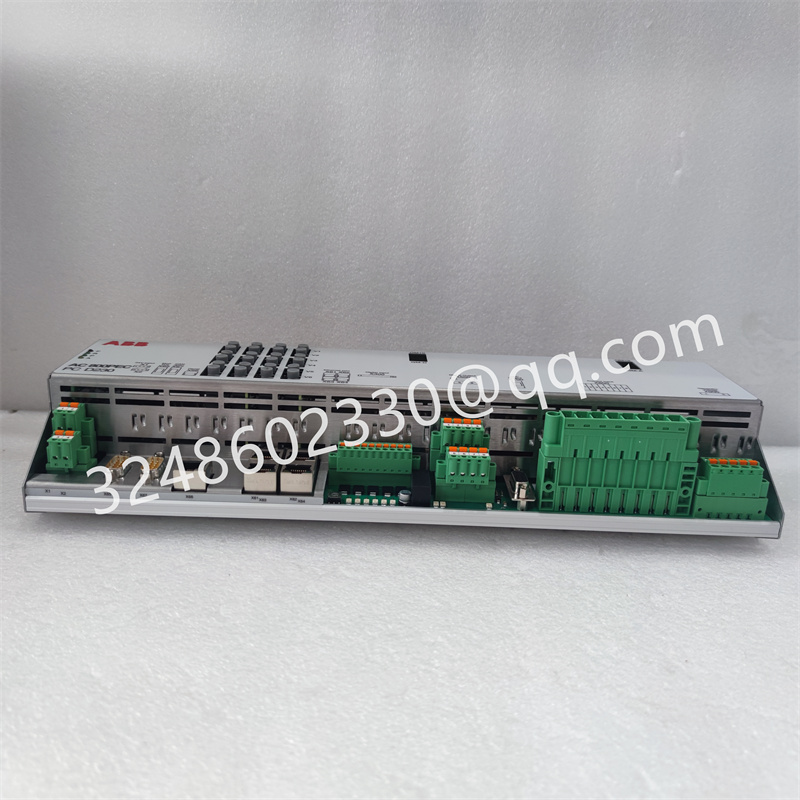

PCD230A101 3BHE022291R0101 (3).jpg
1、 Identity and Series
Model: PCD230A (PCD230)
Material Number: 3BHE022291R0101
Nicknames: CCM module, excitation control module, communication control module
Attribution:
UNITROL 6800/6000 excitation system (core measurement and communication board)
AC 800M/800xA DCS (as control/communication processor)
2、 Core hardware parameters (industrial version)
Processor: PowerPC/32-bit RISC, with a clock speed of approximately 500MHz
Memory: 16MB RAM/16MB Flash (256MB/512MB configuration depending on version)
Power supply: 24VDC ± 10%, backplane power supply
Working temperature: 0 ° C~+60 ° C (excitation version can reach -40 ° C~+75 ° C)
Sampling rate: 10kHz (high-speed sampling of excitation system)
Response time:<5ms
Redundancy: Supports dual power supply, 1:1 redundancy, hot swapping
3、 Interface and Communication
Ethernet: 2 x 10/100Mbps electrical ports (redundant)
Fieldbus: Profibus DP, Modbus RTU/TCP, CAN
Serial port: RS-232/RS-485
Front panel: LED status light, small display screen, buttons, debugging port
4、 Main functions
Excitation system (UNITROL 6800/6000)
Generator excitation regulation, measurement, and closed-loop control
High speed voltage/current acquisition, 10kHz sampling
Communicate with upper level DCS and SCADA, upload data, and receive instructions
DCS control station (AC 800M/800xA)
As a controller/communication processor
Downstream I/O station (S800, SD series)
Upstream operation station, server MES
Execute continuous control, sequential control, interlocking, batch control
5、 Typical applications
Electricity: Excitation systems for thermal power, hydropower, and nuclear power generators
Process industry: chemical, metallurgical, papermaking, water treatment DCS control station
Features: High reliability, high speed, redundancy, suitable for critical control circuits
VI PCD230 vs HC800
PCD230A：
Partial electric excitation+DCS communication/control
Small size, embedded, 10kHz sampling
Mostly used for UNITOL excitation, AC 800M local control/communication
HC800：
Large scale DCS process controller (CPU)
Stronger CPU, larger memory, ≥ 5000 I/O points
Used for power plant/chemical plant main control station, complete DCS core
