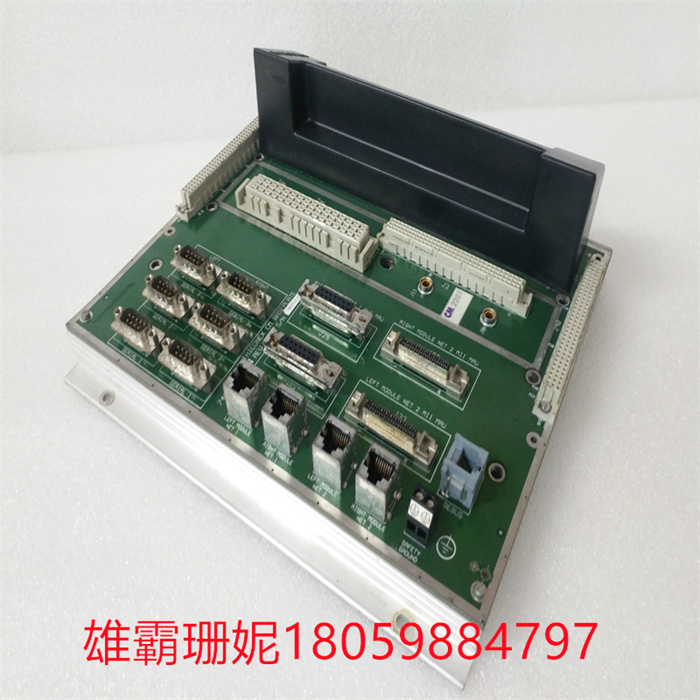

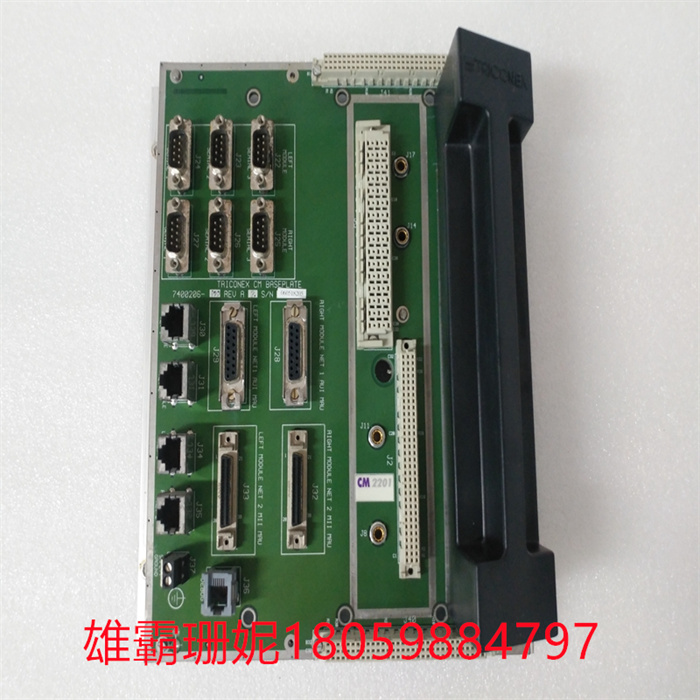

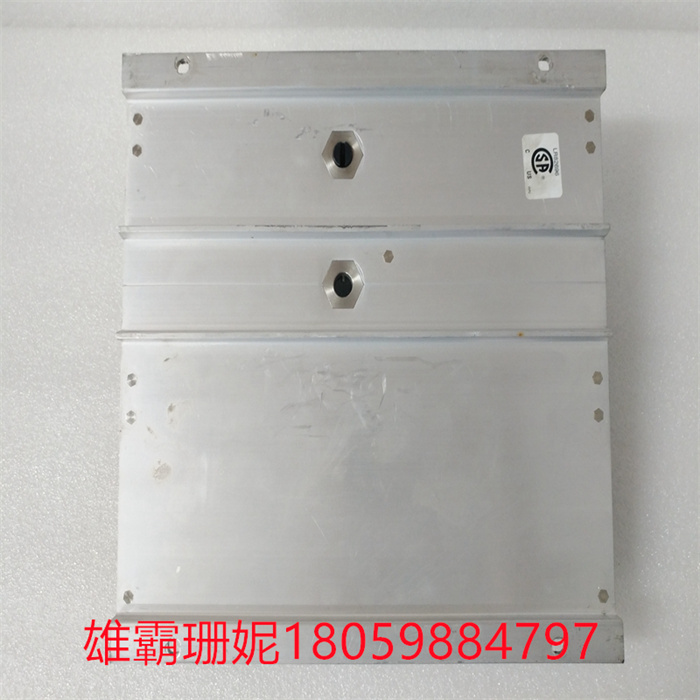

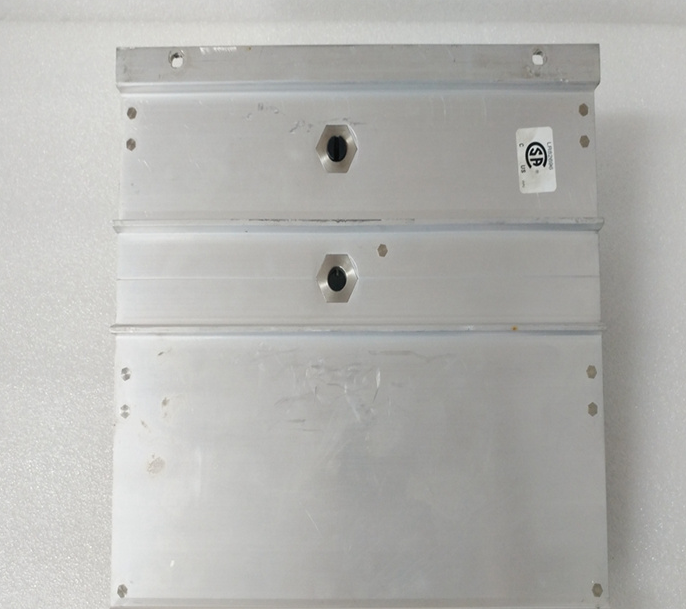

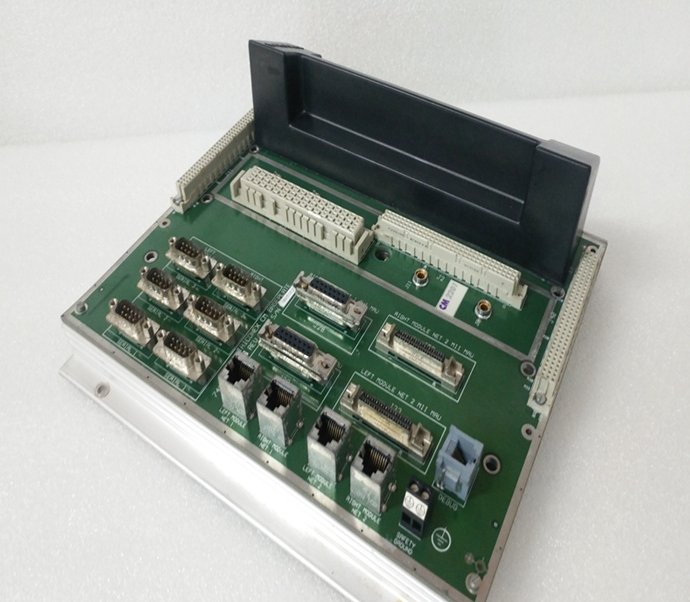

TRICONEX 2101 通讯模块

TRICONEX 2101 通讯模块

TRICONEX 2101 通讯模块

Triconex系统的设计是为了在部件发生硬故障或内部或外部来源的瞬时故障时提供无差错、不间断的控制。容错性是通过整个系统的完全三层结构来实现的，从输入模块到主处理器再到输出模块。每个I/O模块都有三个独立的脚的电路。Triconex是施耐德电气的一个品牌，为安全、关键控制和涡轮机械应用提供产品、系统和服务。Triconex系统基于专利的三重模块化冗余（TMR）工业安全关闭技术。 TriStation TS1131：用于系统配置、编程和记录 报告生成器： 用于跨多个控制器或项目的定制报告 增强型诊断监控器： 用于控制器的状态和健康信息 事件序列（SOE）： 用于SOE的检索显示和分析 TriLogger： 高速事件记录器和显示软件 安全视图： 用于卓越的旁路和报警管理工业自动化是指机器设备或生产过程在不需要人工直接干预或较少干预的情况下，按预期的目标实现测量、操纵等信息处理和过程控制的统称。按功能划分，自动化控制具体包括控制系统、驱动系统、反馈系统、执行系统、运动控制系统等，其中的控制系统被称为是工厂的“大脑”，是工业生产尤其是流程工业的中枢和基础，其安全稳定性、效率性直接影响生产流程各个生产环节。传统控制系统一般包括仪器仪表系统、DCS系统、PLC系统、SIS系统、SCADA系统、执行调节系统等。即集散控制系统，由输入输出模块、通信模块、控制器和人机界面组成，是一种以控制器和现场设备为基础，将相关工艺信号汇集到系统中，由操作站进行监视或其他控制操作，以分散控制、集中操作、分级管理为主要特征的工业自动化控制系统。侧重于局部逻辑控制相比，DCS更注重模拟量的控制，因此DCS系统拥有更强的数据传输和管理能力，这也是大型项目广泛应用DCS系统的主要原因。

TRICONEX 2101 通讯模块

Triconex system is designed to provide error-free and uninterrupted control in case of hard failure or instantaneous failure from internal or external sources. Fault tolerance is realized through the complete three-layer structure of the whole system, from the input module to the main processor to the output module. Each I/O module has three independent pin circuits. Triconex is a brand of Schneider Electric, which provides products, systems and services for safety, critical control and turbomachinery applications. Triconex system's patented triple modular redundancy (TMR) industrial safety shutdown technology. TriStation TS1131: used for system configuration, Programming and recording report generator: enhanced diagnostic monitor for customized reports across multiple controllers or projects: state and health information event sequence (SOE) for controllers: retrieval, display and analysis of SOE TriLogger: high-speed event recorder and display software safety view: industrial automation for excellent bypass and alarm management refers to the collective name for information processing and process control of machinery, equipment or production process to achieve measurement, manipulation and other information according to the expected goals without direct or less manual intervention. According to the function, automatic control includes control system, drive system, feedback system, execution system, motion control system, etc. The control system is called the "brain" of the factory, which is the center and foundation of industrial production, especially process industry, and its safety, stability and efficiency directly affect all production links of the production process. Traditional control systems generally include instrumentation system, DCS system, PLC system, SIS system, SCADA system, executive regulation system and so on. That is, distributed control system, which consists of input and output module, communication module, controller and man-machine interface, is an industrial automation control system based on controller and field equipment, which collects relevant process signals into the system, and is monitored or controlled by operation station, with decentralized control, centralized operation and hierarchical management as its main features. Compared with local logic control, DCS pays more attention to analog control, so DCS system has stronger data transmission and management ability, which is the main reason why DCS system is widely used in large-scale projects.

TRICONEX 2101 通讯模块
