IS200TBAIH1C 模拟端子板的设备 四十八个终端

【产品详情】

IS200TBAIH1C是称为模拟端子板的设备。该PCB或印刷电路板是General Electric的Mark VI系列的一部分。通用电气的 Mark VI 和 Mark 系列中的其他系列旨在控制和自动化燃气轮机和蒸汽轮机的过程。

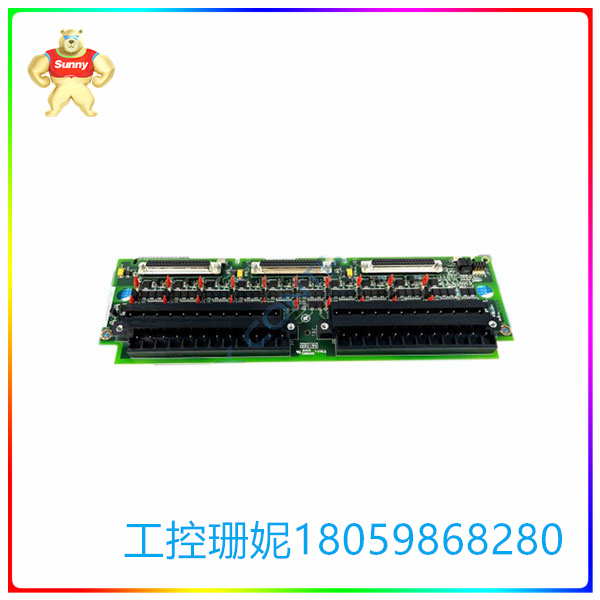

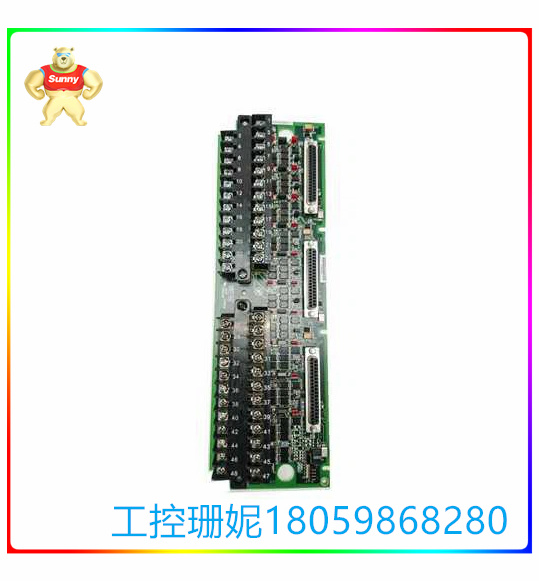

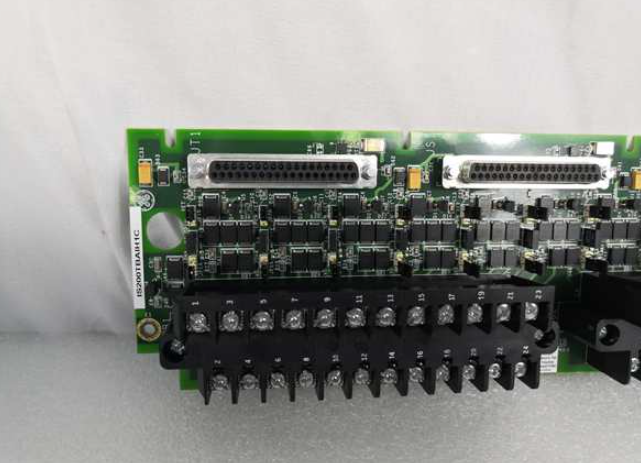

IS200TBAIH1C印刷电路板是一种非常长而纤薄的设备。IS200TBAIH1C的左半部分由两 （2） 个黑色接线端子占据。每个接线端子最多可包含24个端子，这些端子是立方体形状的，由银色金属制成。这些终端总共有四十八个终端，标记为一 （1） 到四十八 （48）。IS200TBAIH1C右边缘的大部分由三 （3） 个中等大小的连接器端口占据。这些连接器端口垂直排列在IS200TBAIH1C的右侧。长长的电子元件在IS200TBAIH1C中央垂直排列。十 （10） 个电位计或可变电阻器均匀分布在IS200TBAIH1C的中心。四 （4） 个额外的电位计已组合在IS200TBAIH1C的右下角。至少有九 （9） 个黑色小晶体管沿着IS200TBAIH1C中心部分的右侧排列。同样位于IS200TBAIH1C中央的是一系列至少二十 （20） 个红色跳线。每个跳线用于将至少两 （2） 个小金属跳线引脚连接在一起。IS200TBAIH1C的中间部分还覆盖着许多小的黑色矩形二极管。

IS200TBAIH1C 模拟端子板的设备 四十八个终端

【英文介绍】

The IS200TBAIH1C is a device called an analog terminal board. This PCB, or printed circuit board, is part of General Electric's Mark VI series. Ge's Mark VI and other series in the Mark family are designed to control and automate the processes of gas and steam turbines.

The IS200TBAIH1C printed circuit board is a very long and thin device. The left half of the IS200TBAIH1C is occupied by two (2) black terminals. Each terminal can contain up to 24 terminals, which are cube-shaped and made of silver metal. These terminals have a total of forty-eight terminals, labeled one (1) through forty-eight (48). Most of the right edge of the IS200TBAIH1C is occupied by three (3) medium sized connector ports. These connector ports are arranged vertically on the right side of the IS200TBAIH1C. The long electronic components are arranged vertically in the center of the IS200TBAIH1C. Ten (10) potentiometers or variable resistors are evenly distributed in the center of the IS200TBAIH1C. Four (4) additional potentiometers have been combined in the lower right corner of the IS200TBAIH1C. At least nine (9) small black transistors are arranged along the right side of the central portion of the IS200TBAIH1C. Also located in the center of IS200TBAIH1C is a series of at least twenty (20) red jumpers. Each jumper is used to connect at least two (2) small metal jumper pins together. The middle part of the IS200TBAIH1C is also covered with a number of small black rectangular diodes.
