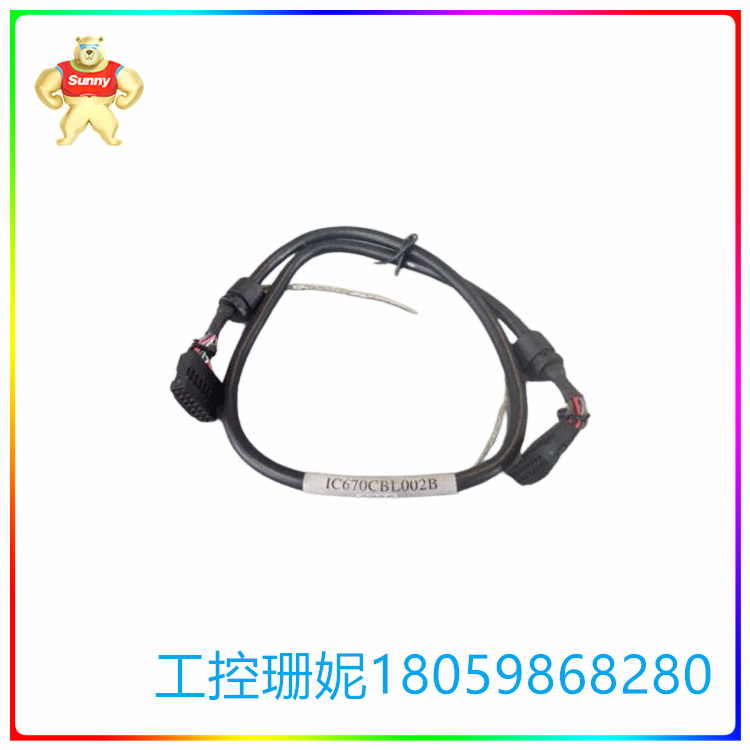

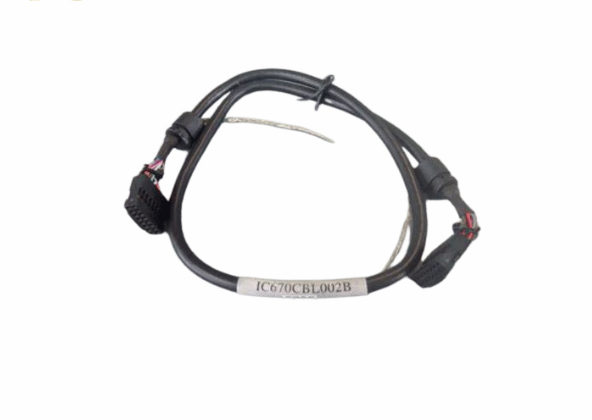

IC670CBL002 扩展连接电缆 带有键控连接器

【产品详情】

GE Fanuc 现场控制IC670CBL002基座连接电缆是一种长度为 54.61 厘米（21 英寸）的可选接线，用于将使用键控端子的 GE Fanuc 接线端子相互互连。它由 GE Fanuc 作为扩展套件制造，用于解决将 2 个接线端子互连在同一面板上的常见问题，这些接线端子位于同一面板上，比标准设置中的接线端子通常相距更远。由于较长电缆和较短电缆的电气特性不同，每个 GE Fanuc 现场控制站只允许使用这些IC670CBL002基础连接电缆中的一根。

GE Fanuc IC670CBL002 Base 连接电缆在出厂时已预组装，带有键控连接器，旨在防止错误连接。它可用于将 2 个 GE Fanuc 接线端子相互互连，或将单个 GE Fanuc 接线端子互连到其相应的 BIU（总线接口单元）。GE Fanuc IC670CBL002 Base 连接电缆带有一根编织地线，旨在用作 ESD 保护措施。该电缆必须连接到两端（接地或机箱）的零电压，以提供对电气干扰或外部噪声的有效抗扰度。安装此 21 英寸扩展电缆时，应避免中断模块之间的数据流，并尊重每个底座的连接极性。如果电缆连接到一个底座的顶部连接器，则应将其插入下一个底座的底部连接器。

IC670CBL002 扩展连接电缆 带有键控连接器

【英文介绍】

GE Fanuc Field Control IC670CBL002 Base connection cable is an optional 54.61 cm (21 in) length wire for interconnecting GE Fanuc terminals using keying terminals. It is manufactured by GE Fanuc as an extension kit to solve the common problem of interconnecting 2 terminal blocks on the same panel that are usually further apart than the terminals in the standard setup. Due to the different electrical characteristics of the longer and shorter cables, each GE Fanuc field control station is allowed to use only one of these IC670CBL002 base connection cables.

The GE Fanuc IC670CBL002 Base connection cable comes pre-assembled at the factory with a keyed connector designed to prevent misconnections. It can be used to interconnect 2 GE Fanuc terminals to each other, or to interconnect a single GE Fanuc terminal to its corresponding BIU (bus interface unit). The GE Fanuc IC670CBL002 Base connection cable comes with a braided ground wire designed to be used as ESD protection. The cable must be connected to zero voltage at both ends (ground or chassis) to provide effective immunity to electrical interference or external noise. This 21-inch expansion cable should be installed to avoid interrupting the data flow between modules and to respect the connection polarity of each base. If the cable is connected to the top connector of one base, it should be plugged into the bottom connector of the next base.

IC670CBL002 扩展连接电缆 带有键控连接器
