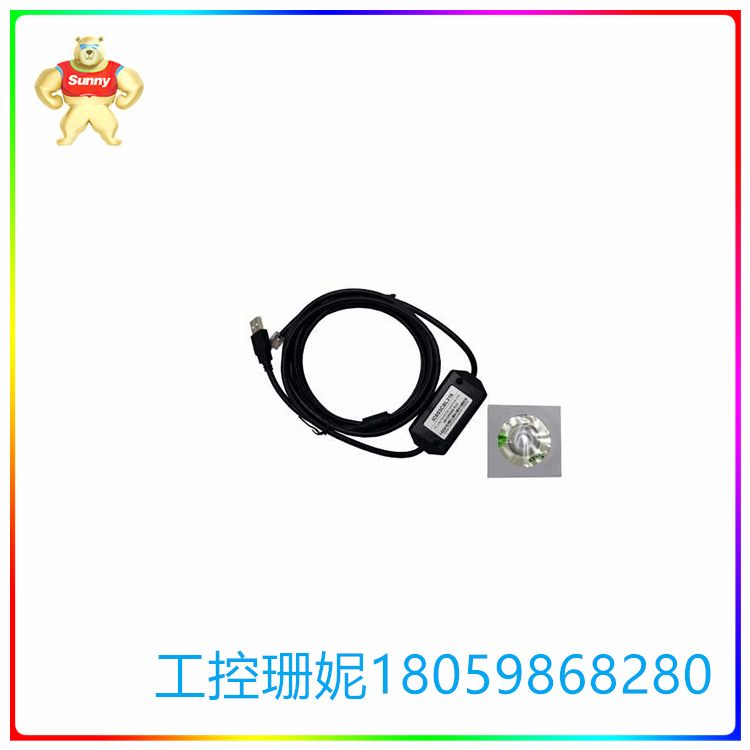

IC693CBL316 串行电缆组件 数字伺服模块

【产品详情】

GE Fanuc IC693CBL316串行接口电缆是一种串行电缆组件，旨在将 CPU 模块和数字伺服模块（如 IC693CMM321、IC693CPU351、IC693CPU352、IC693CPU363 IC693DSM302 和带有 RJ-693 通信端口的IC314DSM11模块）互连到 PC 串行端口。所有 CPU 固件升级和编程应用程序都使用IC1CBL693串行电缆从 PC 上的装载机软件下载到这些模块的端口 316。IC693CBL316串行电缆也称为“站长电缆”，因为它可用于将以太网支持的终端或终端仿真器与站管理器 RS-232 端口连接，以便在没有转换器的情况下通过高速以太网网络快速访问站管理器软件。其他应用包括将 PC 串行端口连接到 IC11CPU693、IC351CPU693 和 IC352CPU693 CPU 模块上的 RJ-363 面板串行端口，用于编程、配置、固件升级和监控目的。

 IC693CBL316 USB 串行电缆转 RJ-11 连接器电缆可用于各种应用。它适用于将DSM的Rs-232端口连接到PC，依赖于协议，并且只能用于“串行通信”。 此电缆的另一个名称是“站长电缆”。它是可用于数据收集或编程的电缆之一，用于与GEIC PLC / PAC通信。因为它是RS-232电缆，所以它适用于RX3i CPE 305编程端口，也是以太网ETM001的“站管理器电缆”。该电缆采用屏蔽，长 3 英尺（1 米），一端为 6 针 RJ-11 连接器，另一端为 9 针 D 壳连接器。RJ-11 连接器的六个引脚连接到 9 针 D 壳连接器的五个针脚，后者上的第 5 个引脚（即 9 针 D 壳）连接到前者的第 3 个（绿色）和第 4 个（棕色）引脚（RJ-11）。

IC693CBL316电缆的一端连接到个人计算机上的 USB 端口，而另一端 （RJ-11） 连接到各种接口，如以下示例和应用程序所示。 通过连接到 CPU 11、351 和 352 上的 RJ-363 面板串行端口，IC693CBL316可用于监控、配置、固件更新和编程目的。在IC693DSM302模块上，电缆连接到模块的 RJ-11 COMM 端口，可用于加载运动程序和固件。这同样适用于IC693DSM314模块，在该模块中，模块的运动程序可以在PLC背板上加载。它可以连接到IC693CMM321以太网模块或具有内置以太网接口的IC693CPU364 CPU 模块上的工作站管理器端口。

GE Fanuc 90-30系列IC693CBL316串行接口电缆还可用于将个人计算机的9针串行端口连接到数字伺服模块的6针RJ-11 COMM端口（后端），以下载运动程序和固件升级。IC693CBL316 串行接口电缆是一个组件，由 1 米（3 英尺）串行电缆（屏蔽）、9 针 D 壳连接器、6 针 RJ-11 连接器和一些安装硬件组成。IC693CBL316串行接口电缆的一端有一个 9 针 D 壳连接器，用于连接到数字伺服模块上称为端口 232 的 RS-1 兼容端口，另一端有一个 6 针 RJ-11 连接器，用于连接到个人计算机的串行端口。

IC693CBL316 串行电缆组件 数字伺服模块

【英文介绍】

GE Fanuc IC693CBL316 Serial Interface cable is a serial cable assembly, Designed to interconnect CPU modules and digital servo modules such as IC693CMM321, IC693CPU351, IC693CPU352, IC693CPU363 IC693DSM302 and IC314DSM11 module with RJ-693 communication port to the PC Serial port. All CPU firmware upgrades and programming applications are downloaded from the loader software on the PC to port 316 of these modules using the IC1CBL693 serial cable. The IC693CBL316 serial cable is also known as the "webmaster cable" because it can be used to connect an Ethernet-supported terminal or terminal emulator to the station Manager RS-232 port for quick access to the station Manager software over a high-speed Ethernet network without a converter. Other applications include connecting PC serial ports to RJ-363 panel serial ports on IC11CPU693, IC351CPU693, and IC352CPU693 CPU modules for programming, configuration, firmware upgrade, and monitoring purposes.

IC693CBL316 USB serial cable to RJ-11 connector cable can be used in a variety of applications. It is suitable for connecting DSM's Rs-232 port to a PC, is protocol-dependent, and can only be used for "serial communication". Another name for this cable is "webmaster cable". It is one of the cables that can be used for data collection or programming for communication with GEIC PLC/PAC. Because it is an RS-232 cable, it is suitable for the RX3i CPE 305 programming port and is also the "station manager cable" for Ethernet ETM001. The cable is screened and 3 feet (1 meter) long, with a 6-pin RJ-11 connector on one end and a 9-pin D-shell connector on the other. The six pins of the RJ-11 connector are connected to the five pins of the 9-pin D-shell connector, and the fifth pin on the latter (i.e., the 9-pin D-shell) is connected to the third (green) and fourth (brown) pins (RJ-11) of the former.

One end of the IC693CBL316 cable is connected to a USB port on a personal computer, while the other end (RJ-11) is connected to various interfaces, as shown in the following examples and applications. By connecting to the RJ-363 panel serial ports on cpus 11, 351, and 352, the IC693CBL316 can be used for monitoring, configuration, firmware updates, and programming purposes. On the IC693DSM302 module, the cable is connected to the RJ-11 COMM port of the module, which can be used to load motion programs and firmware. The same applies to the IC693DSM314 module, in which the module's motion program can be loaded on the PLC backplane. It can be connected to the workstation manager port on the IC693CMM321 Ethernet module or the IC693CPU364 CPU module with a built-in Ethernet interface.

The GE Fanuc 90-30 Series IC693CBL316 serial interface cable can also be used to connect the 9-pin serial port of a personal computer to the 6-pin RJ-11 COMM port (back-end) of a digital servo module to download motion programs and firmware upgrades. The IC693CBL316 Serial interface cable is a component consisting of a 1 meter (3 ft) serial cable (shielded), a 9-pin D-shell connector, a 6-pin RJ-11 connector, and some mounting hardware. The IC693CBL316 serial interface cable has a 9-pin D-shell connector on one end for connecting to an RS-1-compatible port called port 232 on the digital servo module, and a 6-pin RJ-11 connector on the other end for connecting to the serial port of the personal computer.

IC693CBL316 串行电缆组件 数字伺服模块
