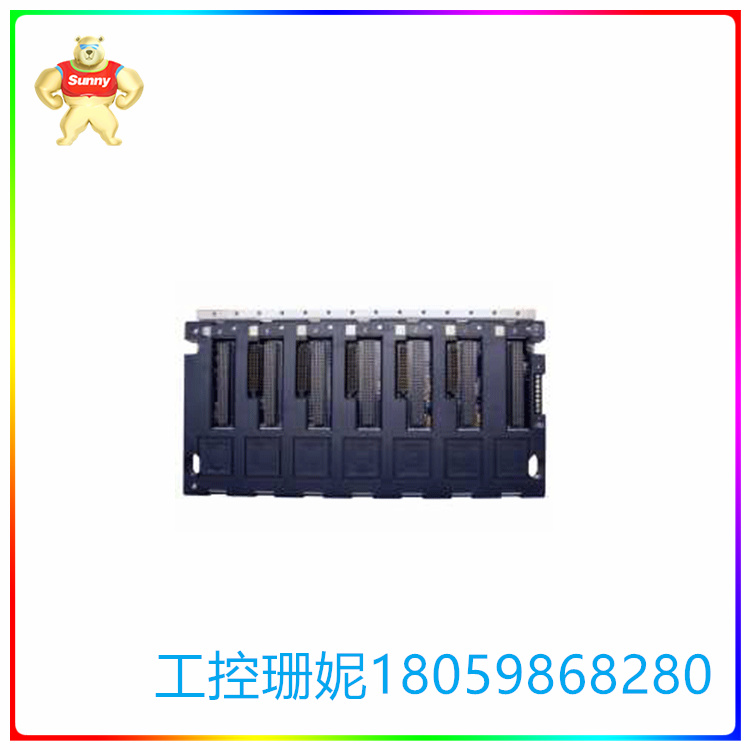

GE IC695CHS012 通用背板 具有 12 个插槽

【产品详情】

技术规格

模块类型： 通用控制器和 I/O

背板支持： PCI 和高速串行

插槽数量： 12

距离： 不适用

尺寸： 5.57 x 18.01 x 5.80 英寸（高 x 宽 x 深）

使用的内部电源： 240 mA @ 5 VDC， 600 mA @ 3.3 VDC

IC695CHS012是PACSystem RX3i通用背板。此背板具有 12 个插槽，支持高速外围组件互连 （PCI） 和串行总线连接。背板是必要的组件，因为它为 RX3i 模块和连接提供了外壳。它还托管模块之间进行内部通信的通信总线。

IC695CHS012的功耗为 600 mA @ 3.3 VDC 和 240 mA @ 5 VDC。它的物理尺寸为 18.01 x 5.57 x 5.80 （457.5 x 141.5 x 147.32），并支持水平安装。它安装在提供 IP20 / NEMA/UL 1 类防护等级的外壳内。为了自然冷却并促进足够的空气流通，背板在硬件的所有侧面都必须有 102 毫米或 4 英寸的间隙。对于 ATEX 2 区危险区域要求，IC695CHS012必须安装在具有机械强度的 IP54 或更高外壳内，以承受 3.5 焦耳的冲击能量。

IC695CHS012支持模块热插拔或可拆卸和带电插入。这提供了明显的优势，因为它有效地减少了停机时间，并允许在不影响所连接控制器和模块的当前操作模式的情况下进行维护活动，例如模块更换和完整性验证。此外，该背板还支持安装可选底板，例如控制器底座和以太网扩展底座。

IC695CHS012背板配有TB1接线端子，允许端接可选的外部24VDC电源，供某些IC693和IC694模块使用。推荐使用的电线是 AWG 14-22 单线。

GE IC695CHS012 通用背板 具有 12 个插槽

【英文介绍】

Technical specification

Module type: Universal controller and I/O

Backplane support: PCI and high-speed serial

Number of slots: 12

Distance: Not applicable

Dimensions: 5.57 x 18.01 x 5.80 inches (H x W x D)

Internal power supply used: 240 mA @ 5 VDC, 600 mA @ 3.3 VDC

The IC695CHS012 is a PACSystem RX3i backplane. This backplane has 12 slots and supports high-speed Peripheral component Interconnect (PCI) and serial bus connectivity. The backplane is a necessary component because it provides the housing for the RX3i module and connections. It also hosts the communication bus for internal communication between modules.

The power consumption of the IC695CHS012 is 600 mA@3.3 VDC and 240 mA@5 VDC. It has a physical dimension of 18.01 x 5.57 x 5.80 (457.5 x 141.5 x 147.32) and supports horizontal installation. It is installed in a housing offering IP20 / NEMA/UL Class 1 protection. To cool naturally and promote adequate air circulation, the backplane must have a gap of 102 mm or 4 inches on all sides of the hardware. For ATEX Zone 2 hazardous zone requirements, the IC695CHS012 must be installed in an IP54 or higher housing with mechanical strength to withstand 3.5 joules of impact energy.

The IC695CHS012 supports hot swappable or removable and plugged modules. This provides clear advantages as it effectively reduces downtime and allows maintenance activities, such as module replacement and integrity verification, to be carried out without affecting the current mode of operation of the connected controllers and modules. In addition, the backplane supports the installation of optional backboards, such as controller mounts and Ethernet expansion mounts.

The IC695CHS012 backplane is equipped with TB1 terminals to allow termination of an optional external 24VDC power supply for some IC693 and IC694 modules. The recommended wire is AWG 14-22 single wire.
