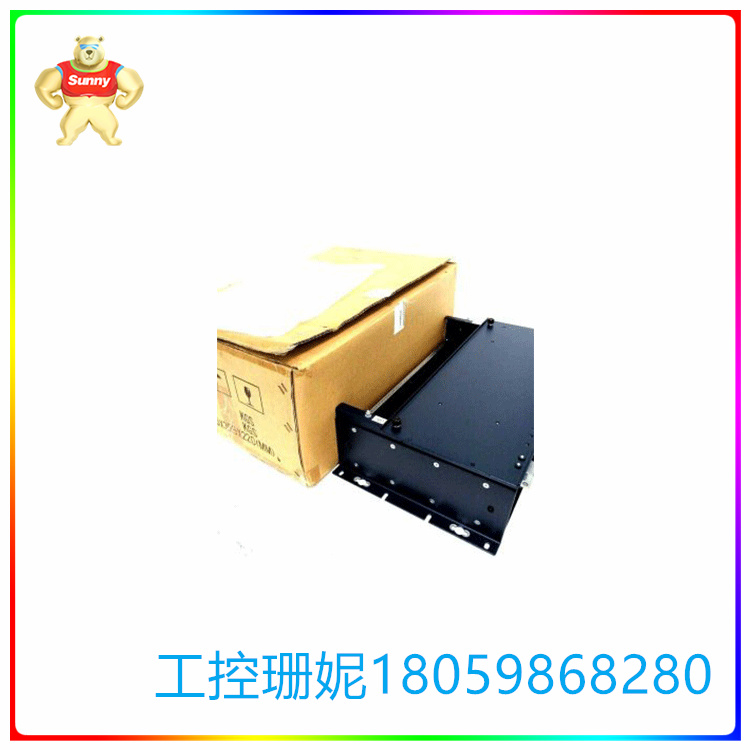

GE IC695ACC650 转换机架 九插槽机架

【产品详情】

RX3i IC695ACC650机架是GE Fanuc制造的转换机架。转换机架提供了一种将GE 90-70系列系统更改为RX3i PACSystems系统的解决方案，这将减少安装过程中的停机时间。它充当现有 90-70 系列和新型号之间的桥梁。RX3i 转换机架类似于 90-70 系列九插槽机架。IC695ACC650机架能够处理 I/O 适配器，并且可以连接到接线端子组件以进行现场接线。转换机架可以垂直和水平安装。机架使用 RX3i 系统的安装支架。转换机架易于安装和维护。它可以轻松安装在 7 插槽、12 插槽或 16 插槽背板上。

IC695ACC650机架支持可选的转接板。它配备了机械板和转接板。在安装转换机架期间，应拆下接线端子组件。机架使用扭矩为 2.5 N-m 的外加螺钉。在机架中安装 I/O 适配器后，应连接现场接线。它带有一个接地接线片，该接线片配备在机架上，不小于 12 AWG。机架为 RX3i 系统提供 LED 可视性。转换机架中有一个用于安装的开槽支架，有助于简化安装。IC695ACC650架由优质材料制成。它坚固耐用，适用于恶劣环境。转换机架应正确接地，以最大程度地降低触电风险。转换机架应适当通风，以保持适当的工作温度。

GE IC695ACC650 转换机架 九插槽机架

【英文介绍】

The RX3i IC695ACC650 rack is a conversion rack manufactured by GE Fanuc. The conversion rack provides a solution for changing GE 90-70 series systems to RX3i PACSystems systems, which will reduce downtime during installation. It acts as a bridge between the existing 90-70 series and the new models. The RX3i conversion rack is similar to the 90-70 series nine-slot rack. The IC695ACC650 rack is capable of handling I/O adapters and can be connected to terminal assemblies for field wiring. The transfer rack can be mounted vertically and horizontally. The rack uses the mounting bracket of the RX3i system. The conversion rack is easy to install and maintain. It can be easily installed on a 7-slot, 12-slot or 16-slot backplane.

The IC695ACC650 rack supports an optional adapter board. It is equipped with a mechanical board and a transfer board. Remove the terminal assembly during installation of the conversion rack. The frame uses external screws with a torque of 2.5 N-m. After installing the I/O adapter in the rack, connect the field cables. It comes with a ground lug, which is equipped on the rack and is not less than 12 AWG. The rack provides LED visibility for the RX3i system. A slotted bracket for mounting is included in the conversion rack to help simplify installation. The IC695ACC650 is made of high quality materials. It is rugged and suitable for harsh environments. The transfer frame should be properly grounded to minimize the risk of electric shock. The transfer frame should be properly ventilated to maintain a proper operating temperature.

GE IC695ACC650 转换机架 九插槽机架
