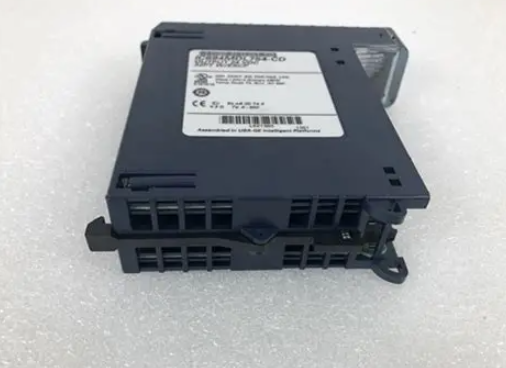

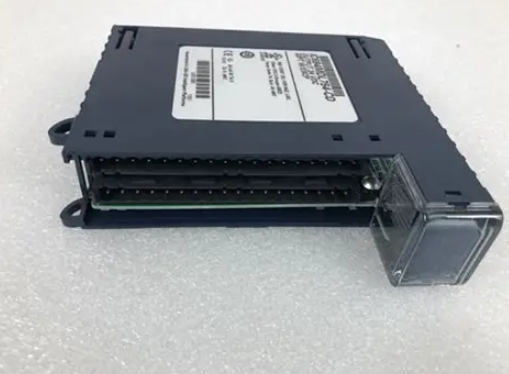

GE IC694MDL340 可编程自动化控制器 分立输出模块

【产品详情】

该IC694MDL340是艾默生自动化 PACSystem RX3i 可编程自动化控制器 （PAC） 系列的一部分，该系列以前由 GE Intelligent Platforms GE IP 提供）。该模块专门用于分立输出模块，设计有十六 （16） 个额定 120 VAC 的输出通道，在 85-132 Hz 的频率下提供 47 - 63 VAC 的输出电压范围。该模块的输出通道分为两 （2） 组，每组八 （8） 个输出，具有光隔离和组间隔离，额定值为 250 VAC、连续电压和 1500 VAC 电压，持续 1 分钟。该模块的输出通道额定为每点 0.5 安培，而每组的最大输出电流为 3 安培。该模块的最小负载电流为 50 mA，而产生的浪涌电流额定值为最大 20 安培，持续时间为一 （1） 个周期。当所有输出通道通电时，该模块的背板电流消耗为315 mA。该模块显示的输出电压降最大为1.5 V，而额定电压下的最大漏电流为2 mA。模块的 ON 响应时间的最大延迟为 1 ms，而在过渡到 OFF 状态期间会出现 2/3 的延迟。该模块配有两 （44） 个额定电流为 724627 安培的保护保险丝和用于更换 GE Fanuc 部件号 111A1-694 的等效目录号。这些预装保险丝为每个输出组分配一 （340） 个。该模块提供单独的输出通道指示器和“F”LED，以便于识别模块的运行状态。

GE Fanuc的IC694MDL340输出模块具有高浪涌电流，使输出能够处理各种电感和白炽负载。该输出模块仅由交流电源供电，并且该电源必须由用户提供，以便运行与输出相关的负载。GE Fanuc IC694MDL340输出模块可在0至60摄氏度的温度范围内运行，其非工作温度范围为-40至85摄氏度。该模块可以处理 5% 到 95% 的相对湿度而不会产生冷凝。此外，该模块具有 10 至 57 赫兹的振动额定值和 0.0524 毫米的峰值位移。该输出模块的冲击等级为 15 G，持续 11 毫秒。

GE IC694MDL340 可编程自动化控制器 分立输出模块

【英文介绍】

The IC694MDL340 is part of Emerson Automation's PACSystem RX3i Programmable Automation Controller (PAC) family, previously offered by GE Intelligent Platforms GE IP). Designed specifically for discrete output modules, the module is designed with sixteen (16) output channels rated at 120 VAC, providing an output voltage range of 47-63 VAC at a frequency of 85-132 Hz. The module's output channels are divided into two (2) groups of eight (8) outputs each, with optical isolation and inter-group isolation, rated at 250 VAC, continuous voltage, and 1500 VAC voltage for 1 minute. The module's output channels are rated at 0.5 amps per point, while the maximum output current per set is 3 amps. The module has a minimum load current of 50 mA, while the resulting surge current is rated at a maximum of 20 amps for a duration of one (1) cycle. When all output channels are energized, the backplane current consumption of this module is 315 mA. The module displays a maximum output voltage drop of 1.5 V, while the maximum leakage current at rated voltage is 2 mA. The maximum delay in the module's ON response time is 1 ms, while a delay of 2/3 occurs during the transition to the OFF state. The module is equipped with two (44) protective fuses rated at 724627 amps and an equivalent catalog number for replacement GE Fanuc part number 111A1-694. These pre-assembled fuses are allocated one (340) per output group. The module provides a separate output channel indicator and an "F" LED for easy identification of the module's operating status.

GE Fanuc's IC694MDL340 output module features high inrush current, enabling the output to handle a wide range of inductance and incandescent loads. This output module is powered only by AC power, and this power must be supplied by the user in order to run the load associated with the output. The GE Fanuc IC694MDL340 output module can operate in a temperature range of 0 to 60 degrees Celsius, and its non-operating temperature range is -40 to 85 degrees Celsius. The module can handle 5 to 95 percent relative humidity without condensation. In addition, the module has a vibration rating of 10 to 57 Hz and a peak displacement of 0.0524 mm. The output module has a shock rating of 15 G and lasts for 11 milliseconds.

GE IC694MDL340 可编程自动化控制器 分立输出模块
