IS200EGPAG1BCA GE 门极脉冲放大器板

IS200EGPAG1BCA GE 门极脉冲放大器板

产品描述

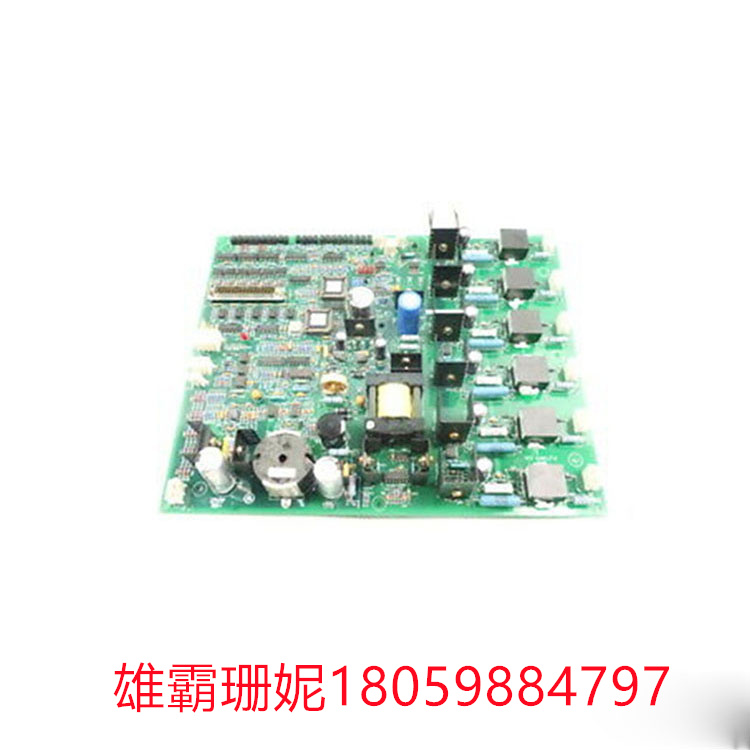

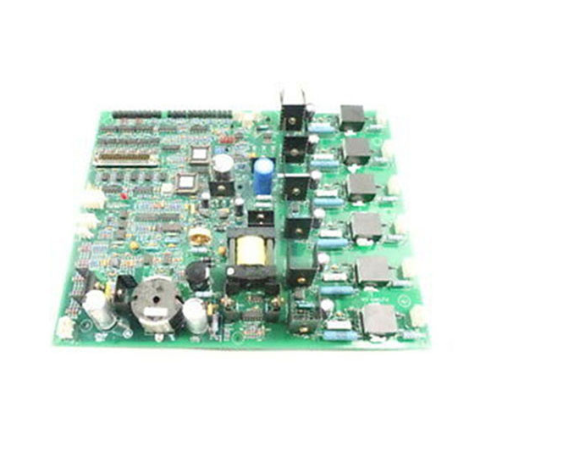

门极脉冲放大器板号为IS200EGPAG1B，位于电源转换柜中，可与电源转换模块相连。该模块是标记在桥接板和保护板/模块下的板之一，虽然该板可以独立运行，但通常需要从EPDM模块之一取电。

IS200EGPAG1B板接收安装在可控硅散热器上的两个热开关的反馈。这些开关在报警级别和跳闸级别触发和打开，并直接连接到IS200EGPAG1B。在触发开关之前必须达到的温度是190°F的跳闸水平和170°F的报警水平。开关既可以单独打开，也可以一起打开，如果只有一个开关打开，则发生了关于桥的过温警报，如果两个开关都打开，则表明发生了跳闸和故障。

IS200EGPAG1B板有五个跳线，这些跳线允许用户选择所需的特定应用配置，并在安装前轻松调整跳线配置。

IS200EGPAG1BCA GE 门极脉冲放大器板

Product description

The gate pulse amplifier board number IS200EGPAG1B is located in the power conversion cabinet and can be connected to the power conversion module. This module is one of the boards marked under the bridge board and the protection board/module, and although the board can operate independently, it usually needs to draw power from one of the EPDM modules.

The IS200EGPAG1B board receives feedback from two thermal switches mounted on the thyristor radiator. These switches trigger and open at alarm and trip levels and are directly connected to IS200EGPAG1B. The temperature that must be reached before the switch is triggered is the trip level of 190°F and the alarm level of 170°F. The switches can be turned on either individually or together, if only one switch is turned on, an overtemperature alarm about the bridge has occurred, if both switches are turned on, it indicates that tripping and failure have occurred.
