IS200TTURH1C 端接板 具有螺钉安装连接器

>>>>>型号:IS200TTURH1C      端接板    具有螺钉安装连接器

【功能描述】

IS200TTURH1C是通用电气的端接板。 该板旨在与该公司后来的 Speedtronic 系统兼容。这包括 Mark VI 和 Mark VIe 系统。AX Control 为这两个系统以及早期 Speedtronic 系统的组件提供现成的现成库存。自 1960 年代后期最早的迭代 （Mark I） 可用于工业燃气和蒸汽轮机管理以来，Speedtronic 系统逐渐变得更加复杂。

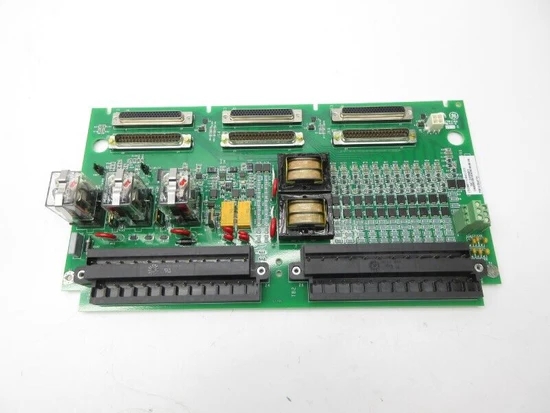

IS200TTURH1C主要是矩形的，有一些小切口。该板与其他 PCB（如 PTUR 和 VTUR 板）一起使用，以控制发电机的同步。 这主要是通过硬件和连接完成的。

该IS200TTURH1C具有多个表面贴装继电器。此外，该板使用可变电阻器，并且在电路板中心附近还有两个变压器。通过 d-shell 连接器（公头和母头）、插头连接器和接线端子与其他板组件进行通信。电路板上最大的两个接线端子具有螺钉安装连接器，

【英文介绍】

The IS200TTURH1C is a General Electric end board. The board was designed to be compatible with the company's later Speedtronic system. This includes the Mark VI and Mark VIe systems. AX Control provides a ready-made stock of components for both systems, as well as for earlier Speedtronic systems. Since the earliest iterations (Mark I) became available for industrial gas and steam turbine management in the late 1960s, Speedtronic systems have gradually become more complex.

The IS200TTURH1C is mostly rectangular with a few small cuts. The board is used in conjunction with other PCBS, such as PTUR and VTUR boards, to control the synchronization of the generator. This is mostly done through hardware and connectivity.

The IS200TTURH1C has multiple surface mount relays. In addition, the board uses variable resistors, and there are two transformers near the center of the board. Communicate with other board components via d-shell connectors (male and female), plug connectors, and wiring terminals. The two largest terminals on the board have screw mounted connectors,
