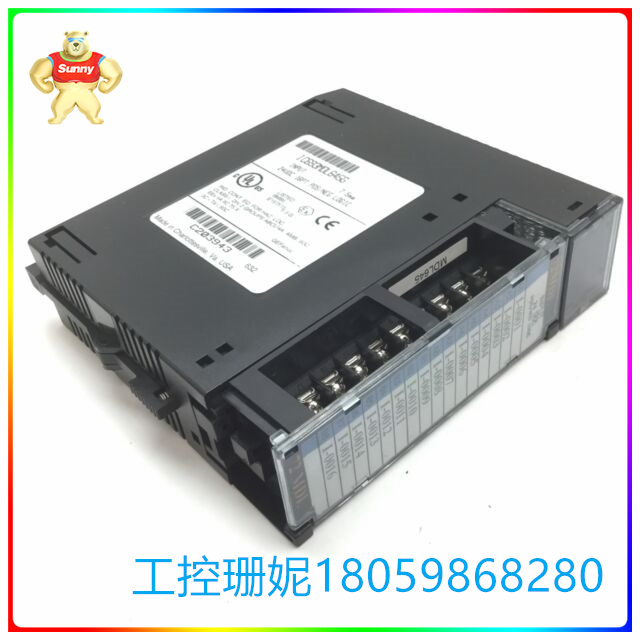

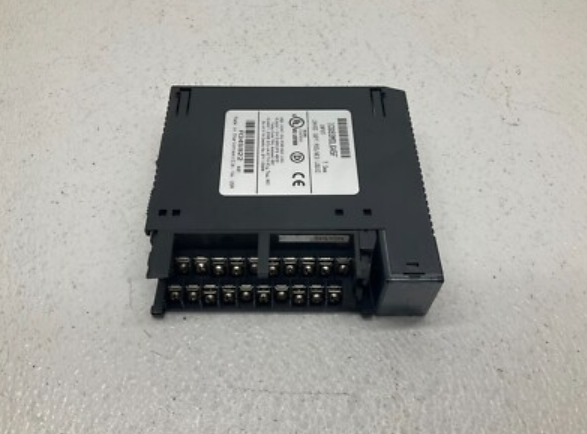

IC693MDL645G 24 伏直流正/负逻辑输入 接近开关

☆型号：IC693MDL645G 24 伏直流正/负逻辑输入 接近开关

【产品详情】

IC693MDL645是属于 90-30 系列可编程逻辑控制器的 24 伏直流正/负逻辑输入。它可以安装在任何具有 5 或 10 槽底板的 90-30 系列 PLC 系统中。该输入模块具有正逻辑特性和负逻辑特性。它每组有 16 个输入点。它使用一个通用的电源端子。用户有两种为现场设备供电的选项;直接供电或使用兼容的 +24BDC 电源。

IC693MDL645模块的双逻辑特性使其非常适合需要电子接近开关、限位开关和按钮的应用。需要注意的是，接线和电流识别信息位于插件上。该嵌件位于铰链门的内表面和外表面之间。接线信息位于插件朝外的一侧。当前标识位于插件的内侧，因此需要打开铰链门来查看此信息。该模块被归类为低电压，这就是为什么插件的外边缘被颜色编码为蓝色的原因。

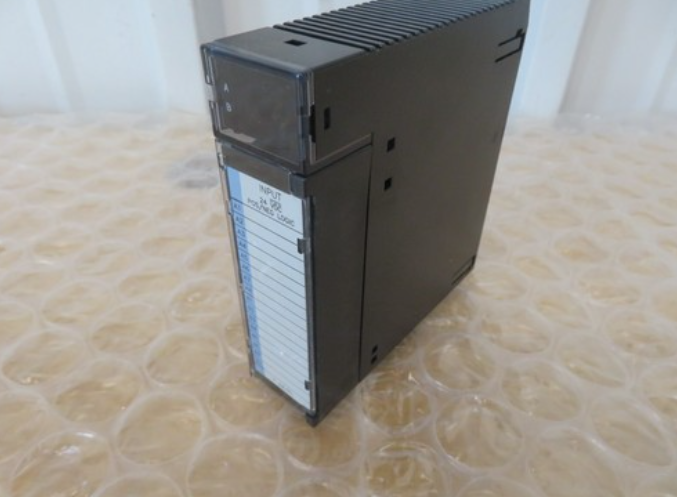

位于模块顶部的是两排水平排，每排有八个绿色 LED。对应于顶行输入点 1 至 8 的 LED 标记为 A1 至 A8，而对应于输入点 9 至 16 的第二行 LED 标记为 B1 至 B8。这些 LED 用于指示每个输入点的“开”或“关”状态。

这款 24 伏直流正/负逻辑输入模块的额定电压为 24 伏，直流输入电压范围为 0 至 +30 伏直流。励磁侧和逻辑侧之间的隔离电压为 1500 V。额定电压下的输入电流典型值为7 mA。对于其输入特性：导通状态电压为 11.5 至 30 伏直流电，而关断状态电压为 0 至 ±5 伏直流电。导通电流最小值为3.2 mA，关断状态电流最大值为1.1 mA。每个开关的开和关响应时间通常为 7 毫秒。背板上 5V 总线的 5V 功耗为 80 mA（当所有输入均打开时）。24V 时的功耗为 125 mA，来自隔离式 24 V 背板总线或用户提供的电源。

☆型号：IC693MDL645G 24 伏直流正/负逻辑输入 接近开关

【英文介绍】

The IC693MDL645 is a 24-volt DC positive/negative logic input for the 90-30 series of programmable logic controllers. It can be installed in any 90-30 series PLC system with a 5 or 10 slot baseplate. The input module has positive logic characteristics and negative logic characteristics. It has 16 input points per group. It uses a common power terminal. The user has two options for powering the field equipment; Direct power supply or use a compatible +24BDC power supply.

The dual logic nature of the IC693MDL645 module makes it ideal for applications that require electronic proximity switches, limit switches, and buttons. It should be noted that the wiring and current identification information is located on the plug-in. The ｉｎｓｅｒｔ is located between the inner and outer surfaces of the hinged door. The wiring information is located on the outward-facing side of the plug-in. The current identity is on the inside of the plug-in, so you need to open the hinged door to see this information. The module is classified as low voltage, which is why the outer edge of the plug-in is color-coded blue.

Located at the top of the module are two horizontal rows, each with eight green leds. Leds corresponding to input points 1 to 8 in the top row are labeled A1 to A8, while the second row of leds corresponding to input points 9 to 16 are labeled B1 to B8. These leds are used to indicate the "on" or "off" status of each input point.

This 24 volt DC positive/negative logic input module has a rated voltage of 24 volts and a DC input voltage range of 0 to +30 volts DC. The isolation voltage between the excitation side and the logical side is 1500 V. The typical input current at the rated voltage is 7 mA. For its input characteristics: the on-state voltage is 11.5 to 30 volts DC, while the off state voltage is 0 to ±5 volts DC. The minimum on-current value is 3.2mA, and the maximum on-off current value is 1.1mA. The on and off response time for each switch is typically 7 milliseconds. The 5V power consumption of the 5V bus on the backplane is 80 mA (when all inputs are turned on). The power consumption at 24V is 125 mA from the isolated 24V backplane bus or a user-supplied power supply.

☆型号：IC693MDL645G 24 伏直流正/负逻辑输入 接近开关
