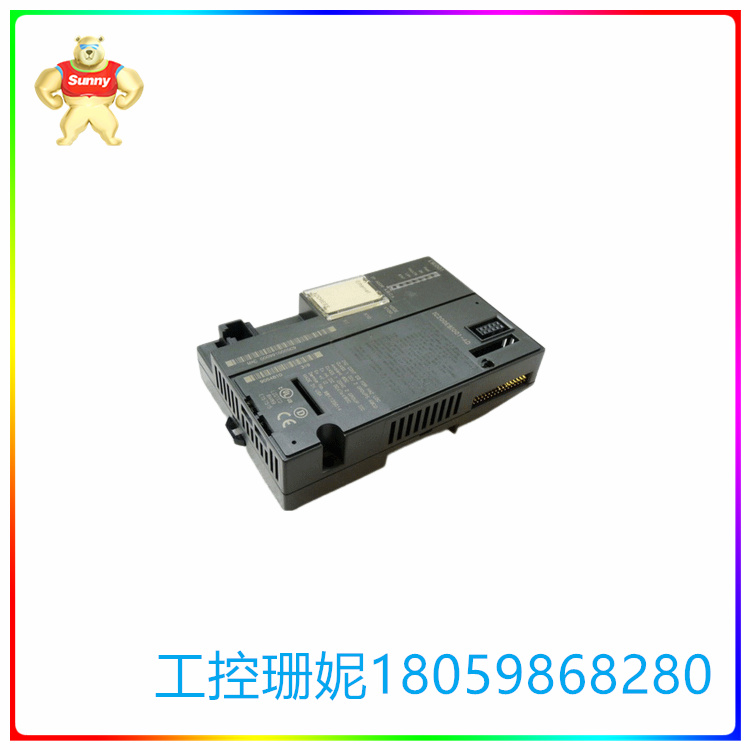

IC200ERM002 非隔离式扩展接收机模块 扩展模块

【产品详情】

该IC200ERM002是GE自动化控制公司生产的非隔离式扩展接收机模块。 作为扩展模块，该器件用于扩展 VersaMax 可编程逻辑控制器或输入和输出站的功能，以及增加连接模块的数量。此扩展模块最多支持 <> 组，每组最多 <> 个模块。

该模块宽 2.63 英寸（66.8 毫米），高 5.04 英寸（128 毫米）;但是，这不包括电源的尺寸。为了为任何连接的模块供电，本产品上安装了电源。注意：如果使用电源升压器载体或其他电源，则必须将其连接到此扩展模块上的主电源。三个板载 LED 灯指示设备状态。

该IC200ERM002可用于多机架或单端 VersaMax 输入和输出扩展系统。如果此扩展模块用于多机架实施，则最大电缆长度不能超过 15 米或大约 50 英尺。如果本产品用于只有一个扩展机架的单端实施，则电缆长度不能超过 3 米或大约 3.5 英尺。数据传输速率为每秒 2 兆比特或每秒 765.<> 兆比特，具体取决于实现。

IC200ERM002 有两个 26 针母头 D 型外壳扩展端口。顶部端口用于入站扩展电缆，底部端口用于以菊花链方式连接下一个扩展机架或连接到终结器插头。该产品还提供两种背板电流选项：5 V 或 3.3 V。对于 5V 背板，电流消耗为 70 毫安。对于 3.3V 背板，电流消耗为 20 毫安。

IC200ERM002 非隔离式扩展接收机模块 扩展模块

【英文介绍】

The IC200ERM002 is a non-isolated extended receiver module manufactured by GE Automation and Control. As an expansion module, the device is used to expand the functionality of the VersaMax programmable logic controller or input and output stations, as well as to increase the number of connected modules. This extension module supports a maximum of <> groups of <> modules per group.

The module is 2.63 inches (66.8 mm) wide and 5.04 inches (128 mm) high; However, this does not include the size of the power supply. In order to power any connected module, a power supply is installed on this product. Note: If you use a power booster carrier or other power supply, you must connect it to the main power supply on this expansion module. Three onboard LED lights indicate device status.

The IC200ERM002 can be used in multi-rack or single-ended VersaMax input and output expansion systems. If this expansion module is used in a multi-rack implementation, the maximum cable length cannot exceed 15 meters or approximately 50 feet. If this product is used in a single-ended implementation with only one extension rack, the cable length cannot exceed 3 meters or approximately 3.5 feet. The data transfer rate is 2 megabits per second or 765.<> megabits per second, depending on the implementation.

The IC200ERM002 has two 26-pin female D-type housing expansion ports. The top port is used for the inbound expansion cable and the bottom port is used to Daisy chain the next expansion rack or connect to the terminator plug. The product also offers two backplane current options: 5 V or 3.3V. For a 5V backplane, the current consumption is 70 mA. For a 3.3V backplane, the current consumption is 20 mA.

IC200ERM002 非隔离式扩展接收机模块 扩展模块
