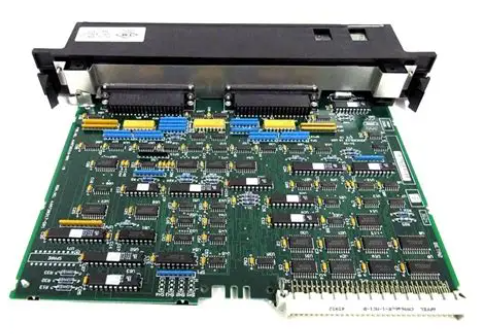

IC697MDL650 正逻辑输入模块 24 伏直流电

【产品详情】

技术规格

额定电压： 24 伏直流电

输入数量： 32 个输入（4 组，每组 8 个）

输入电流： 额定电压下 10 mA

所需电流： 0.3 安培

输入电压范围： -3 至 +30 伏直流电

直流电源： 是的

 GE Fanuc IC697MDL650 正逻辑输入模块是作为 GE 90-70 系列的一部分制造的。它有 32 个输入点，额定功率为 24 伏直流电。该模块总共提供 32 个输入点，分为 4 个不同的集合，每个集合有 8 个点。它具有不同的 I/O 参考，因为它们是用户可配置的，无需 DIP 开关或跳线。编程器件预装了 IC641 编程软件，以增强配置。一些可与 IC697MDL650 输入模块一起使用的编程设备包括兼容的 PC、IBM、XT 或 IC640/7 工业计算机。一些值得注意的特性包括可选的输入滤波器和兼容的接近开关。这些功能可以在任何 IC697 PLC 模块上找到，但该模块可以与其他可能不具有这些功能的 PLC 型号一起使用。

GE Fanuc 90-70 系列IC697MDL650输入模块在面板上带有 LED 指示灯，可向操作员显示 PLC 侧每个点的开/关状态。当模块遇到错误时，这些灯也会熄灭，LED 还用作调整辅助工具。IC697MDL650输入模块具有正逻辑特性，因此，其电流源是输入设备到负电源总线或公共用户设备。它与各种设备兼容，包括限位开关、按钮、选择开关以及电子 2 线和 3 线接近开关。GE Fanuc PLC正逻辑输出模块的输出可以帮助将输入直接驱动到IC697MDL650输入模块。

IC697MDL650 正逻辑输入模块 24 伏直流电

【英文介绍】

Technical specification

Rated voltage: 24 volts DC

Number of inputs: 32 inputs (4 groups of 8 each)

Input current: 10 mA at rated voltage

Required current: 0.3 amps

Input voltage range: -3 to +30 volts DC

Dc power supply: Yes

The GE Fanuc IC697MDL650 positive logic input module is manufactured as part of the GE 90-70 series. It has 32 input points and is rated at 24 volts DC. The module provides a total of 32 input points, divided into 4 different sets, each with 8 points. It has different I/O references because they are user configurable without the need for DIP switches or jumpers. The programming device comes pre-loaded with IC641 programming software for enhanced configuration. Some programming devices that can be used with the IC697MDL650 input module include a compatible PC, IBM, XT, or IC640/7 industrial computer. Some notable features include an optional input filter and a compatible proximity switch. These features can be found on any IC697 PLC module, but the module can be used with other PLC models that may not have these features.

The GE Fanuc 90-70 Series IC697MDL650 input module has an LED indicator on the panel to show the operator the on/off status of each point on the PLC side. These lights also go out when the module encounters an error, and the LED is also used as an adjustment aid. The IC697MDL650 input module has positive logic characteristics, so its current source is the input device to the negative power bus or the common user device. It is compatible with a variety of devices, including limit switches, buttons, select switches, and electronic 2-wire and 3-wire proximity switches. The output of the GE Fanuc PLC positive logic output module can help drive the input directly to the IC697MDL650 input module.

IC697MDL650 正逻辑输入模块 24 伏直流电
