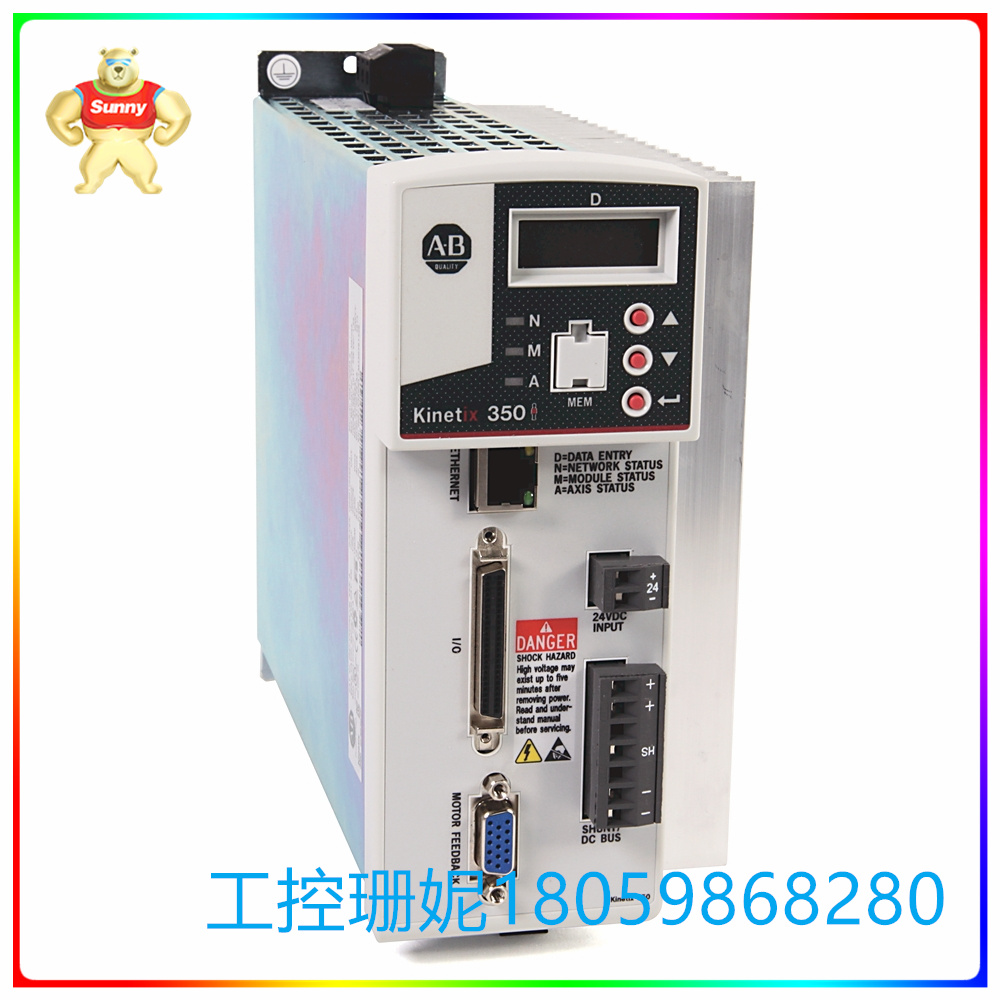

2097-V34PR3-LM 以太网 I/P 伺服驱动器 以太网通信接口

【产品详情】

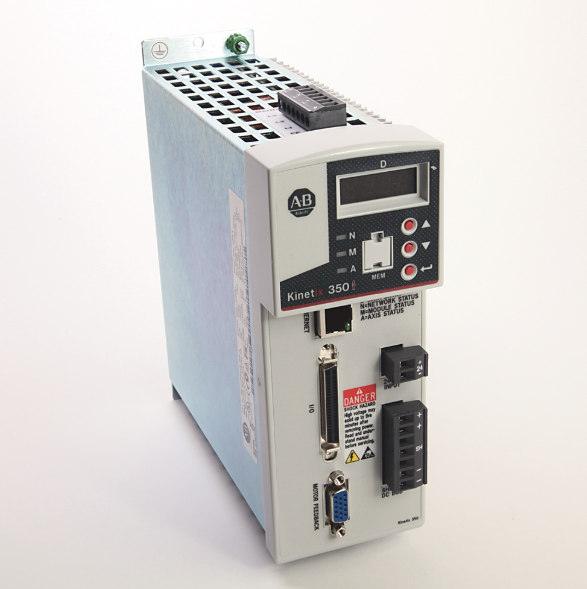

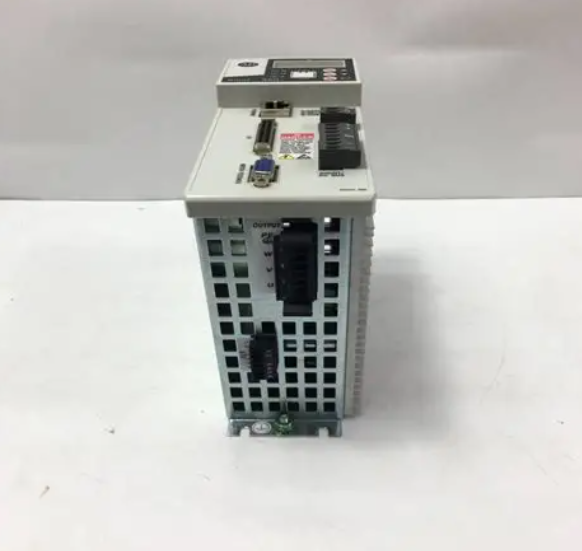

Allen-Bradley 2097-V34PR3-LM 是一款 Kinetix 300 以太网 I/P 伺服驱动器。该驱动器经过专门设计，可简化与更高和现代控制系统的集成，因为它带有嵌入式以太网通信接口，可用于与现有或新安装的以太网网络建立连接。通过嵌入式以太网端口，该驱动器可以集成到 CompactLogix 和 ControlLogix 可编程自动化控制器 （PAC） 中。

通过将变频器集成到支持的 PAC 产品中，变频器参数在转换为指令时成为用户程序的一个组成部分。这些参数可以根据条件的状态和预编程的参数集进行修改。

2097-V34PR3-LM 提供 320-528VAC rms 的交流输入电压要求、三相和 48-62 Hz 的输入频率，而最大主交流输入电流为 2.7 安培，标称和最大浪涌电流额定值为 4.5 安培（0 包）。该驱动器的连续输出电流 （rms） 为 2.0 A，连续输出电流 （0-pk） 为 2.8 安培，而连续输出电流 @ 480VAC 为 1.0 kW。此外，峰值输出电流 （rms） 为 6.0A，峰值输出电流 （0pk） 为 8.5 安培。该驱动器具有安全的扭矩关闭功能。此外，2097-V34PR3-LM 的额定过压为 850VDC，短路电流额定值为 100,000 A （rms）。

2097-V34PR3-LM 配备 1.0 kWatts 的额定功率，可为各种操作提供最佳功率。该器件还具有总额定电流为 2.8 安培的连续输出电流。该设备提供的这种电源选项组合确保了最佳功能和高性能，无论安装设置和连接到设备的特定设备如何。该器件需要 480 伏交流电的额定输入电压才能获得最佳性能，这适合大多数工业电源设置;因此，通常不需要额外的变压器来为该器件提供正确的输入电压额定值。想要依赖 2097-V34PR3-LM 的设施应确保他们获得在工业环境中经验丰富的专业技术人员进行设备的初始安装。必须完成各种写入操作才能获得足够的性能;不正确的安装可能会导致不稳定或不必要的操作故障，使设施面临进一步并发症的风险。

2097-V34PR3-LM 以太网 I/P 伺服驱动器 以太网通信接口

【英文介绍】

Allen-Bradley 2097-V34PR3-LM is a Kinetix 300 Ethernet I/P servo drive. The drive has been specifically designed to simplify integration with higher and modern control systems, as it comes with an embedded Ethernet communication interface that can be used to establish connections with existing or newly installed Ethernet networks. With an embedded Ethernet port, the driver can be integrated into CompactLogix and ControlLogix Programmable Automation controllers (PACs).

By integrating the frequency converter into supported PAC products, the frequency converter parameters become an integral part of the user's program when converted into instructions. These parameters can be modified based on the state of the condition and the pre-programmed set of parameters.

The 2097-V34PR3-LM offers AC input voltage requirements for 320-528VAC rms, three-phase and 48-62 Hz input frequencies, while maximum main AC input current is 2.7 amps and nominal and maximum surge current ratings are 4.5 amps (0 packets). The driver has A continuous output current (rms) of 2.0 A, a continuous output current (0-pk) of 2.8 amps, and a continuous output current @ 480VAC of 1.0 kW. In addition, the peak output current (rms) is 6.0A and the peak output current (0pk) is 8.5 amps. The drive has a safe torque off feature. In addition, the 2097-V34PR3-LM has an overvoltage rating of 850VDC and A short circuit current rating of 100,000 A (rms).

The 2097-V34PR3-LM is equipped with a 1.0 kWatts rating to provide optimal power for a wide range of operations. The device also has a continuous output current with a total fixed current of 2.8 amps. This combination of power options offered by the device ensures optimal functionality and high performance, regardless of the installation setup and the specific device connected to the device. The device requires a rated input voltage of 480 volts AC for optimal performance, which is suitable for most industrial power setups; Therefore, an additional transformer is usually not required to provide the correct input voltage rating for the device. Facilities that want to rely on the 2097-V34PR3-LM should ensure that they have access to professional technicians experienced in industrial environments for the initial installation of the equipment. Various write operations must be done to achieve adequate performance; Incorrect installation can lead to instability or unnecessary operational failures, putting the facility at risk of further complications.

2097-V34PR3-LM 以太网 I/P 伺服驱动器 以太网通信接口
