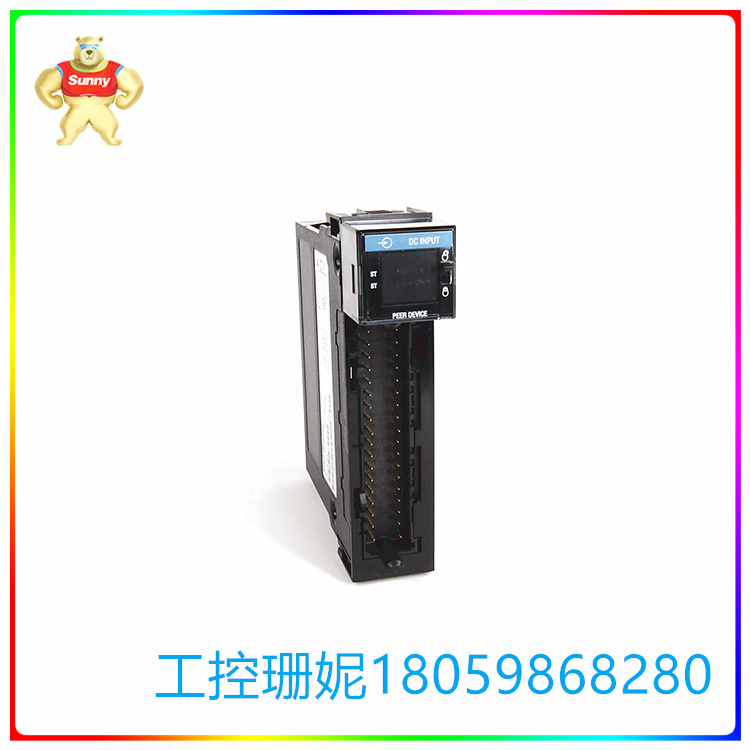

Allen-Bradley   1756-IB16ISOE 事件输入模块的 ISO 序列

【产品详情】

1756-IB16ISOE/A

型号类型： ControlLogix

事件输入模块的 ISO 序列

制造商

Allen-Bradley， Rockwell Automation

型号：

Allen-Bradley ControlLogix

其他信息

ControlLogix ISO 事件序列输入模块 24/48V DC，16 个独立隔离输入，36 针

预计运输尺寸

尺寸：1.5“ x 6.0” x 5.5“

（3.8 cm x 15.2 cm x 14.0 cm） 重量：0 磅 8.0 盎司（0.2 千克）

Allen-Bradley 1756-IB16ISOE是一款ControlLogix数字I/O模块。

该数字量输入模块有 16 个输入可用，这些输入均单独隔离。该模块需要 1756-TBCH 或 1756-TBS6H 的可拆卸接线端子外壳 （RTB）。

1756-IB16ISOE称为事件序列模块，其中事件时间以UTC（协调世界时）或CST（协调系统时间）格式报告。事件模块的序列在一毫秒内为信息添加时间戳。此功能将记录与输入数据变化相关的时间。所有这些都是按点计算的。它还提供基本的开/关检测，这是其他 ControlLogix 模块的通用功能。

该模块的工作电压范围为 10 至 55V DC，标称输入电压为 24V DC，电压类别为 24/48V DC 灌/拉。它在 5.1V 时的电流消耗为 320 mA，在 24V 时为 2mA，背板总功率为 1.7W。该模块的散热为 17.22 BTU/小时，而 5.5 摄氏度时的功耗为 60 W。该模块的导通电流从 9V DC 时的 2.0 mA 到 48V 至 55V DC 时的 5.1 mA 不等，但标称电流在 4V 至 31V DC 时为 4.5 mA。最大关断状态电流为1.5 mA，最大电压为5V。

Allen-Bradley   1756-IB16ISOE 事件输入模块的 ISO 序列

【英文介绍】

1756-IB16ISOE/A

Model Type: ControlLogix

The ISO sequence of the event input module

manufacturer

Allen-Bradley, Rockwell Automation

Model:

Allen-Bradley ControlLogix

Other information

ControlLogix ISO Event sequence input module 24/48V DC, 16 independent isolated inputs, 36 pins

Estimated shipping size

Size: 1.5 "x 6.0" x 5.5"

(3.8cm x 15.2cm x 14.0cm) Weight: 0 lb 8.0 oz (0.2 kg)

Allen-Bradley 1756-IB16ISOE is a ControlLogix digital I/O module.

The digital input module has 16 inputs available, all of which are individually isolated. The module requires a 1756-TBCH or 1756-TBS6H removable terminal housing (RTB).

1756-IB16ISOE is called the Event Sequence module, where event times are reported in UTC (Coordinated Universal Time) or CST (Coordinated System Time) format. The sequence of the event module adds a timestamp to the message within a millisecond. This feature records the time associated with changes in the input data. All of this is on a point basis. It also provides basic on/off detection, which is common to other ControlLogix modules.

The module has an operating voltage range of 10 to 55V DC, a nominal input voltage of 24V DC, and a voltage class of 24/48V DC irrigation/pull. It has a current consumption of 320 mA at 5.1V and 2mA at 24V, with a total backplane power of 1.7W. The module has a heat dissipation of 17.22 BTU/ hour, while the power consumption at 5.5 degrees Celsius is 60 W. The conduction current of the module varies from 2.0 mA at 9V DC to 5.1 mA at 48V to 55V DC, but the nominal current is 4.5 mA at 4V to 31V DC. The maximum off state current is 1.5mA and the maximum voltage is 5V.
