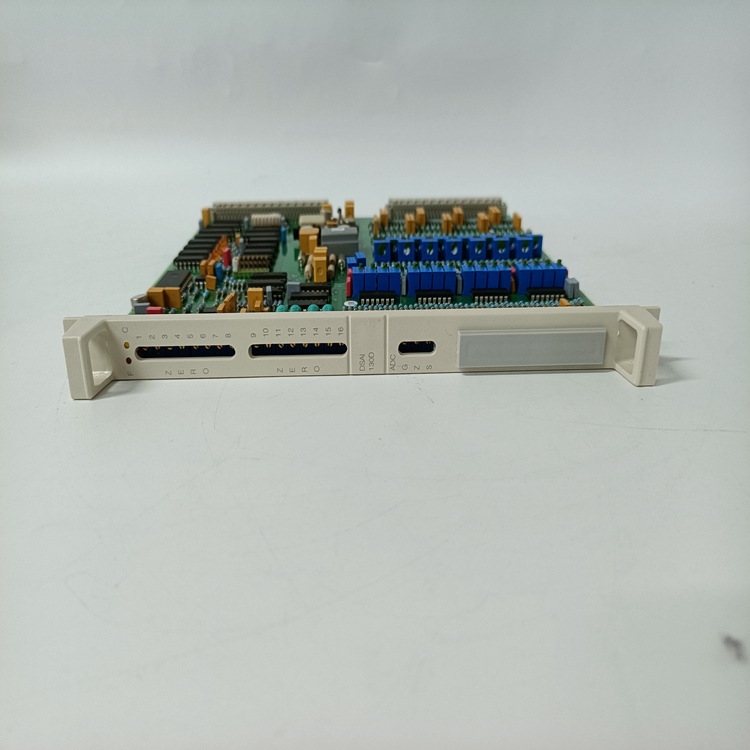

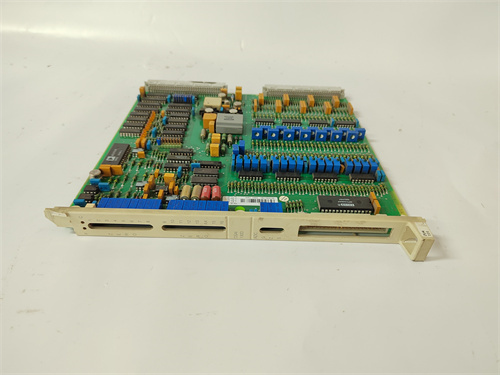

ABB DSAI 130 57120001-P 输入输出模块
【产品详情】
产品ID:57120001-P ABB型号名称:DSAI 130 目录描述:DSAI 130模拟输入板 详细描述:DSAI 130模拟输入板16通道。 订购DSAI 130 (57120001-P)时 必须指定已安装控制器的许可证号。
+/-10V,+/-20MA,0.025%,差分输入 16通道AI,0.025%,差异。 DSAI 130 (57120001-P)仅作为配件提供 为了保护安全控制器,杰作2x0或 当CMV %3E50V时。
对于标准过程控制器 (MP200/1和AC410/AC450/AC460)带CMV =%3C50V,复兴版DSAI 130A 应使用3BSE018292R1。
参见升级报价STU3BSE077316R1 注意!这部分被排除在2011/65/EU (RoHS)范围之外 如其中第2条第4款(c)、(e)、(f)和(j)项所规定 (参考:3bse 088609–欧盟符合性声明 - ABB Advant主过程控制系统) 种类 制品控制系统产品输入输出产品S100输入输出S100输入/输出模块DSAI 130模拟输入DSAI 130模拟输入 制品控制系统安全系统保护安全400系列安全保护400 1.6输入/输出模块 零件和服务控制系统800xA输入输出S100输入输出输入/输出模块 零件和服务控制系统带主软件的高级OCS控制器杰作200和200/1输入/输出模块 零件和服务控制系统带主软件的高级OCS输入输出S100输入输出输入/输出模块 全部显示... + 使用位置(作为“套件”的一部分)
附加说明 媒体描述:模拟输入板 技术信息:DSAI 130模拟输入板16通道。 订购DSAI 130 (57120001-P)时 必须指定已安装控制器的许可证号。
+/-10V,+/-20MA,0.025%,差分输入 16通道AI,0.025%,差异。 DSAI 130 (57120001-P)仅作为配件提供 为了保护安全控制器,杰作2x0或 当CMV %3E50V时。
对于标准过程控制器 (MP200/1和AC410/AC450/AC460)带CMV =%3C50V,复兴版DSAI 130A 3BSE018292R1 将被使用。
查看升级报价STU3BSE077316R1 产品类型:输入输出模块 排序 原产国:瑞典 波兰 协调制度代码:853890 -仅适用于或主要适用于税目85.35、85.36或85.37的仪器的零件。
-其他 海关税则号:85389091 规模 产品净深度/长度:327.6毫米 产品净高度:14.4毫米 产品净宽度:236.7毫米 产品净重:0.52公斤 环境的 WEEE类别:5.小型设备(外部尺寸不超过50厘米) 电池数量:0
其中整流电路模块的作用是把三相交流电整流成直流电;逆变电路模块的作用是有规律的控制逆变器中主开关器件的通与断,得到任意频率的三相交流电;中间直流环节模块用来缓冲无功能量。控制电路模块是变频器的指挥中心,主要由运算电路、检测电路、控制信号的输入、输出电路和驱动电路等构成,主要完成对逆变器的开关控制、对整流器的电压控制及完成各种保护功能,也是经常出故障的环节。
ABB DSAI 130 57120001-P 输入输出模块
【英文介绍】
Product ID:57120001-P ABB Model name :DSAI 130 Catalog Description :DSAI 130 Analog input board Details :DSAI 130 analog input board has 16 channels. You must specify the license number of the installed controller when ordering the DSAI 130 (57120001-P).
+/-10V, +/-20MA, 0.025%, differential input 16-channel AI, 0.025%, difference. DSAI 130 (57120001-P) is only available as an accessory to protect the safety controller, Masterpiece 2x0 or when CMV %3E50V.
For standard process controllers (MP200/1 and AC410/AC450/AC460) with CMV =%3C50V, the revived DSAI 130A should use 3BSE018292R1.
See Upgrade quote STU3BSE077316R1 Attention! This part is excluded from the scope of 2011/65/EU (RoHS) as provided for in Article 2 (4) (c), (e), (f) and (j) (ref :3bse 088609 - EU Declaration of Conformity - ABB Advant Master Process Control System) category Product Control System Product Input/Output Product S100 Input/Output S100 Input/Output module DSAI 130 Analog input DSAI 130 Analog input Product control System Security System Protection Security 400 Series Security Protection 400 1.6 Input/Output module Parts and Service Control System 800xA Input/Output S100 Input/Output Module Parts and Service control System Advanced OCS controller with master software Masterpiece 200 and 200/1 Input/Output Module Parts and Service control System Advanced OCS Input/Output S100 Input/Output Input/Output module with master software All show... + Use location (as part of the "Kit")
Additional Remarks Media Description: Analog input board Technical information :DSAI 130 Analog input board 16 channels. You must specify the license number of the installed controller when ordering the DSAI 130 (57120001-P).
+/-10V, +/-20MA, 0.025%, differential input 16-channel AI, 0.025%, difference. DSAI 130 (57120001-P) is only available as an accessory to protect the safety controller, Masterpiece 2x0 or when CMV %3E50V.
For standard process controllers (MP200/1 and AC410/AC450/AC460) with CMV =%3C50V, the revival DSAI 130A 3BSE018292R1 will be used.
View upgrade offer STU3BSE077316R1 Product Type: I/O Module Sort Country of Origin: Sweden Poland Harmonized System Code :853890 - Applicable only or mainly to parts of instruments under heading 85.35, 85.36 or 85.37.
- Other Customs Tariff Code :85389091 Scale Product Net Depth/Length :327.6 mm Product Net height :14.4 mm Product Net width :236.7 mm Product net weight :0.52 kg Environmental WEEE Category :5. Small devices (external size does not exceed 50 cm) Number of batteries :0
The function of the rectifier circuit module is to rectify the three-phase alternating current into direct current. The function of the inverter circuit module is to control the on and off of the main switch device in the inverter regularly, and obtain the three-phase alternating current of any frequency. The intermediate DC link module is used to buffer non-functional quantities. The control circuit module is the command center of the inverter, which is mainly composed of the operation circuit, the detection circuit, the input and output circuit of the control signal and the drive circuit, etc., which mainly completes the switch control of the inverter, the voltage control of the rectifier and the completion of various protection functions, and is also the link that often fails.
