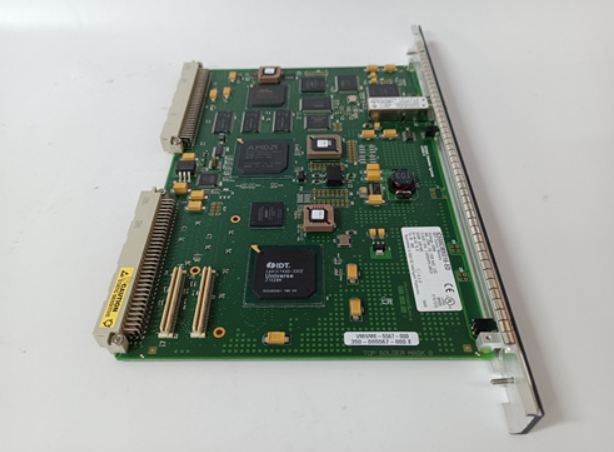

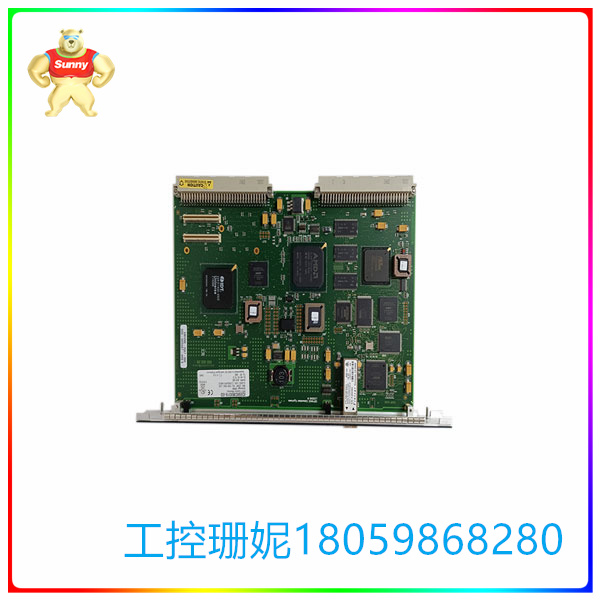

VMIVME-5567-000  控制存储器交换模块  存储模块

【产品详情】

IC698CMX016是可编程自动化控制器(PAC)PAC system RX7i平台的控制存储器交换模块。该组件本质上是一个存储模块，但IC698CMX016的主要功能是使用反射存储技术在光纤网络上的PLC和兼容设备之间提供确定性的数据共享。该模块配有16 MB SDRAM的奇偶校验反射内存。它安装在RX7i机架上，占据背板的一个插槽。该模块独立于CPU，因为它不需要任何CPU处理来运行。此外，它与VMIC 5565系列反射式存储设备网络兼容。

IC698CMX016的通信接口包括一个LC光纤端口，在多模光纤介质上支持2.12 Gbaud的传输速度，最大距离为300米或984.25英尺。支持的动态数据包大小范围为4-64字节，最大网络传输速率为43兆字节/秒(4字节数据包)至174兆字节/秒(64字节数据包)。该内存模块能够与每个网络多达256个节点进行通信，并支持冗余传输模式操作。

IC698CMX016前面板配有各种LED状态指示器，如OK、CONFIG、OWN DATA和SIGNAL DETECT。要利用IC698CMX016的功能，必须将其安装在带有2.00版或更高版本固件的s RX7i CPU、带电源的RX7i CPU机架上，并使用ProFi cy Machine Edition–Logic Developer PLC 4.5版或更高版本进行配置。

GE Fanuc IC698CMX016通信模块是Rx7i系统的控制存储器交换或CMX模块。该模块在PLC和高速光纤网络反射式存储系统上连接的现场设备之间提供预编程数据共享。IC698CMX016模块可以在单个反射内存网络中容纳多达256个节点，并且它与连接到每个节点的VMIC 5565系列反射内存设备兼容。每个VMIC 5565设备通过光缆以菊花链环路的形式连接到2.12 GBaud光纤网络，IC698CMX016通信模块可以在每秒43兆字节(4字节动态数据包大小)到每秒174兆字节(64字节动态数据包大小)的可配置传输范围内传输现场数据。它具有16 MB的用户存储器(SDRAM)和来自机器版(ME)逻辑开发PLC的可靠软件配置，版本4.5或更高版本的软件。

VMIVME-5567-000  控制存储器交换模块  存储模块

【英文介绍】

The IC698CMX016 is a control memory switch module for the Programmable Automation Controller (PAC)PAC system RX7i platform. The component is essentially a storage module, but the main function of the IC698CMX016 is to provide deterministic data sharing between PLCS and compatible devices on a fiber optic network using reflective storage technology. The module is equipped with 16 MB SDRAM of parity checked reflected memory. It is mounted on the RX7i rack and occupies a slot in the backplane. This module is CPU independent because it does not require any CPU processing to run. In addition, it is compatible with the VMIC 5565 series reflective storage device network.

The IC698CMX016's communication interface includes an LC fiber port that supports 2.12 Gbaud transfer speeds over multimode fiber media over a maximum distance of 300 meters or 984.25 feet. Supported dynamic packet sizes range from 4-64 bytes, with maximum network transfer rates ranging from 43 megabytes/SEC (4-byte packets) to 174 megabytes/SEC (64-byte packets). The memory module is capable of communicating with up to 256 nodes per network and supports redundant transport mode operation.

The IC698CMX016 front panel is equipped with various LED status indicators such as OK, CONFIG, OWN DATA, and SIGNAL DETECT. To take advantage of the capabilities of the IC698CMX016, it must be installed on an sRX7i CPU with firmware version 2.00 or later, an RX7i CPU rack with power supply, And configure using ProFi cy Machine Edition - Logic Developer PLC version 4.5 or later.

The GE Fanuc IC698CMX016 communication module is the control memory exchange or CMX module of the Rx7i system. The module provides pre-programmed data sharing between the PLC and field devices connected on a high-speed fiber-optic network reflective storage system. The IC698CMX016 module can accommodate up to 256 nodes in a single reflective memory network, and it is compatible with the VMIC 5565 series reflective memory devices connected to each node. Each VMIC 5565 device is connected to a 2.12 GBaud fiber optic network in the form of a Daisy chain loop via optical cable, and the IC698CMX016 communication module can transmit field data over a configurable transmission range of 43 megabytes per second (4 bytes dynamic packet size) to 174 megabytes per second (64 bytes dynamic packet size). It features 16 MB of user memory (SDRAM) and a reliable software configuration from the Machine Edition (ME) Logic Development PLC, software version 4.5 or later.

VMIVME-5567-000  控制存储器交换模块  存储模块
