GE STXCCL001 网络接口套件制造

【产品详情】

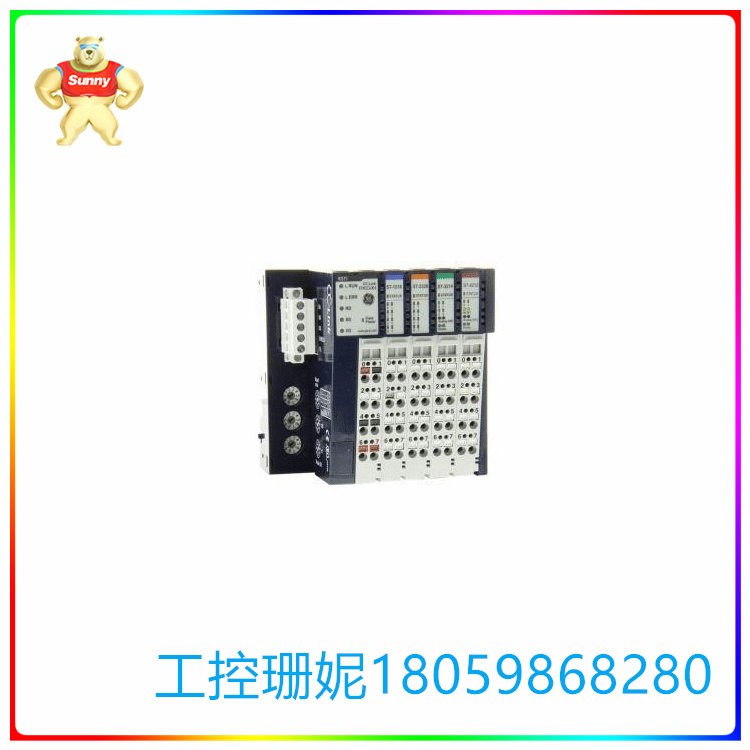

STXKITCCL001模块是 GE Fanuc 作为网络接口套件制造的 CC-link RSTi 入门套件。此入门套件中的模块配备 24 伏直流输入 （ST-1218）。STXKITCCL001模块具有颜色编码的模块识别选项卡，可增强其在系统内的可追溯性并允许即时识别。在模块的下部，有一个免工具弹簧夹，可用于将STXKITCCL001模块紧紧地固定在安装表面上，以防止任何设备移动或分离。它还配备了一个易于拆卸的接线端子。接线端子周围有彩色绝缘体的电线，接线端子是连接测试点。块和电线是为测试电路而制造的，它们在印刷电路板上是金属的。

STXKITCCL001模块的创新设计使电源和通信数据能够轻松地从一个模块传递到另一个模块。该模块带有一个集成的联锁机构，用于并排固定模块，以及一个类似的机构，用于安装在DIN导轨上。模块上的引脚 0（24 伏直流电）和引脚 1（0 伏直流电）通过 5 伏直流总线引脚将电源从一个模块传递到下一个模块。系统应由独立电源模块和现场电源模块组成，引脚 4 和 5 的额定电压为 0 伏直流，引脚 6 和 7 的额定电压为 24 伏直流。该模块支持 I/O，可分别支持 14 AWG 规格线和其他串行通信电缆、端盖以及模拟输入和模拟输出模块，如 ST-3214） 和 ST-4212。此外，它还具有 Profinet 网络适配器。

GE STXCCL001 网络接口套件制造

【英文介绍】

The STXKITCCL001 module is a CC-link RSTi starter kit manufactured by GE Fanuc as a network interface kit. The modules in this starter kit are equipped with a 24-volt DC input (ST-1218). The STXKITCCL001 module has a color-coded module identification TAB that enhances its traceability within the system and allows for instant identification. On the lower part of the module, there is a tool-free spring clamp that can be used to secure the STXKITCCL001 module tightly to the mounting surface to prevent any equipment from moving or separating. It also comes with an easy-to-remove terminal. A wire with colored insulators around the terminal, which is the connection test point. Blocks and wires are manufactured for testing circuits, and they are metal on printed circuit boards.

The innovative design of the STXKITCCL001 module enables power and communication data to be easily transferred from one module to another. The module comes with an integrated interlocking mechanism for holding the module side-by-side, and a similar mechanism for mounting on the DIN rail. Pin 0 (24 volts DC) and pin 1 (0 volts DC) on the module pass power from one module to the next via a 5 volt DC bus pin. The system should consist of a separate power supply module and a field power supply module with 0 V DC rated for pins 4 and 5 and 24 V DC rated for pins 6 and 7. The module supports I/O and can support 14 AWG specification cables and other serial communication cables, end caps, and analog input and analog output modules such as ST-3214 and ST-4212, respectively. In addition, it has a Profinet network adapter.
