IC670PBI001 接口单元 总线接口接线

【产品详情】

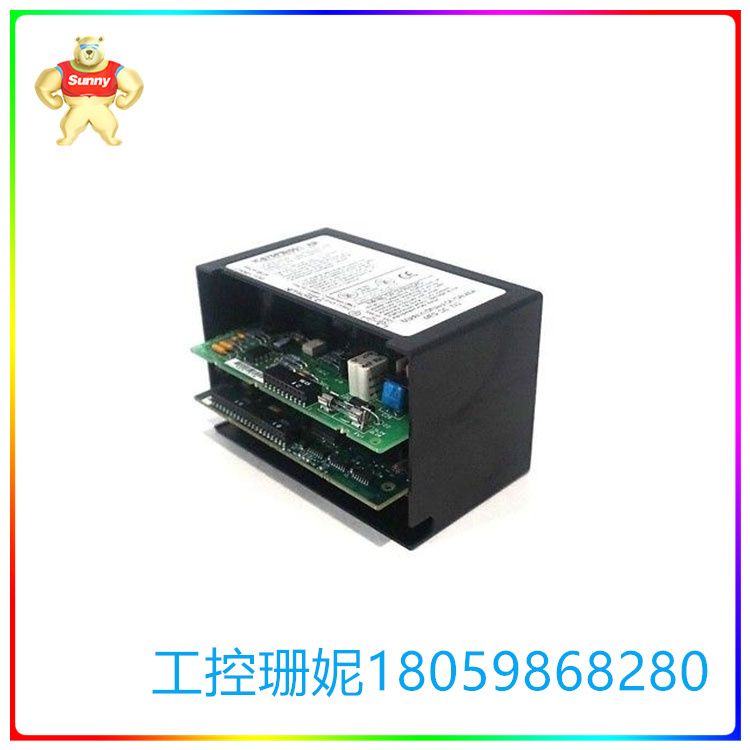

IC670PBI001是Profibus接口单元，是GE Fanuc现场控制系列的一部分。该电气设备安装在总线接口接线端子上，并由外部 24 VDC 电源电压供电。它允许现场控制I/O模块通过Profibus网络与GE CPU模块交换数据，从而实现高速分布式I/O架构。

IC670PBI001 配有两 （2） 个 9 针 D 型外壳连接器，其中一个端口用作手持编程器 （HHP） 端口，用于下载和监控IC670PBI001，而另一个端口用作网络接口端口，通过 Profibus 网络以 9.6、19.2、93.75、187.5、500、1500 Kbits、3 Mbits 的标准数据传输速度进行通信。 6 Mbit 和 12 Mbits。此端口需要使用屏蔽双绞线或 Belden #9463 电缆作为 Profibus 网络物理介质。该端口支持线性 Profibus 拓扑或菊花链连接，网络的第一个节点和最后一个节点由电阻器端接。一台IC8PBI670最多可托管八 （001） 个现场控制 I/O 模块。

该IC670PBI001安装在总线接口单元 （BIU） 接线端子上时工作。该接线端子提供安装组件，允许将模块组件安装在DIN导轨上。它还支持通过安装片进行面板安装，BIU接线端子也提供安装片。

为了配置该模块的节点地址，它附带了一个 DIP 开关阵列，该开关位于IC670PBI001的 Profibus 网络接口上。它是一个八 （8） 个 DIP 开关阵列，用于配置地址 00-32。

现场控制IC670PBI001 Profibus总线接口单元属于GE Fanuc现场控制系列的模块化和分布式I/O模块和控制产品。它与各种主机体系结构兼容。该模块是任何现场控制PLC系统的核心。IC670PBI001 Profibus 总线接口单元提供 I/O 扫描设施和智能处理，以及多达 8 个 I/O 模块的组功能配置，以构建高效的现场控制站系统。该现场控制设备的一些功能包括适应各种网络的开放式架构、简单的布线过程、对备件的最少需求、DIN 导轨安装设施以及简单的安装和维护过程。

IC670PBI001 Profibus 总线接口单元用于将 Profibus I/O 连接到现场控制 I/O 模块。它还为整个设备、其 I/O 模块和继电器提供内置诊断功能。总线接口模块接线端子用于安装总线接口模块。可以在不更改接线和重新配置控制站的情况下拆卸或更换模块。IC670PBI001 Profibus 总线接口单元还提供智能处理功能，例如可选的 I/O 默认值、模拟范围选择、故障报告和模拟缩放。它可以安装在面板内部、操作台后面、接线盒中以及空间有限的位置。用户可以将设备安装在 NEMA 外壳中。该模块体积小，设计坚固，铝制外壳坚固。建议使用 24 伏直流电源的外部电源为模块供电，输入电源线配有可更换的慢熔保险丝，无需更换接线即可更换。

IC670PBI001 接口单元 总线接口接线

【英文介绍】

The IC670PBI001 is a Profibus interface unit that is part of the GE Fanuc Field control family. The electrical device is mounted on the bus interface terminal and is powered by an external 24 VDC supply voltage. It allows field control I/O modules to exchange data with GE CPU modules over a Profibus network, enabling a high-speed distributed I/O architecture.

The IC670PBI001 is equipped with two (2) 9-pin type D housing connectors, with one port used as a handheld programmer (HHP) port for downloading and monitoring the IC670PBI001, and the other port used as a network interface port. Standard data transmission speeds of 9.6, 19.2, 93.75, 187.5, 500, 1500 Kbits and 3 Mbits are used for communication over the Profibus network. 6 Mbit and 12 Mbits. This port requires the use of shielded twisted pair or Belden #9463 cable as the Profibus network physical media. This port supports linear Profibus topology or Daisy chain connections, where the first and last nodes of the network are terminated by resistors. One IC8PBI670 can host up to eight (001) field control I/O modules.

The IC670PBI001 operates when mounted on a Bus interface unit (BIU) terminal. The terminal provides a mounting assembly that allows the module assembly to be mounted on a DIN rail. It also supports panel mounting via mounting strips, which are also available for BIU terminals.

To configure the node address of the module, it comes with an array of DIP switches located on the Profibus network interface of the IC670PBI001. It is an array of eight (8) DIP switches for configuring addresses 00-32.

Field control IC670PBI001 Profibus Bus interface unit belongs to the GE Fanuc Field control family of modular and distributed I/O modules and control products. It is compatible with various host architectures. This module is the heart of any field control PLC system. The IC670PBI001 Profibus Bus interface unit provides I/O scanning facilities and intelligent processing, as well as group functional configuration of up to 8 I/O modules to build efficient field control station systems. Some of the features of this field control unit include an open architecture for various networks, simple wiring processes, minimal need for spare parts, DIN rail mounting facilities, and simple installation and maintenance processes.

The IC670PBI001 Profibus Bus interface unit is used to connect Profibus I/O to the field control I/O module. It also provides built-in diagnostics for the entire device, its I/O modules and relays. Bus interface module Wiring terminals are used to install bus interface modules. Modules can be removed or replaced without changing wiring and reconfiguring control stations. The IC670PBI001 Profibus Bus interface unit also provides intelligent processing functions such as optional I/O defaults, analog range selection, fault reporting, and analog scaling. It can be installed inside the panel, behind the console, in a junction box, and where space is limited. Users can install the device in the NEMA housing. The module is small in size, has a robust design and a sturdy aluminum housing. You are advised to use the external power supply of the 24 volt DC power supply for the module. The input power cable is equipped with a replaceable slow fuse. You can replace the input power cable without replacing the cable connection.

IC670PBI001 接口单元 总线接口接线
