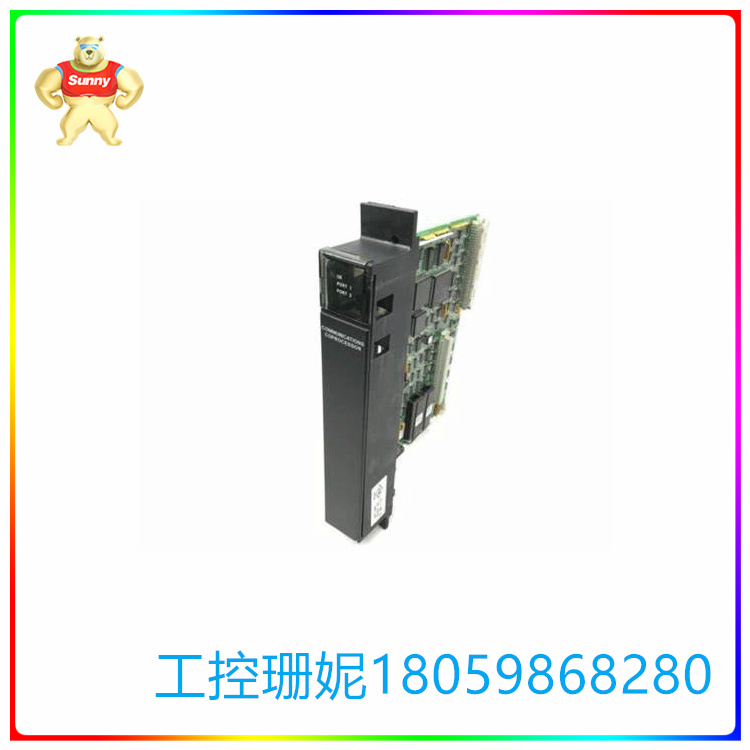

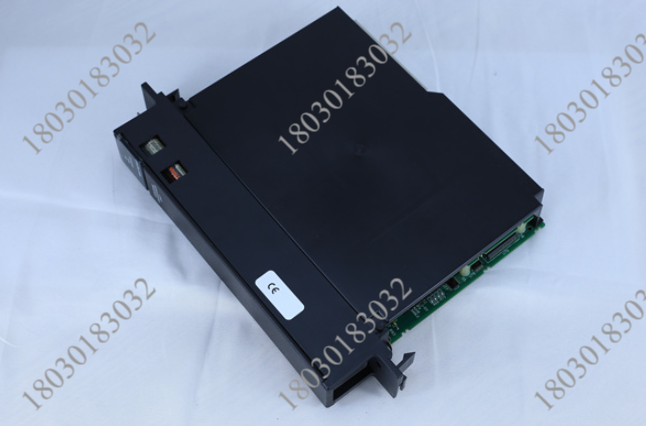

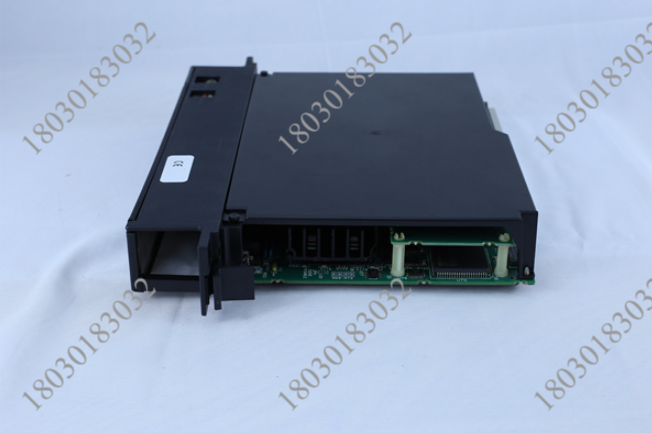

IC697CMM741 以太网可编程控制器 接口设备

【产品详情】

IC697CMM741 是 90-70 系列中的以太网可编程控制器。IC697CMM741控制器是IC651工厂LAN硬件和软件产品系列的成员。该系列为互连自动化控制器提供高性能解决方案。IC697CMM741控制器设计为插入 IC697 PLC 机架中的一个插槽。IC697CMM741控制器允许将 PLC 直接连接到 IEEE 802.3 CSMA/CD LAN。它配备了标准的 15 针 AUI 端口连接，专为 IC697 控制器而设计。AUI或收发器电缆可由用户提供。它使用PLC机架中的单个插槽，并且软件易于加载和/或升级。此外，软件在停电期间至少可以保存六个月。

将IC697CMM741控制器安装到 PLC 机架中时，应关闭机架的电源。将电池与前盖朝前连接，铰链向右连接。电池电缆的卡舌应背对板表面。将电池连接到其中一个连接器后，只需按下即可锁定。将控制器插入适当的插槽（通常是 CPU 或 BTM 右侧的第一个插槽）。锁定时不要强行推板。需要注意的是，如果以太网控制器左侧有空插槽，则以太网控制器将无法正常工作。注意： 绿色地线必须牢固地固定在机架的机箱上，并且机架必须接地以确保 LAN 的功能。

IC697CMM741接口设备由 GE Fanuc 在其 90-70 系列产品线中制造，用于 TCP/IP 以太网 LAN 设备或 GE 90-70 系列 MMS 设备的接口。IC697CMM741接口也是一个以太网控制器，它可以将PLC直接连接到LAN，如IEEE 802.3 CSMA/CD LAN。该以太网控制器专为 GE 90-70 系列 IC 697 可编程控制器而设计，只需在 PLC 机架中安装 1 个插槽即可牢固安装。IC697CMM741以太网控制器使用的软件可以通过RAM轻松加载或升级，并且控制器可以在断电后保留其软件至少6个月。它可以使用的软件包括 TCP/IP 和 MMS/OSI 通信软件、完整的 Windows 和 DOS 编程和通信软件，以及用于全面诊断和站点管理的软件。

GE 系列 90-70 IC697CMM741以太网控制器和接口可以通过用户提供的收发器电缆或 AUI（连接单元接口）电缆通过其具有 15 个引脚的标准 D 型连接器连接到收发器设备。电缆和收发器是以太网控制器连接到以太网 LAN 的方式。用户可以通过控制器的 3 个 LED 监控控制器接口的状态。IC697CMM741以太网控制器中的RAM使用电池进行备份，RAM存储所有通信软件。该控制器和接口设备还具有ROM和固件，用于存储其使用的基本功能、配置软件和诊断功能。

IC697CMM741 以太网可编程控制器 接口设备

【英文介绍】

The IC697CMM741 is an Ethernet programmable controller in the 90-70 series. The IC697CMM741 controller is a member of the IC651 factory LAN hardware and software product family. The system provides high-performance solutions for interconnected automation controllers. The IC697CMM741 controller is designed to fit into a slot in the IC697 PLC rack. The IC697CMM741 controller allows the PLC to be connected directly to the IEEE 802.3CSMA /CD LAN. It comes with a standard 15-pin AUI port connection and is designed for the IC697 controller. AUI or transceiver cables can be supplied by the user. It uses a single slot in the PLC rack, and the software is easy to load and/or upgrade. In addition, the software can be stored for at least six months during a power outage.

When installing the IC697CMM741 controller into the PLC frame, power off the frame. Connect the battery to the front cover facing forward and the hinge to the right. The latch of the battery cable should face away from the surface of the plate. Once the battery is connected to one of the connectors, it can be locked by simply pressing. Insert the controller into the appropriate slot (usually the first slot on the right side of the CPU or BTM). Do not push the board when it is locked. Note that if there is a vacant slot on the left of the Ethernet controller, the Ethernet controller cannot work properly. Note: The green ground wire must be securely attached to the chassis of the rack, and the rack must be grounded to ensure LAN function.

The IC697CMM741 interface device is manufactured by GE Fanuc in its 90-70 series product line for use as an interface to TCP/IP Ethernet LAN devices or GE 90-70 series MMS devices. The IC697CMM741 interface is also an Ethernet controller, which can connect the PLC directly to a LAN such as IEEE 802.3CSMA /CD LAN. The Ethernet controller is designed for GE 90-70 series IC 697 programmable controllers and can be securely installed by simply installing 1 slot in the PLC rack. The software used by the IC697CMM741 Ethernet controller can be easily loaded or upgraded with RAM, and the controller can retain its software for at least six months after a power outage. The software it can use includes TCP/IP and MMS/OSI communication software, complete Windows and DOS programming and communication software, and software for full diagnostics and site management.

GE Series 90-70 IC697CMM741 Ethernet controllers and interfaces can be connected to the transceiver device via a user-supplied transceiver cable or an AUI (Connection Unit Interface) cable via its standard Type D connector with 15 pins. Cables and transceivers are how an Ethernet controller connects to an Ethernet LAN. The user can monitor the status of the controller interface through the controller's 3 leds. The RAM in the IC697CMM741 Ethernet controller uses batteries for backup, and the RAM stores all communication software. The controller and interface device also have ROM and firmware for storing the basic functions, configuration software, and diagnostic functions for their use.
