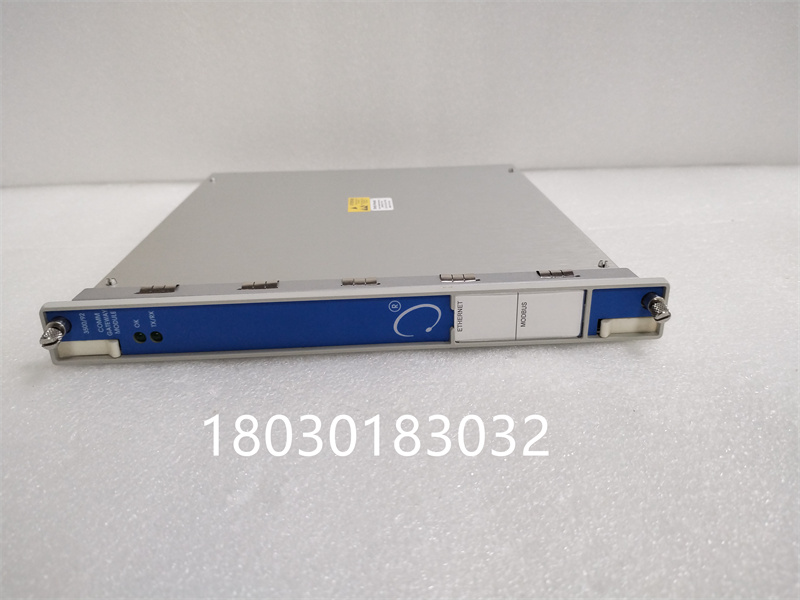

BENTLY 3500/93-03-01-00-00 模块

BENTLY 3500/93-03-01-00-00 module is a key component of the 3500 series mechanical protection and monitoring system produced by Bently Nevada (now part of Baker Hughes), mainly used for system display interface and data exchange. The following is a detailed introduction to the module:

1、 Product Overview

Brand and Model: BENTLY 3500/93-03-01-00-00

Series affiliation: 3500 series mechanical protection system

Functional positioning: As a system display interface module, it is responsible for transmitting monitoring data to external display devices (such as LCD displays, VGA displays, or system integrated PCs), while supporting integration with process control and other automation systems.

2、 Core functions

Data Communication and Integration

Supports Ethernet TCP/IP and serial communication (RS232/RS422/RS485), compatible with various industrial protocols, including:

Modicon Modbus (via serial communication)

Modbus/TCP (for TCP/IP Ethernet communication)

Bently Nevada protocol (communicating with 3500 framework configuration and data acquisition software package).

Connect to 10BASE-T star topology Ethernet network through RJ45 interface to achieve high-speed data transmission.

Display interface support

It can be connected to LCD display screens, VGA displays, or system integrated PCs to display real-time mechanical status monitoring data (such as vibration, displacement, temperature, etc.).

Support multi framework data integration for centralized monitoring and management.

Protocol configuration flexibility

Provide configurable Modbus register functionality, support seamless integration with third-party systems, and meet the needs of different industrial scenarios.

3、 Technical specifications

Communication protocol: Supports Modbus RTU/TCP and Bently Nevada specific protocols.

Interface type: RJ45 (Ethernet), RS232/RS422/RS485 (serial communication).

Environmental adaptability:

Working temperature: -30 ° C to+65 ° C (-22 ° F to+150 ° F).

Storage temperature: -40 ° C to+85 ° C (-40 ° F to+185 ° F).

Humidity: 95% (non condensing).

Compatibility: Fully compatible with 3500 series power modules, monitoring modules (such as 3500/42M, 3500/53, etc.).

4、 Application scenarios

Rotating machinery monitoring: widely used for vibration and displacement monitoring of key equipment such as steam turbines, compressors, and generators.

Industrial automation integration: Integrating monitoring data into DCS, PLC, or SCADA systems through Ethernet or serial communication to achieve remote monitoring and fault diagnosis.

Data Collection and Analysis: Supports use in conjunction with 3500 framework configuration software and data collection software to provide data support for predictive maintenance.

5、 Installation and maintenance precautions

Static protection: Wear an anti-static wristband during installation to avoid static electricity damaging the internal components of the module.

Cleaning operation: Before installation, use a brush and hair dryer to clean the dust inside the frame to ensure good contact.

Pin inspection: Confirm that all card pins in the frame are intact and not bent, to avoid poor contact after installation.

Alignment installation: During installation, align the upper and lower slots of the card and slowly push it into the pin position along the frame slot.
