1756-PA75 标准电源 安装在专用电源插槽上

1756-PA75标准电源安装在专用电源插槽上【产品详情】技术参数1756-PA75制造者罗克韦尔自动化零件号/目录号编号:1756-PA75机箱兼容性1756

联系人:Sunny

手机:18059884797

QQ:3095989363

邮箱:xiongbagk@gmail.com

产品详情

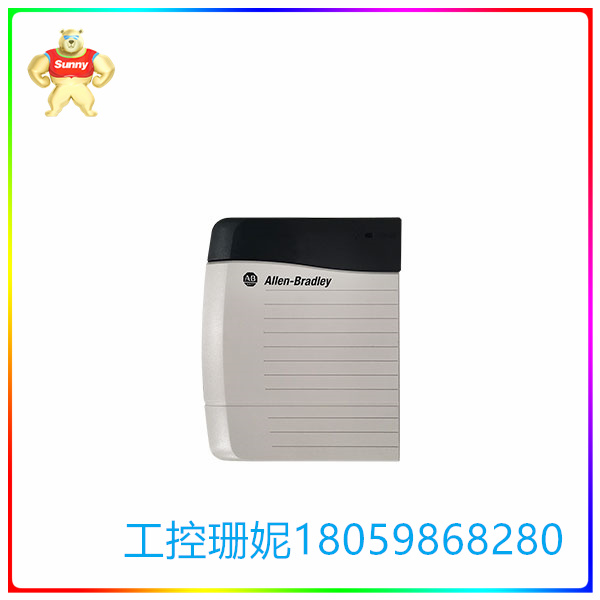

1756-PA75 标准电源 安装在专用电源插槽上




【产品详情】





技术参数 1756-PA75

制造者 罗克韦尔自动化

零件号/目录号 编号:1756-PA75

机箱兼容性 1756-A4/A、1756-A7/A、1756-A10/A、1756-A13/A、1756-A17/A、1756-A4/B、1756-A7/B、1756-A10/B、1756-A13/B、1756-A17/B、1756-A4/C、1756-A7/C、1756-A10/C、1756-A13/C、1756-A17/C

位置 1756 机箱左侧

保持时间 2 个周期 @ 85V AC,60 Hz 6 个周期 @ 120V AC,60 Hz 20 次循环 @ 220V AC,60 Hz

最大浪涌电流 30 安培

隔离电压 250 伏连续电压

输入电压范围 85-265伏交流电

Nom 输入电压 120/240伏交流电

联合国和平与合作委员会 32151706

品牌 艾伦-布拉德利

当前容量 3.3VDC 时为 4A;5.1VDC 时为 13 A,24VDC 时为 2.8 A

系列 ControlLogix

模块类型 标准直流电源

尺寸 14.0 x 11.2 x 14.5 厘米(5.51 x 4.41 x 5.71 英寸)

重量 0.95 千克(2.10 磅)

输入电压 120-220 伏交流电

电压范围 85-265 伏交流电

输入功率 100 瓦

输入频率 47-63 赫兹

功率输出 60 摄氏度时为 75 瓦

底盘 B轮

位置 机箱 - 左侧

工作温度 32-140华氏度(0-60摄氏度)

外壳 没有

刚果爱国者联盟 10612598206855


关于1756-PA75

1756-PA75 是 Allen-Bradley 标准电源。该模块安装在专用电源插槽上,位于任何 ControlLogix 机箱的最左侧。该电源的主要用途是提供必要的背板电源,供安装在机箱上的每个模块使用。该背板电源为模块通电,使其进入运行状态。


1756-PA75 必须提供外部电源才能运行。它兼容 85-264VAC 电压范围,频率为 47-63 Hz,标称输入电压为 120VAC / 240VAC。该电源在 0...+60 °C (+32...+140 °F) 下运行时的额定输出功率为 75 W,3.3VDC 时的电流容量为 4A;5.1VDC 时为 13 A,24VDC 时为 2.8 A。


1756-PA75 与各种 ControlLogix 机箱兼容,例如 1756-A4、1756-A7、1756-A10、1756-A13、1756-A17 和机箱系列,尤其是 B 系列和 C 系列。 如果 1756-PA75 的工作输入电源突然中断,该标准电源将提供 2 个周期的保持时间 @ 85V AC, 60 Hz 6 周期 @ 120V AC,60 Hz 20 周期 @ 220V AC,60 Hz。 此外,它还具有额定值为 250V(连续)、增强绝缘型、电源输入到背板型的隔离电压,在 3500V DC 下测试了 60 秒。 1756-PA75 需要硬件配置。




Allen-Bradley 1756-PA75 的 5.1V 电流容量为 13 A。该电源必须安装在 1756 机箱的左侧,并且它有一个不可更换的保险丝,旨在防止短路引起的火灾危险。1756-PA75 旨在用于污染等级 2 的工业环境和过多的 II 类应用(定义见 IEC 60664-1 出版物)。请注意,1756-PA75 电源可以在高达 2000 米的海拔高度运行而不会降额。




1756-PA75 标准电源 安装在专用电源插槽上



英文介绍





Technical parameters 1756-PA75

Manufacturer Rockwell Automation

Part Number/Catalog Number: 1756-PA75

Chassis compatibility 1756-A4/A, 1756-A7/A, 1756-A10/A, 1756-A13/A, 1756-A17/A, 1756-A4/B, 1756-A7/B, 1756-A10/B, 1756-A13/B, 1756-A17/B, 1756-A4/B C, 1756-A7/C, 1756-A10/C, 1756-A13/C, 1756-A17/C

Position 1756 Left side of the chassis

Holding time 2 cycles @ 85V AC, 60 Hz 6 cycles @ 120V AC, 60 Hz 20 cycles @ 220V AC, 60 Hz

Maximum surge current 30 amps

Isolation voltage 250 V continuous voltage

Input voltage range 85-265 volts AC

Nom Input voltage 120/240 volts AC

United Nations Peace and Cooperation Council 32151706

Brand Allen Bradley

4A when the current capacity is 3.3VDC; The value is 13 A for 5.1VDC and 2.8 A for 24VDC

Series ControlLogix

Module Type Standard DC power supply

Dimensions 14.0 x 11.2 x 14.5 cm (5.51 x 4.41 x 5.71 inches)

Weight 0.95 kg (2.10 lb)

Input voltage 120-220 volts AC

Voltage range 85-265 volts AC

Input power 100 watts

Input frequency 47-63 Hz

Power output is 75 watts at 60 degrees Celsius

Chassis B wheel

Location Chassis - Left side

Operating temperature 32-140 degrees Fahrenheit (0-60 degrees Celsius)

Shell no

Union of Congolese Patriots 10612598206855


About 1756-PA75

The 1756-PA75 is the standard Allen-Bradley power supply. This module is mounted on a dedicated power socket and is located on the far left side of any ControlLogix chassis. The main purpose of this power supply is to provide the necessary backplane power supply for each module installed in the chassis. The backplane power supply powers on the module to make it run.


The 1756-PA75 must be supplied with an external power supply to operate. It is compatible with the 85-264VAC voltage range, the frequency is 47-63 Hz, and the nominal input voltage is 120VAC / 240VAC. The power supply at 0... +60 °C (+32... Rated output power at +140 °F is 75 W, current capacity at 3.3VDC is 4A; The value is 13 A for 5.1VDC and 2.8 A for 24VDC.


The 1756-PA75 is compatible with various ControlLogix chassis, such as the 1756-A4, 1756-A7, 1756-A10, 1756-A13, 1756-A17 and chassis series, especially the B Series and C Series. If the 1756-PA75 working input power supply is suddenly interrupted, the standard power supply will provide a hold time of 2 cycles @ 85V AC, 60 Hz 6 cycles @ 120V AC, 60 Hz 20 cycles @ 220V AC, 60 Hz. In addition, it has a rated 250V (continuous), enhanced insulation type, power input-to-backplane type isolation voltage and was tested at 3500V DC for 60 seconds. 1756-PA75 Requires hardware configuration.




The Allen-Bradley 1756-PA75 has A 5.1V current capacity of 13 A. The power supply must be installed on the left side of the 1756 case, and it has a non-replaceable fuse designed to prevent fire hazards caused by short circuits. 1756-PA75 is intended for use in industrial environments with pollution level 2 and excessive Class II applications (as defined in IEC 60664-1 publication). Note that the 1756-PA75 power supply can operate at altitudes up to 2000 meters without derating.




1756-PA75 标准电源 安装在专用电源插槽上
